Plasma cutter with built-in air compressor 230V 40A

€458.57
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: S-plasma 40
Plasma cutter of the German leader in the welding market Stamos germany It is able to achieve Maximum cutting current 40 A. This will enable efficient processing of such materials such as steel, nickel, aluminum, copper and other electrical production metals thickness up to 10 mm. Thanks to this, the equipment will be used in many industries requiring precisely cut metal elements.
Built-in compressor It guarantees constant access to compressed air. The device also applied advanced technology Invter MOSFET. It allows you to achieve 93% of work efficiency. The solution used also guarantees Optimal electricity consumption and Low risk of burning Due to high voltage.
Product features:
  • - versatility - for cutting steels and other electrical drug metals (titanium, copper, brass, etc.)
  • - The functionality of - Built-in compressor providing constant access to compressed air
  • - Performance - Modern MOSFET technology provides work efficiency at 93% and precise and secure cutting,
  • - Simple service - a large knob allows you to precisely determine the cutting current, without having to remove the gloves,
  • - Easy transport - a comfortable handle, a small size and weight enable trouble-free transfer of the cutter as needed,
  • - Convenience - long 4-meter wires guarantee freedom of movement during cutting and facilitating work in hard-to-reach places,

Stamos devices were made according to strict European standards and passed tests for compliance with CE and RoHS. This guarantees a long service life and the high quality of the device.
Technical parameters:
  • - Model - S-plasma 40
  • - catalog number - 2210
  • - article - New
  • - Rated input voltage - 230 V
  • - Network frequency - 50 Hz
  • - cutting current - 20 - 40 A
  • - Rated entrance current - 16.4 a
  • - Maximum entrance current - 22.1 a
  • - Nominal input power - 5,08 kVA
  • - tension of idling - 230 V
  • - a rated work cycle - 60%
  • - cutting width - 1 mm
  • - Maximum cutting thickness - 10 mm
  • - Mass cable with terminal - 1.3 m
  • - Power cord - 1.9 m
  • - Plasma handle - 3.7 m
  • - CNC - Not
  • - water cooling - Not
  • - Instructions - So
  • - Dimensions (DXSXW) - 42.5 x 20.5 x 54.5 cm
  • - weight - 21.6 kg
  • - Dimensions of shipment (DXSXW) - 55 x 30 x 59 cm
  • - shipping weight - 28.5 kg

Working method:
  • Plasma cutting - Thanks to the current to 40 A, the device seamlessly completely completely such metals as, iron, stainless steel, cast iron, copper or aluminum. The gas pressure is regulated in stepless, which allows precise control of the plasma stream. Impersoning the material, a small amount of distortion and a smooth cutting slot is part of the advantages resulting from the use of a multifunctional device Stamos Germany.

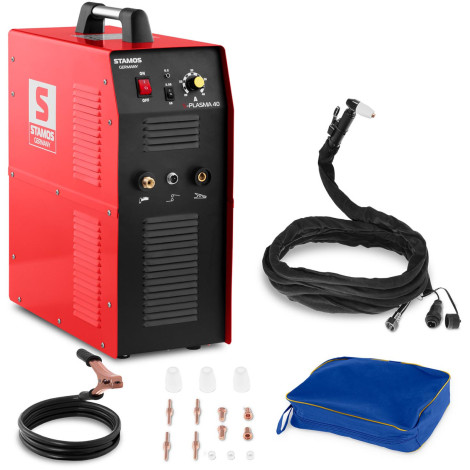

Included:
  • - cutter
  • - tool bag
  • - Mass cable with terminal
  • - Plasma holder
  • - Consumables
  • - EN statement
1005926
26 Items

Data sheet

Kod producenta
1005926
