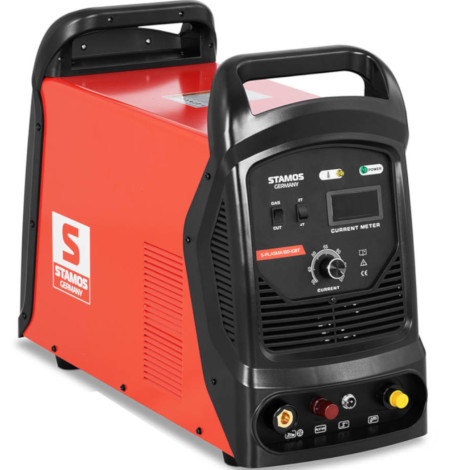

Plasma cutter with IGBT 2T 4T 400 V 30-100 ALS

Manufacturer's code: 10021225

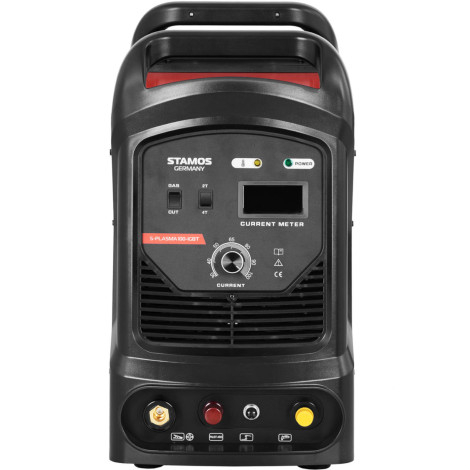

Brand Plasma Slicer Stamos Germany It will work in automotive workshops, companies dealing with metal processing, as well as among the DIY. Perfectly deal with unhelped, low-alloy steel. Suitable for machining nickel, copper, titanium, zirconium, as well as their alloys. Modern IGBT technology Provides excellent cutting capacity. A three-hole power guide It acts as an electronic switch that has a high efficiency, fast switching and low failure rate. Pilot arch Facilitates the ignition and gas outflow after cutting, protecting the material from oxidation. Two work modes 2T and 4T They allow you to adapt the machine to continuous or point operation. Compact size And a small weight allows a convenient transport of the cutter. The current is set to field 30-100 A. Intuitive control panel With the LCD screen, it allows you to control the operating parameters. Included Pressure regulator Adjusts the pressure of compressed air to the welding current, which allows you to adjust the device to the type of material or cutting. Depending on your needs, you can connect air compressors with different performance. The compressors will work for smaller tasks, a compressor with greater efficiency will be presented to the complicated and long cutting. This allows you to avoid pressure drop.
Product features:

• - modern IGBT inverter and pilot arch,
• - maximum cutting current 100 A and 100% operating cycle at 63 A,
• - Control panel with LCD display and knob,
• - cut without deformation up to 35 mm thick thanks to the pilot arch,
• - Easy change between work 2 and 4 - tact.

Technical parameters:

• - Model - S-Plasma 100-IGBT
• - catalog number -10021225
• - article - New
• - Tension [V] - 400
• - ignition Plasma - Pilot arch
• - efficiency (in rated conditions) [%] - 85
• - Cooling housing - Air cooling
• - Plasma cable [m] - 5
• - Cycle of work [%] - 40
• - Max cutting current [A] - 100
• - Min. Cutting current [A] - 30
• - Power cord [m] - 4
• - Nominal input power [kVA] - 5,3
• - mass cable [m] - 3
• - Power factor - 0,93
• - Gas outflow time after welding [s] - 10
• - Maximum entry power [kVA] - 8,4
• - Insulation class - F
• - Maximum entrance current [A] - 22
• - IP protection degree - Ip21s
• - Rated entrance current [A] - 22
• - Max cutting thickness [mm] - 35
• - tension of idling [V] - 269
• - Welding current in a 60% work cycle [A] - 82
• - Welding current in the 100% work cycle [A] - 63
• - CNC - Not
• - water cooling - Not

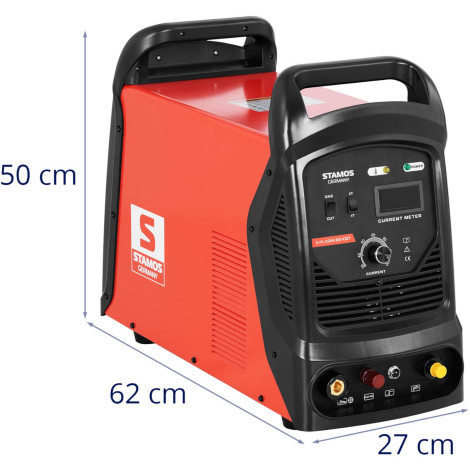

• - Dimensions (DXSXW) [cm] - 62 x 27 x 50
• - weight [kg] - 27,3
• - Dimensions of shipment (DXSXW) [cm] - 75.5 x 42 x 58
• - shipping weight [kg] - 34,5

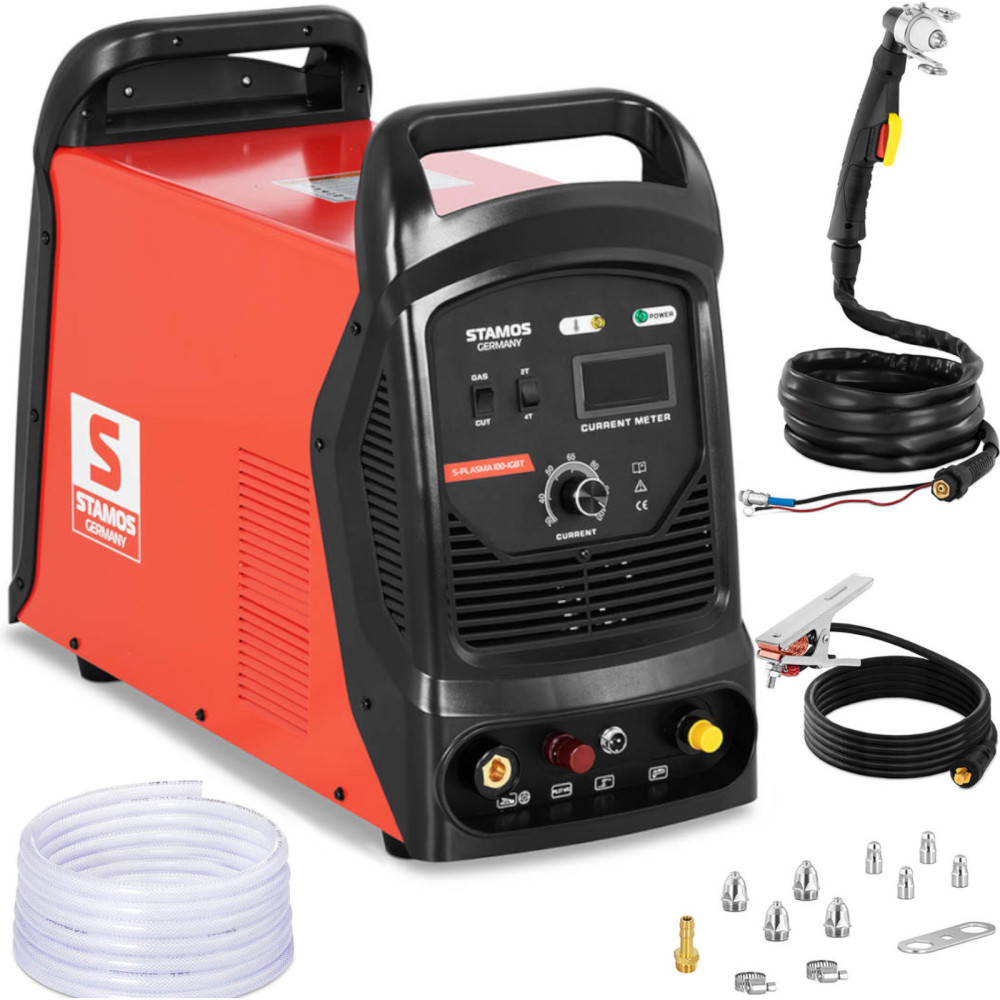

Included:

• - plasma cutter
• - 4 m power cord, 4 x 4
• - BlackWolf P80 burner 5 m, 10 mm2

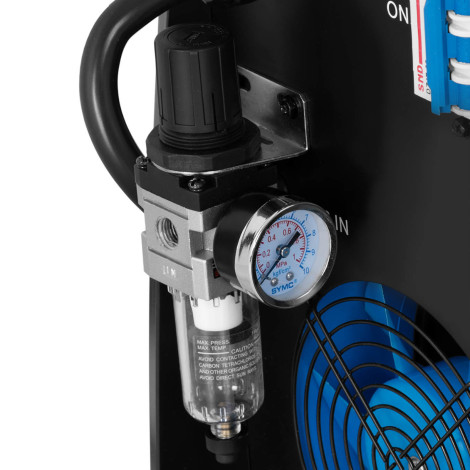

• - Pressure regulator
• - Cable terminals - 2 pcs.
• - gas cable Ø8 x 12 mm x 4 m
• - mass cable 300 a, 3 m, 16 mm2
• - 1.3 mm tips - 4 pcs
• - 21.2 mm nozzles - 4 pcs.
