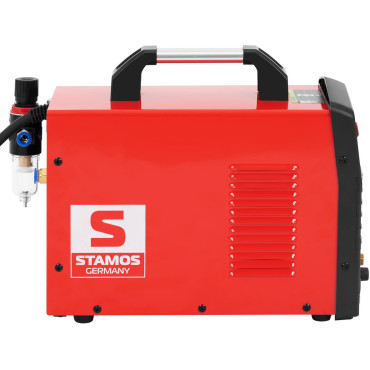

IGBT Plasma Cutter 100% Ignition HF 230V 50A

Manufacturer's code: 10021417
Brand Plasma Slicer Stamos Germany It will work for plasma cutting in car workshops, commercial companies dealing in metal processing and in industrial production. In addition, the plasma cutter also supports DIY in demanding repair and repair projects. Transparent control panel with LED screen And the manometer informs about the set parameters. The plasma cutting current is set to from 20 to 50 and using the knob. All values are shown on a clean LED display. With maximum power values, the plasma cutter cuts elements with a thickness up to 15 mm. The air pressure can be checked using a controller equipped with a lock. This will prevent accidental change in the compressed air pressure. You can read the current value on an integrated manometer. Thanks to the optimally chosen combination of air and current pressure, you will get pure incisions with a high precision. IGBT inverter not only provides high-power voltage output due to PWM technology, but also reduces the weight and dimensions to a minimum. The burner is lit by means of high frequency, thanks to which you can release grates and pilot arc. To avoid oxidation or deformation of the workpiece after cutting, select the gas outflow time 5 or 10 s. The air outflow additionally cools the burner and prevents its damage. The basic unit is equipped with a powerful fan that prevents overheating.
Product features:

• - maximum cutting current 50 A and 100% work cycle,

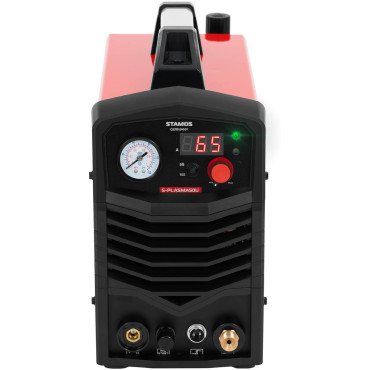

• - Control panel with LED display, manometer and knob,
• - modern IGBT inverter and Ignition HF,
• - fast, non-distributing cutting to materials up to 15 mm thick,
• - Compact dimensions and handle for carrying.

Technical parameters:

• - catalog number - 10021417
• - article - New
• - Model - SEC-plasma50u
• - Material - ABS, steel
• - Air operating pressure [bar] - 4-6
• - Integrated compressor - Not
• - Cooling - Fan
• - Compressor parameters - > 0.25 m³
• - cutting width [mm] - ≤15
• - efficiency [%] - 90
• - grounding wire [m] - 2
• - Insulation class - F
• - IP protection degree - Ip21s
• - Maximum cutting current [A] - 50
• - Gas outflow time [s] - 5/10
• - Maximum cutting thickness [mm] - 15
• - Maximum entrance current [A] - 38
• - Maximum entrance current [A] - 10,3
• - Power cord [m] - 2
• - Power factor - 0,9
• - Tension [V] - 230
• - Minimal cutting current [A] - 20
• - ignition Plasma - Hf
• - Open circuit voltage [V] - 240
• - Cycle of work [%] - 100
• - Real input voltage [A] - 21
• - Dimensions (DXSXW) - 40 x 30 x 16 cm
• - weight - 8.6 kg
• - Dimensions of shipment (DXSXW) - 46 x 38 x 28 cm
• - shipping weight - 9.8 kg

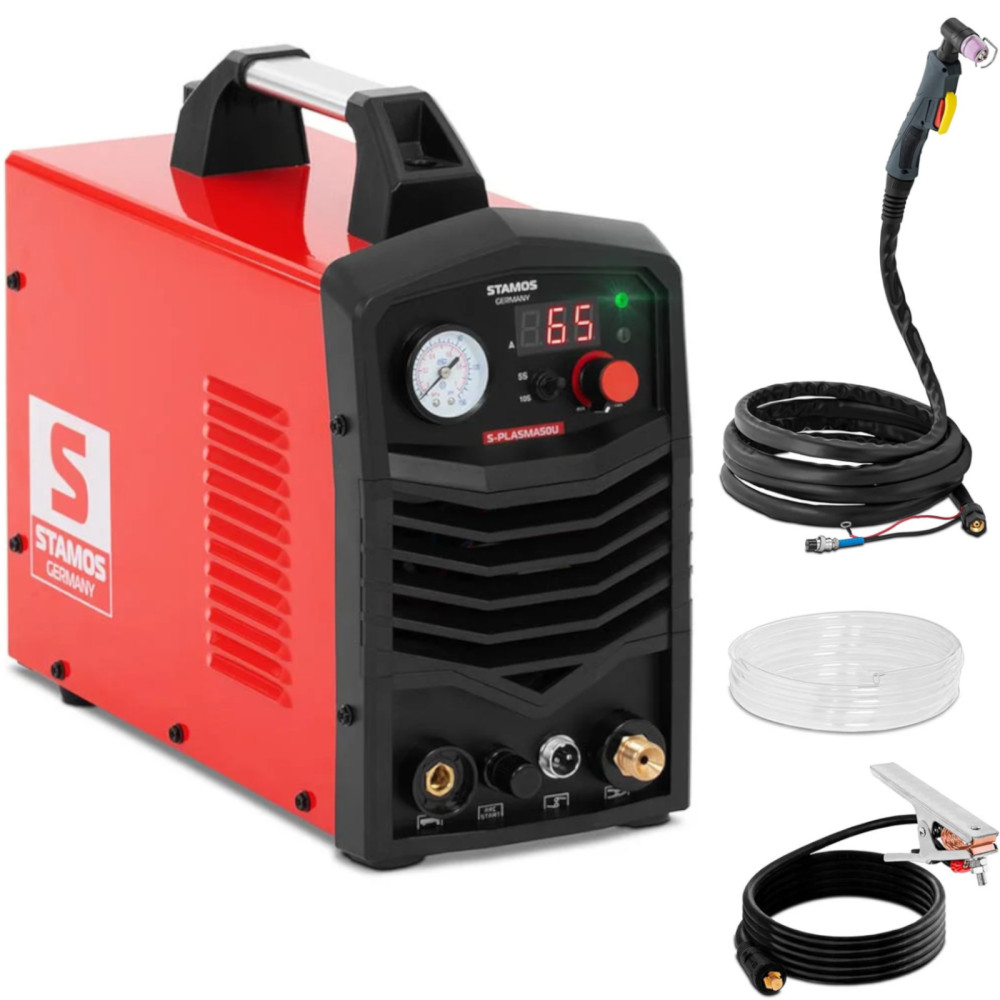

Included:

• - plasma cutter

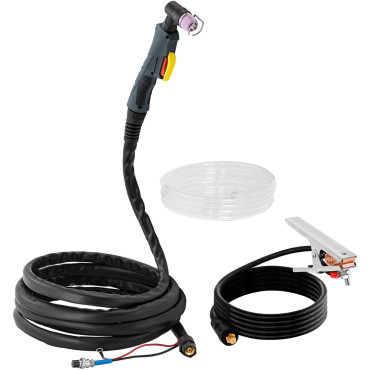

• - AG60 burner with a wiring harness (4 m)
• - Earthing clamp (2 m)

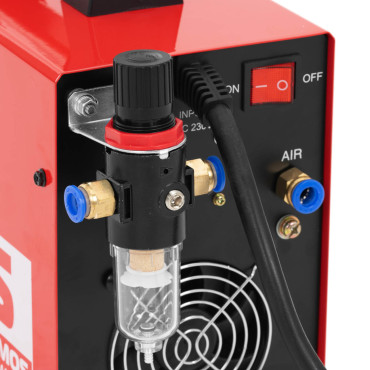

• - Pressure reducer
