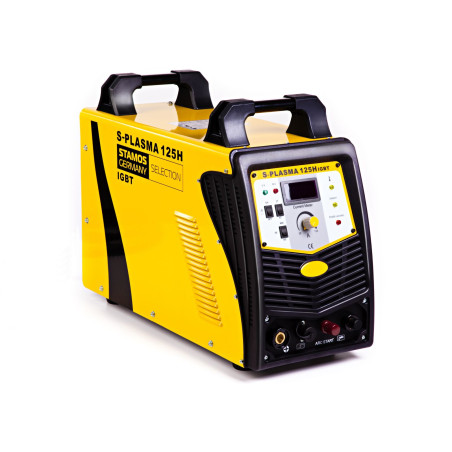

Plasma cutter S-PLASMA 125H SELECTION 125A

Manufacturer name: S-plasma 125h
Plasma cutter of the German leader in the welding market Stamos germany It is able to achieve Maximum cutting current 125 A. This will enable efficient processing of such materials such as steel, nickel, aluminum, copper and other electrical medicines. Thanks to this, the equipment will be used in many industries requiring precisely cut metal elements.
The device was used advanced technology IGBT. It uses special bipolar transistors with an insulated gate that provide reliability. Fast switching of parameters and Low risk of breaking It is guaranteed by a three-phase semiconductor element. IGBT also affects the small size of the device, while maintaining high parameters.
Product features:

• - functionality - for cutting steels and other electrical drug metals (titanium, copper, brass, etc.)
• - Performance - Modern IGBT technology and the contactless arc ignition ensure smooth and stable work,
• - Simple service - a large knob and switches allow you to precisely determine the operating parameters without having to remove the gloves,
• - Readability - the LED display presents the current of the current even in dark rooms, and the diodes indicate too much voltage or a drop in air pressure,
• - Easy transport - a comfortable handle, a small size and weight enable trouble-free transfer of the cutter as needed,
• - Convenience - Long 5 and 4-meter wires guarantee freedom of movement during cutting and facilitating work in hard-to-reach places,
• - Safety - a special overheating protection system and a built-in fan that guarantees heat dissipation,

Stamos devices were made according to strict European standards and passed tests for compliance with CE and RoHS. This guarantees a long service life and the high quality of the device.
Technical parameters:

• - Model - S-plasma 125h
• - catalog number - 2067
• - article - New
• - Rated input voltage - 400 V, 3-phase
• - Network frequency - 50/60 Hz
• - Rated entrance current - 22 a
• - Maximum entrance current - 31
• - Nominal input power - 15.4 kVA
• - Maximum entry power - 21.8 kVA
• - tension of idling - 300 V
• - cutting current - 10 - 125 A
• - a rated work cycle - 60%
• - Cutting current in the 100% work cycle - 96.8 a
• - Cutting current in the work cycle 60% - 125 a
• - Gas Post-Flow Time - 2, 10, 60 s
• - Cooling housing - Fan
• - Cooling the handle - Air
• - Length of the mass cable - 3 m
• - length of the plasma handle - 5 m
• - The length of the air hose - 4 m
• - length of the power cord - 3.8 m
• - Maximum thickness of cut material - 34 mm
• - cutting width - 1.4 mm
• - Required airflow - 250 l / min
• - air pressure - 7 bar
• - Insulation class - F
• - Degree of protection - Ip21s
• - construction consistent with - EN 60974-1 EN 60974-10
• - Compliance with EG - Sun
• - Dimensions (DXSXW) - 63.5 x 27 x 40 cm
• - weight - 33.9 kg
• - Dimensions of shipment (DXSXW) - 74 x 38 x 52 cm
• - shipping weight - 34.8 kg

Working methods:

• Plasma cutting - Thanks to the current to 125 A, the device seamlessly completely completely such metals as, iron, stainless steel, cast iron, copper or aluminum. The air pressure is regulated without significantly, which allows precise control of the plasma stream. Impersoning the material, a small amount of distortion and a smooth cutting slot is part of the advantages resulting from the use of a multifunctional device Stamos Germany.

Device functions:

• - 2t / 4t, i.e., two-fold and four-fold. When using the first of them, pressing the button will result in cutting initiating, and the release interrupts this process. In the case of a four-fold, the user does not have to hold the buttons constantly, because pressing and releasing the button starts or ends,
• - non-contact plasma arc allows you to start cutting without contact with the workpiece, which reduces the consumption of operating parts and improves work efficiency,
• - Gas Post-Flow Time, i.e. adjusting the gas outflow. Counteracts the oxidation of the weld,

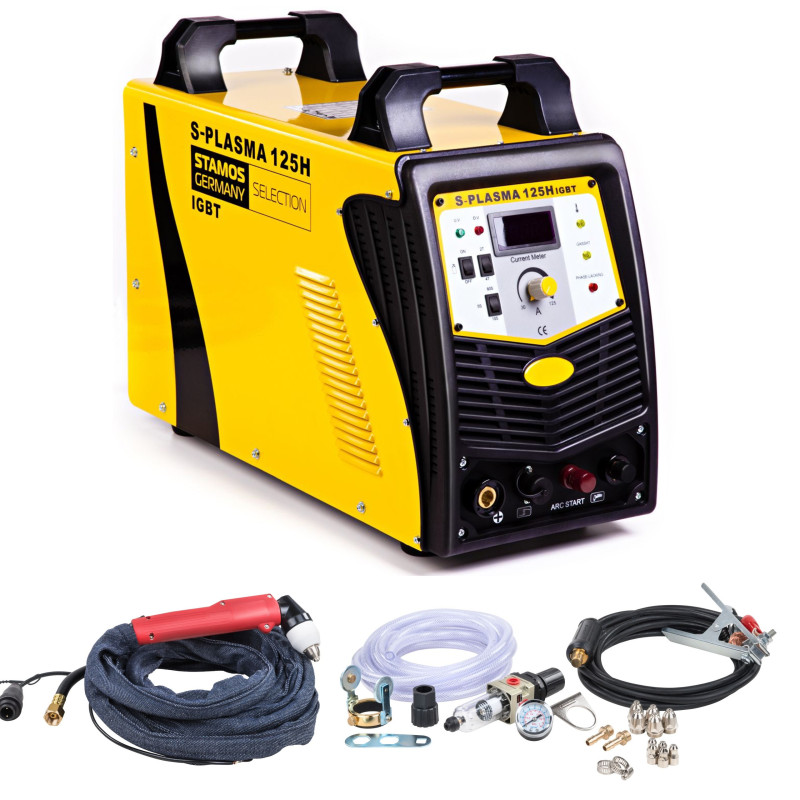

Included:

• - plasma cutter

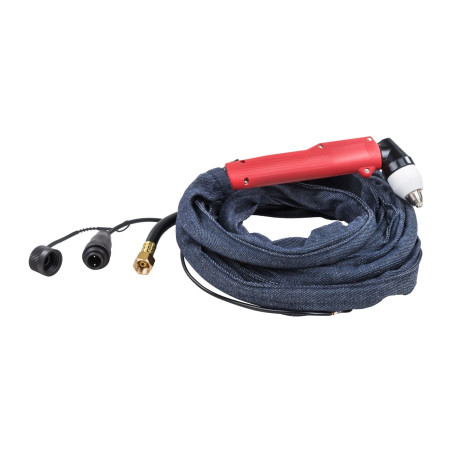

• - plasma handle with a wire - 5 m
• - Consumables of plasma holder
• - Mass cable with terminal - 4 m
• - Air cord - 4 m
• - Pressure reducer
• - Manometer
• - EN statement
