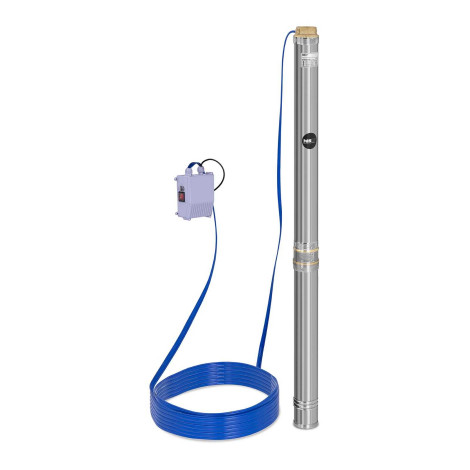

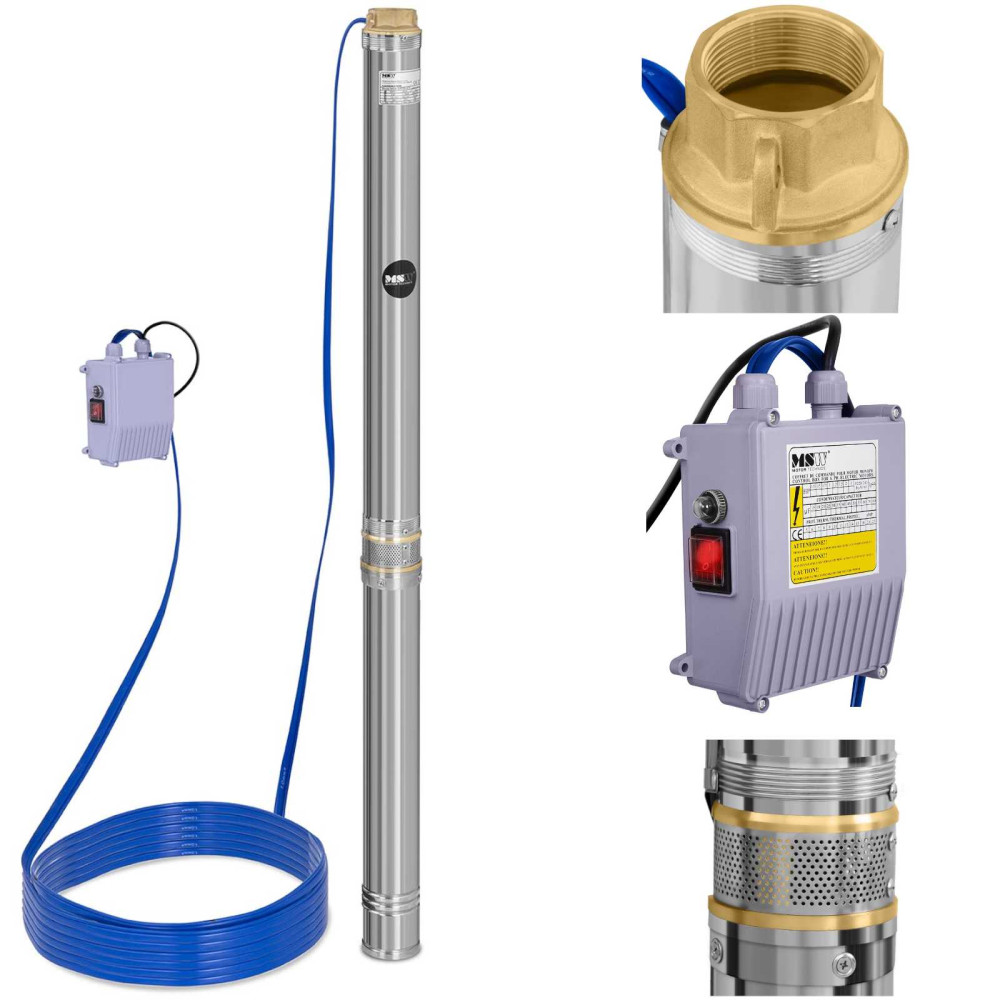

Submersible pump for deep well MSW 10800 l / hour up to 96 m

€279.40
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: 10060174
Efficient depth of depth MSW 2200 W It will allow you to efficiently pumping water to the surface. The engine is able to achieve Speed 2850 rpm, which guarantees flow 10800​​​​​​ Lires per hour. The maximum lifting height of the water column is 96 mThanks to which the device is adapted to work in deep-sea wells.
The pump is hermetically closed, which allows you to protect the elements inside the pump before moisture. In addition, the housing was made stainless steelwhich is resistant to corrosion and mechanical damage.

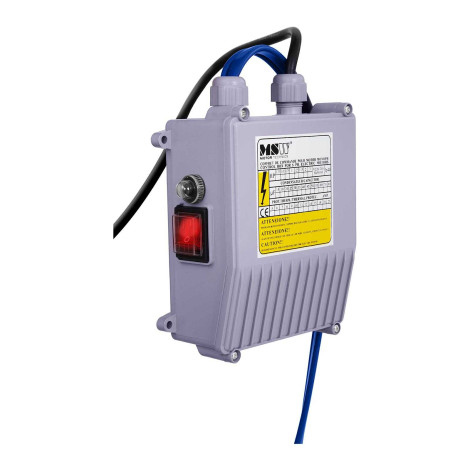

It is responsible for easy operation areControl scale equipped with a overcurrent switch. It prevents any device damage to the voltage jumping. Long 20-meter power cord Provide convenient transfer of the device as needed.
Product features:
  • - The functionality of - efficient water pumping from the well on a maximum height of 96 m,
  • - Performance - 2200 W motor in to ensure flow 108000 L / H,
  • - Simple service - an uncomplicated controller,
  • - Convenient use - 20-meter power cord,
  • - Durability - Housing made of stainless steel.

Technical parameters:
  • - Model - MSW-Spp48-220
  • - catalog number - 10060174
  • - article - New
  • - housing material - Stainless steel
  • - Rated power - 2200w
  • - Working power - 3000w
  • - tension - 230 V / 50 Hz
  • - rated current - 14
  • - Max. Lift height of the water column - 96 m
  • - Max. Flow - 10800 l / h
  • - Speed - 2850 rpm
  • - Protection class - And
  • - IP protection degree - Ip68
  • - Insulation class - Breakfast
  • - Operating mode - S1
  • - Number of degrees - 14
  • - Diameter of the mounting hole - 95 mm

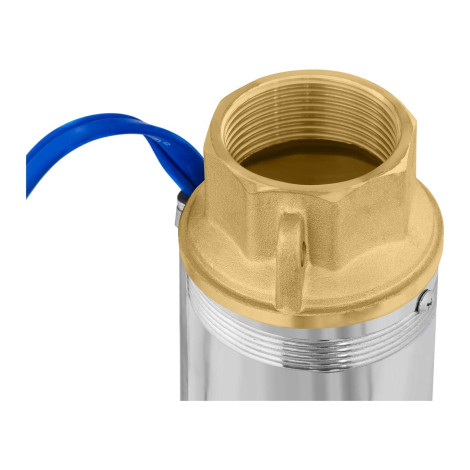

  • - water connection size - 2 # 8221
  • - max. Sand content in water - 0,25%
  • - Max. Pumped water temperature - 35deg c
  • - Mak. Number of starts per hour - 50
  • - Dimensions (DXSXW) - 10 x 9 x 135.6 cm
  • - weight - 25.15 kg
  • - Dimensions of shipment (DXSXW) - 173 x 12 x 22.5 cm
  • - shipping weight - 28 kg

Included:
  • - immersion pump
