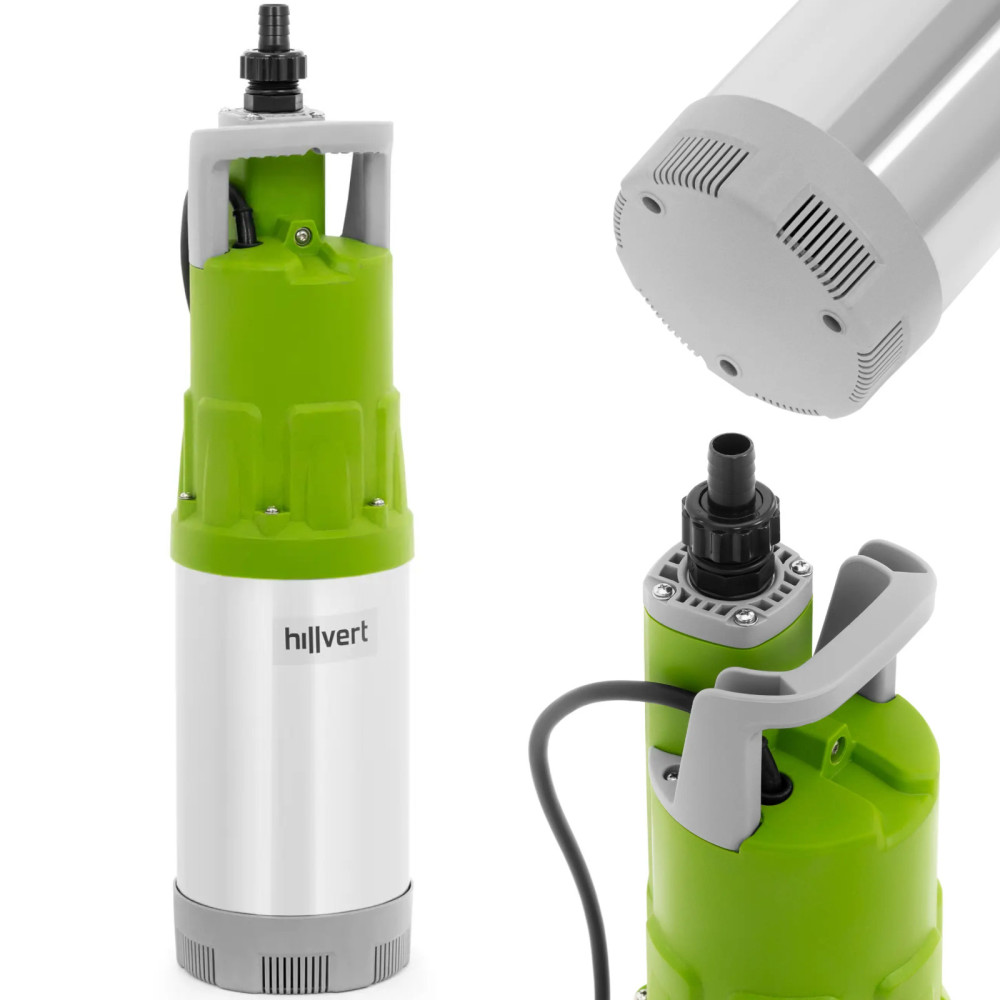

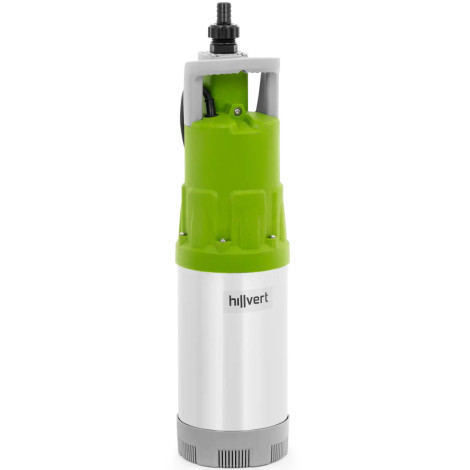

Submersible submersible pump 100 l / min 1100 in to 12 m

Manufacturer's code: 10090564
Mark's immersion pump Hillvert It allows you to quickly pump clean water from deep wells or tanks and pour the plants, fill the joints or buy a household. This efficient pump is also suitable for commercial applications, for example for pumping cooling water or water to fire-fighting systems. The compact pump construction ensures high performance. Thanks to the fact that it is immersed, it provides water efficiently and requires less energy than other types of pumps. In addition, it impresses with a simple installation and quiet and unmitrant operation without maintenance. Efficient, hermetically closed engine works with 1100 in. Allows you to pump up to 100 l / min. The pumping depth is 12 m. The most important feature of the pump is Integrated Pressure Control Switch. This increases the comfort of service, system protection and energy efficiency and ensures reliable operation. It cares about a constant pressure and protects the pump against dry work. It also checks the pressure on the system and turns on or off the pump depending on the selected setting. The pump is extremely solidly made from stainless steel, copper and plasticMeets the highest requirements. Thanks to immersion, liquids are pumped faster and cheaper because you need less energy to suck out for pure water. The 15 m power cord allows you to set the pump into the water in a very flexible way. The device has a standard connection, for many different nozzles. The connectors are available in standard sizes, making it easy to connect the device to various hydraulic installations, garden hoses, irrigation and other water distribution systems.
Product features:

• - high pump capacity 100 l / min and strong engine 1100 W,
• - closed system made of stainless steel, copper and plastic,
• - overload protection,
• - standard water connection connection with various nozzles using the adapter,
• - The integrated pressure switch activates the pump depending on the water level.

Technical parameters:

• - catalog number - 10090564
• - article - New
• - Model - Ht-GPS-007
• - frequency [Hz] - 50
• - Material - ABS, stainless steel, copper
• - Tension [V] - 230
• - Cable specification - H07RN-F 3G 1.0 mm²
• - IP protection degree - Ipx8
• - Action time - 30s
• - Protection class - And
• - water connection diameter - 1 "
• - Power cord - 15 m
• - Maximum flow - 100 l / min
• - Rated power - 1100 W
• - Inlet diameter - 30.3 mm
• - Maximum suction depth - 12 m
• - Maximum pumping height - 45 m
• - Maximum working pressure - 4.5 bar
• - Departure diameter - 30.3 mm
• - maximum water temperature - 35 DEG C
• - Maximum particle size - 1 mm
• - the lowest level of pump suction [mm] - 50
• - the lowest level of switching on the pump [mm] - 60
• - Dimensions (DXSXW) - 16.5 x 15.8 x 56.8 cm
• - weight - 11.27 kg
• - Dimensions of shipment (DXSXW) - 62 x 25 x 22.5 cm
• - shipping weight - 12.22 kg

Included:

• - immersion pump
• - 15 m wire
