CNC milling machine for metal plastic 43 x 39 cm 500 w

€782.23
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code:

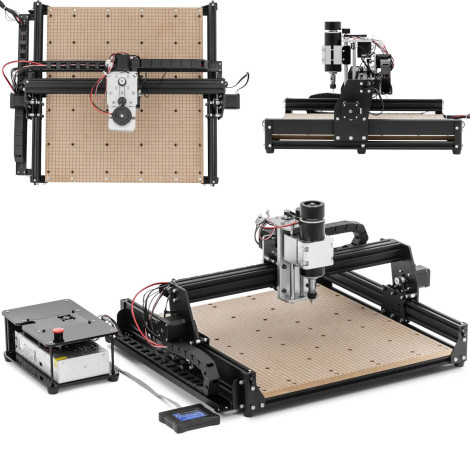

CNC milling machine Steinberg Systems It allows you to design promotional articles, ornaments or signs. A strong stepper motor will safely lead spindle through a wide range of materials such as wood, plastic, metal, leather, acrylic and many more. It is also suitable for large motives that will quickly and safely heat in the selected material. For milling Candle software or other BRBL-based. It allows you to prepare and control the theme or font. The milling head moves the graphic to the surface from Accuracy to 0.01 mm. The device achieves impressive speed 12 m / min. Quickly and precisely creates even large motifs with a work surface up to 43 x 39 cm. Moving head It is maintained by solid aluminum frame And safely carried out over the material. This allows you to implement even complex projects without impression. For safety, the machine has Emergency switch. With the instructions and assembly accessories, a CNC milling machine can be folded in a few moments.
Product features:
  • - a three-axial design reaches 12 m / min speed and ensures accuracy of 0.01 mm,
  • - CNC engraving can be handled using a reliable GrBL software for Windows XP / 7/8/10,
  • - Allows you to work on a large working surface 43 x 39 cm.
  • - The emergency switch guarantees safe and reliable operation with a CNC milling machine
  • - The CNC engraving optimally processes various materials, eg wood, stainless steel, acrylic, skin, plexiglass, aluminum, brass and many more.

Technical parameters:
  • - catalog number - 10031291
  • - article - New
  • - Model - SBS-Lem-500ctr
  • - Material - Aluminum
  • - Color - Black
  • - Software - Candle / Grbl-Software
  • - Speed [m/min] - 12
  • - Accuracy - 0.01 mm
  • - power [W] - 500
  • - Voltage / Ampery output - 48 V / 10,4 A
  • - engine type - Stepper motor 42 x 48 mm
  • - Input voltage [V] - 115 - 240
  • - Working surface [cm] - 43 x 39
  • - Power cord - 1.2 m
  • - Dimensions (DXSXW) - 68 x 64.5 x 37.5 cm
  • - weight - 12.5 kg
  • - Dimensions of shipment (DXSXW) - 69 x 57.5 x 25.5 cm
  • - shipping weight - 15.4 kg

Included:
  • - CNC milling machine
  • - Mounting accessories
  • - Mounting tools
  • - basis
  • - Control box and cable guide
  • - Aluminum profile in the X axis
  • - Spindle engine
  • - 4 mounting plates for cable guide
  • - USB cable
  • - USB memory with software

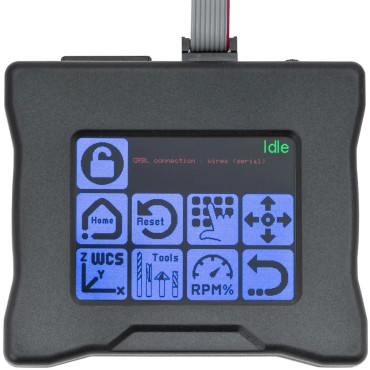

  • - offline control panel
