Manufacturer's code:
10062826Exceptionally flat hydraulic hydraulic actuator MSW With only 106 mm height and a piston stroke 50 mm is an ideal solution for working under limited conditions.
The hydraulic cylinder offers an impressive load capacity: a piston with a diameter of 50 mm will force 20 t. The hydraulic actuator of one-sided action will precisely raise and withdraw the piston with a working pressure of up to 700 bar, which makes it extremely versatile. It will work in construction, industry or other demanding tasks.
A strong manual pump with a large 400 ml oil tank is ideal for intensive use. Thanks to the two-stage, rapid oil supply, the pump will effectively increase the cylinder and provide smooth operation with other hydraulic tools.
3/8 '' (NPT) connector for a quick and secure connection will allow various hydraulic equipment. This will limit this downtime and simplify integration with existing hydraulic systems.
The high-quality steel pump has a protective coating. It corresponds to excellent resistance to wear and corrosion even in demanding conditions. The hydraulic actuator is also equipped with two gaskets that provide additional safety and durability - ideal for intense high-pressure uses.
Product features: - - an extremely flat hydraulic actuator with a height of only 106 mm and a 50 mm stroke is ideal for operation in tight places,
- - hydraulic cylinder capacity 20 t on a piston with a diameter of 50 mm,
- - hydraulic actuator of one-sided action up to 700 bar to many tasks,
- - hydraulic piston has a corrosion-resistant surface that protects against environmental influences and extends life,

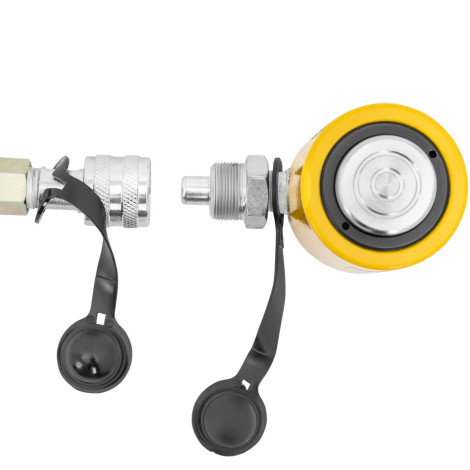

- - fast and secure installation of the hydraulic actuator thanks to 3/8 "(NPT) threaded connector,
- - Thanks to a strong hand pump with a large oil tank with a capacity of 400 ml to heavy tasks.
Technical parameters: - - catalog number - 10062826
- - article - New
- - Model - MSW-Hjs-set1
- - Material - Alloy steel, powder coated steel
- - Color - Yellow
- - load - 10 t
- - jump height [mm] - 50
- - head diameter [mm] - 38 mm
- - connector type - 3/8 '' NPT
- - Working surface [cm] - 15,9
- - oil tank capacity - 90 ml
- - stroke - 50 mm
- - Maximum working pressure - 700 bar
- - Cylinder height - 104 mm
- - pressure cord length - 0.8 m
- - Dimensions (DXSXW) - 40 x 20 x 15.5 cm
- - weight - 6.2 kg
- - Dimensions of shipment (DXSXW) - 38 x 23 x 17 cm
- - shipping weight - 7.1 kg

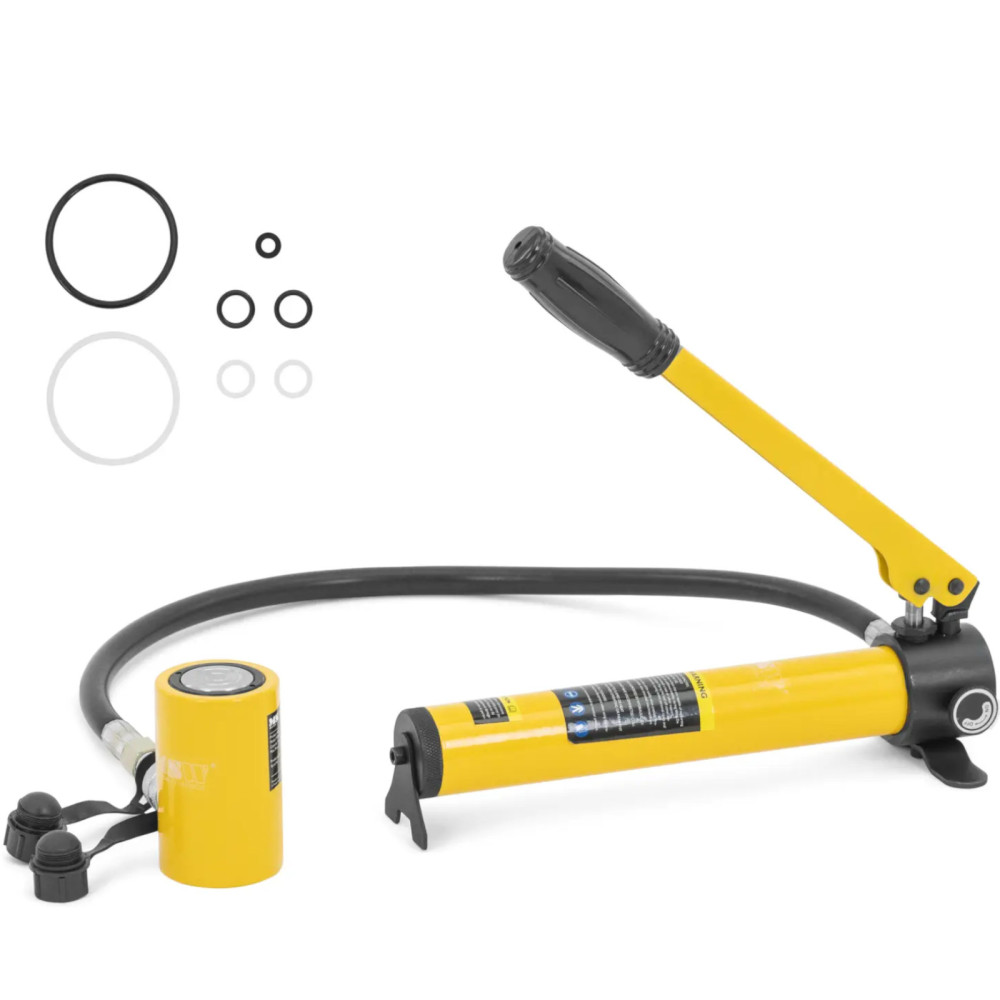

Included: - - hydraulic cylinder with hydraulic pump
- - 2 gaskets
