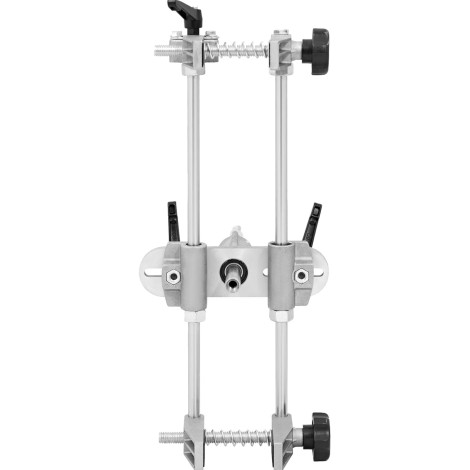

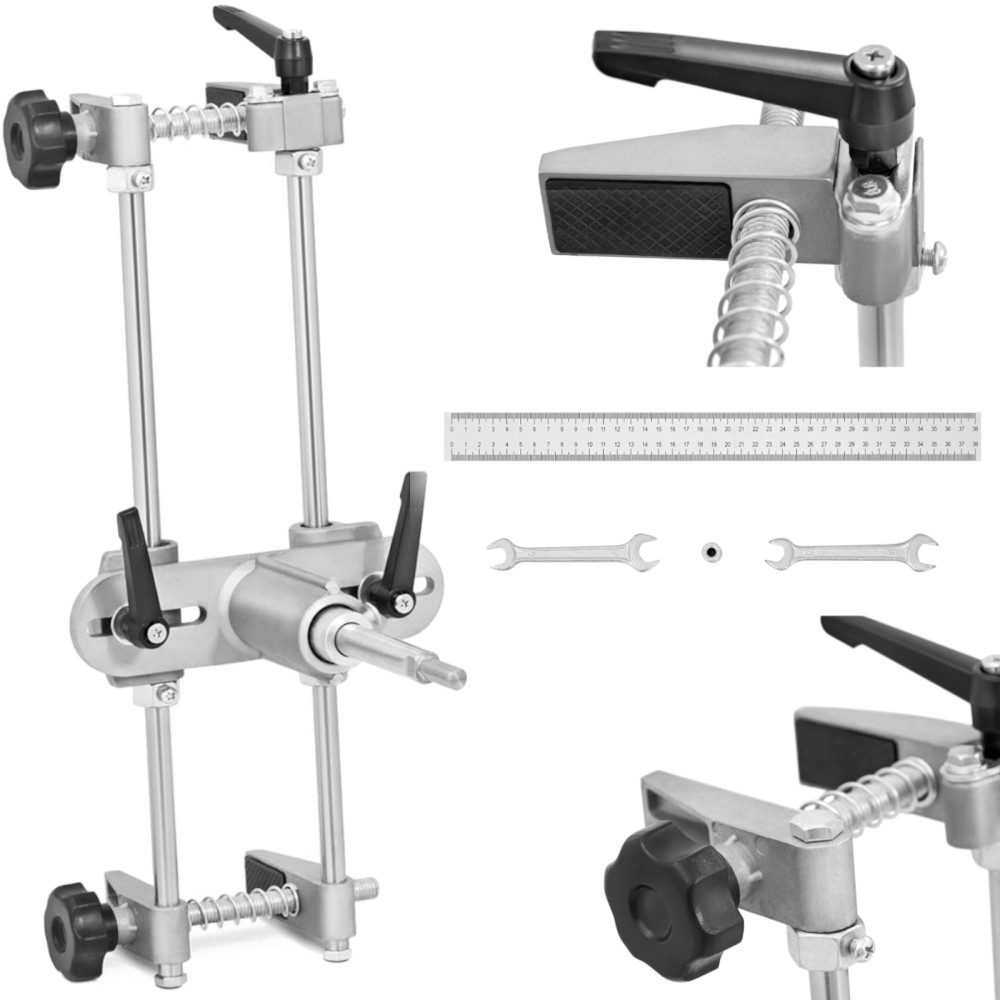

Leader Milling Milling Machine Drill Bit 18/22/24 mm to 130 mm

Manufacturer's code: 10061896
Brand door debtor MSW It will allow the openings to escape the holes under the locks. A large span and attached drill heads allow the universal use of equipment. The construction of the device was made of steel. It can be easily attached to the door with an easy way hand-held screws. High span 35-100 mm and 3 different cutters (18/22/24 mm) They allow universal application. For use with a 10 mm handle drill. The maximum milling depth is 130 mm.
Product features:

• - milling equal recesses thanks to solidly embedded sliding rails and durable blades,
• - made of durable steel,
• - intuitive operation also suitable for beginners,
• - for standard battery drills and drills,
• - A set with 3 heads adapted to the door of different thicknesses.

Technical parameters:

• - Model - MSW-Mor1
• - catalog number - 10061896
• - article - New
• - cutter size [mm] - 18/22/24
• - handle diameter [mm] - 10
• - terminal width [mm] - 35-100
• - Material - Steel
• - Max. Diggering depth [mm] - 130
• - hardness of the blade [HRC] - YG8, HRA89

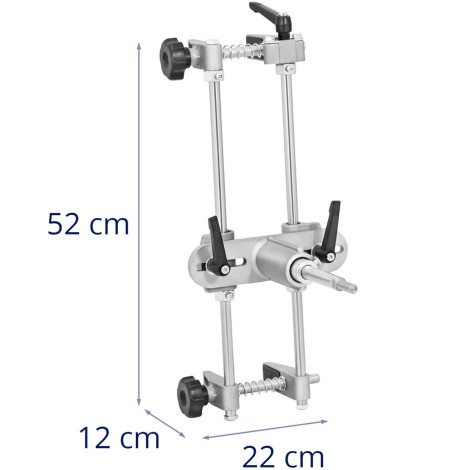

• - Dimensions (DXSXW) [cm] - 52 x 22 x 12
• - weight [kg] - 2,9
• - Dimensions of shipment (DXSXW) [cm] - 53 x 23 x 13
• - shipping weight [kg] - 4,36

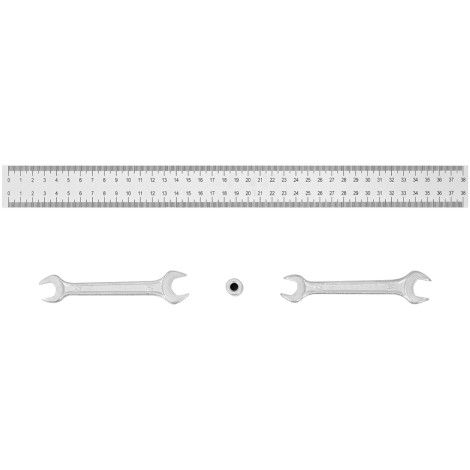

Included:

• - Locking charts
• - 2 keys (12/14 mm)
• - 3 Drill heads (18/22/24 mm)
• - Ruler
• - User manual
