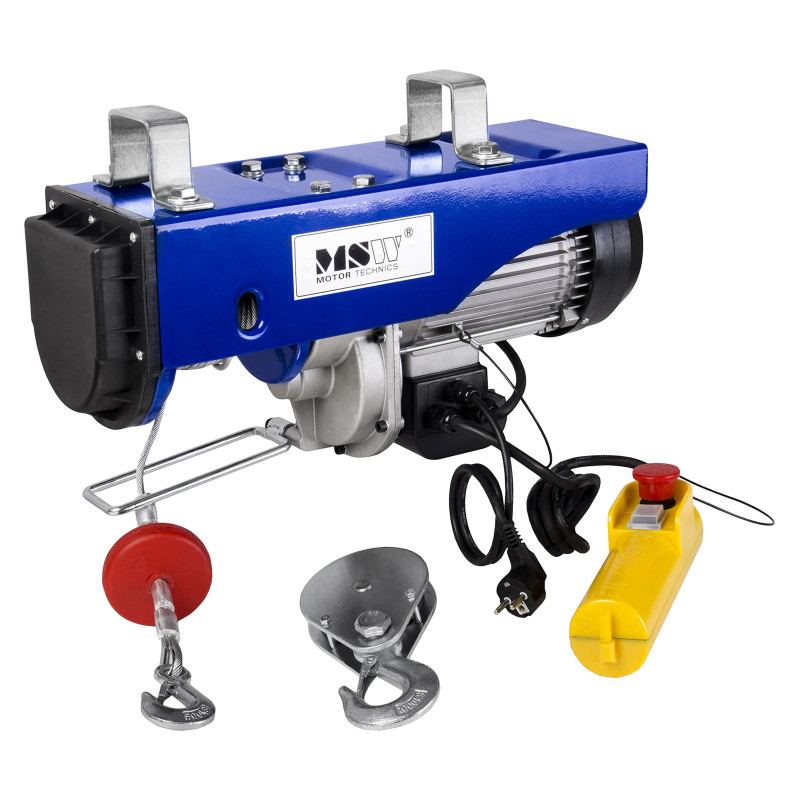

Cable winch PROLIFTOR 1000 for 990kg

Manufacturer name: MSW Proliftor 1000

Professional cable winch with electric motor of the German manufacturer MSW. Warehouse crane is characterized by a durable design, excellent parameters, ease of assembly and operation and safety of use. The device is made of durable steel, powder coated. The engine body is made of pressure-pressed aluminum.
A modern winch engine is equipped with a magnetic mechanism with a stop function enabling immediate browsing of the winch, which guarantees safety and precise and reliable service. The winch can be mounted to a swing arm or to a supporting structure of a hall and a warehouse. Two steel clamps are used to attach the device that are included in the device set.
Rope rolling drum is made of steel and is equipped with a guide to accurately laying a rope. NA A limit brake is mounted with a rope that windows the line, which protects the device and a rope against excessive collapse. Another protection of the crane is a drum protecting the drum against overload and a locking rope in the event of a break in energy supply.
The rope mounted on the device is made of durable stainless steel and produced in a way that prevents it during operation. In the device body, there is a place to attach a rope if you use a clamp that doubling the lifting force. Control cartridge - an integrated wired remote control - is equipped with a winch control button and a safety switch. The entire control can take place using one hand. The control cable is additionally protected by a tank cable and has a length of 135 cm.

Rope crane mounted on the swing shoulder perfectly works in warehouses, production halls, hangars, on loading ramps, in automotive workshops and wherever checked and safe equipment intended for the most releases is required tasks.
Technical parameters:

• - Model - Proliftor 1000
• - catalog number - 6007
• - state - New
• - Rope material - CK45 steel
• - load capacity - 495 kg / 990 kg (without cladders / with grozer)
• - lifting height - 12 m / 6 m (without cladders / with a cladd)
• - Lifting speed - 8 m / min / 4 m / min (without cladders / with clates)
• - Rope length - 12 m
• - Rope diameter - 5.6 mm
• - resistance to the cable interruption - > 2500 kg
• - Work cycle - S3-20% 10 min
• - Main tension - 230V- 50Hz
• - engine performance - P1 1600W
• - remote control - So
• - Insulation class - Breakfast
• - protection level - Ip54
• - Power cord - 1.4 m
• - Dimensions (DXSXW) - 52 x 17,5 x 25 cm
• - weight - 30.2 kg
• - Dimensions of shipment (DXSXW) - 64 x 26 x 38 cm
• - shipping weight - 33.3 kg

Included:

• - Rope winch
• - Pilot with a wire
• - Handles - 2 pcs.
• - screw set
• - Broadcast
• - EN statement
• - There is no Washing arm - to buy separately in our store
