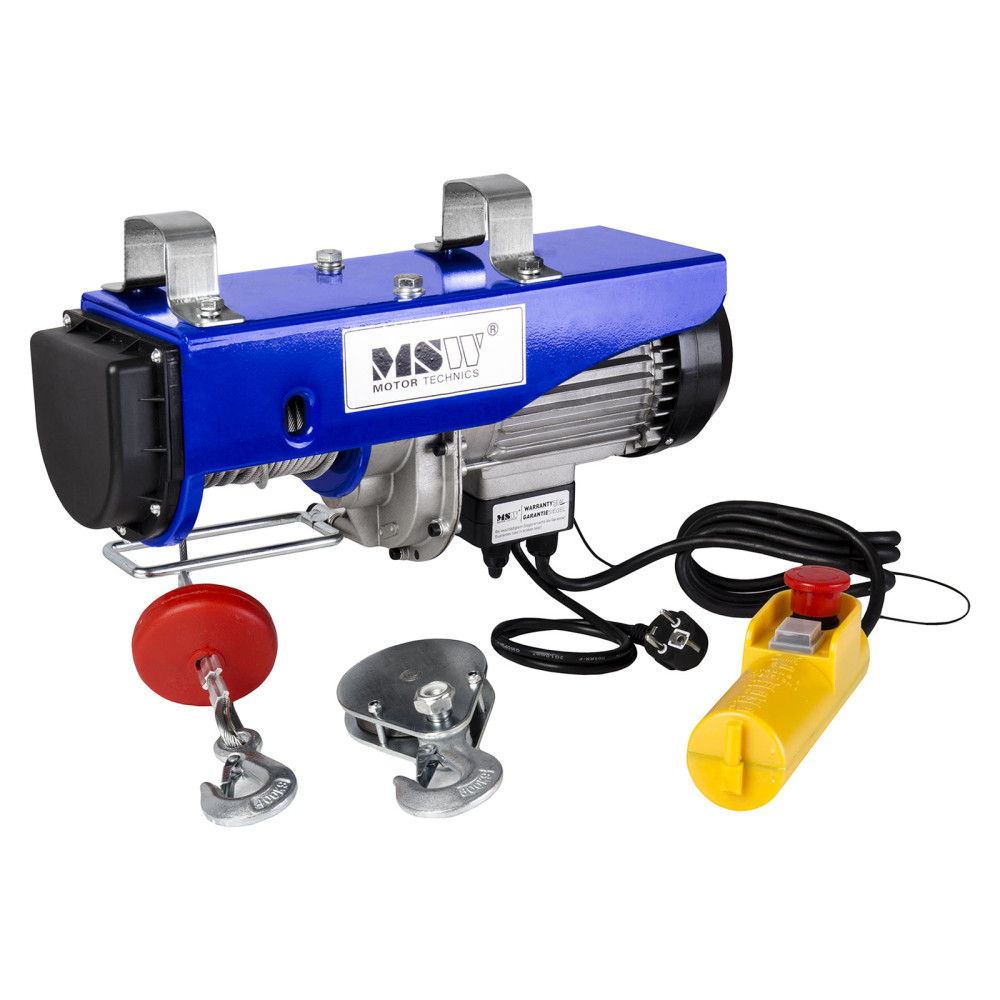

Rope winch Proliftor 800 to 800kg

Manufacturer name: Proliftor 800

Professional cable winch with electric motor of the German manufacturer MSW.
Warehouse crane is characterized by a durable design, excellent parameters, ease of assembly and operation and safety of use.
The device is made of durable steel, powder coated. The engine body is made of pressure-pressed aluminum.

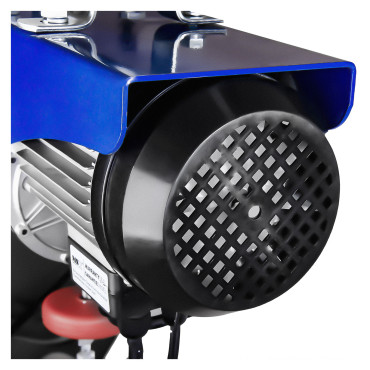

A modern engine applied to the winch has a magnetic mechanism with a stop function that allows immediate inhibition of winches, which guarantees safety and precise and reliable operation.

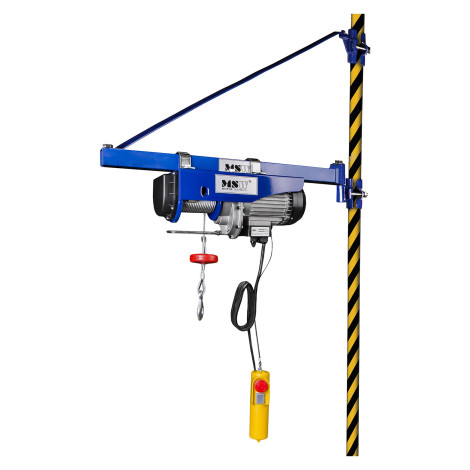

The winch can be mounted to a swing arm or a carrier hall or warehouse construction. Two steel clamps are used to attach the device that are included in the device set.

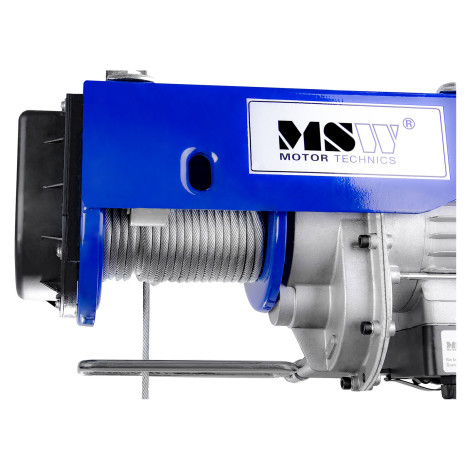

Rope rolling drum is made of steel and has guides for accurate rope stacking. A limit brake is mounted on a winding drum that protects the device and a rope against excessive collapse.
Another protection of the crane is a drum protecting the drum against overload and a locking rope in the event of a break in energy supply.
Rope mounted on the device is made of durable, stainless steel. This is an amazing rope - a special way of producing a rope that protects it from turning during operation.
In the device body, there is a place to attach a rope if you use a clamp that doubling the lifting force.
Control cartridge - an integrated wired remote control - is equipped with a winch control button and a safety switch. The entire control can take place using one hand. The control cable is additionally protected by a counter-bracket cable and has a length of 135cm.

Rope crane mounted on the swing shoulder perfectly works in warehouses, production halls, hangars, on loading ramps, in automotive workshops and wherever checked and safe equipment designed for the tough tasks is required.
Technical parameters:

• - Model - Proliftor 800
• - catalog number - 6008
• - article - New

Without a blazing / with a clad

• - load capacity - 400 kg / 800 kg
• - Max. Lifting performance - 12 m / 6 m
• - Lifting speed - 8m / min. / 4m / min.
• - Rope length - 12 m
• - Rope diameter - 5.1 mm
• - Rope resistance to picking - > 2000 kg
• - Time of break at work - S3-20% 10 min.
• - power supply voltage - 230 V
• - engine power - P1 1300W
• - Dimensions (DXSXW) - 45.5 x 21.5 x 15 cm
• - weight - 19.3 kg
• - Dimensions of shipment (DXSXW) - 51 x 17 x 30 cm
• - shipping weight - 20.8 kg

Included:

• - Rope winch
• - Wired control pilot
• - clamp - attachment to the profile or swing arm
• - Bold with a hook
• - Loading hook
• - Steel Line with a length of 12 m
• - EN statement
