WINCH WINDER RIGHT RIGHT 1350 W 12 M 400 kg

Manufacturer's code: 10062132
Brand winch MSW Allows you effortlessly to raise heavy loads in a warehouse or workshop. Motor 1350 power Raises loads of weight up to 400 kg to altitude 12 m. Lifting speed is 8 m / min. The steel line is protected against twisting, durable and durable. After the assumption of the clamping lifting height decreases by half, up to 6 m and the lifting speed to 4 m / min. At the same time, the loading of the winch increases to 800 kg. Wireless remote Allows you to control the device from a distance. The device stops automatically in the case of a power supply. The winch was marked IP54 protection classIt is protected against dirt penetration and water.
Product features:

• - the force force up to 800 kg lifting speed up to 8 m / min,

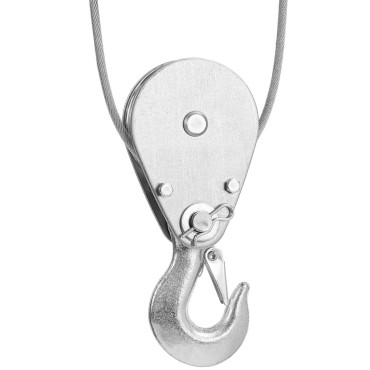

• - lifting height up to 12 m, with a claw of 6 m,
• - steel cable with a diameter of 5.1 mm,
• - automatic stop in the event of a power supply and remote control for distance control,
• - Stainless steel, copper and aluminum construction.

Technical parameters:

• - catalog number - 10062132
• - article - New
• - Model - MSW-Proliftor-800nw
• - Tension [V] - 230
• - Material - Aluminum, steel, copper
• - Color - Blue
• - load [kg] - 400
• - power [W] - 1350
• - Rope length [m] - 12
• - Maximum load [kg] - 800
• - engine power [W] - 1350
• - Power cord [m] - 0,55
• - Max. Lifting height [m] - 12
• - Rope diameter [mm] - 5,1
• - Time of break at work - S3 / 20% / 10 min
• - Max lifting speed - 8 m / min
• - IP protection degree - Ip54
• - Lifting speed - without a clad [m/min] - 8
• - load capacity - without a clad [kg] - 400
• - lifting speed - with a cladding [m/min] - 4
• - load capacity - with a cladding [kg] - 800
• - Max lifting performance - without a clad [m] - 12
• - Max lifting efficiency - with a clad [m] - 6
• - Load hook - So
• - pilot - So
• - Emergency switch - So
• - Bold with a hook - So
• - clamp - attachment to the profile or swivel arm - So
• - Dimensions (DXSXW) [cm] - 41 x 15 x 22
• - weight [kg] - 19,5
• - Dimensions of shipment (DXSXW) [cm] - 50 x 30 x 21
• - shipping weight [kg] - 20,6

Included:

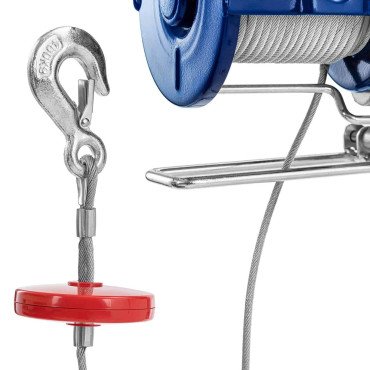

• - Rope winch

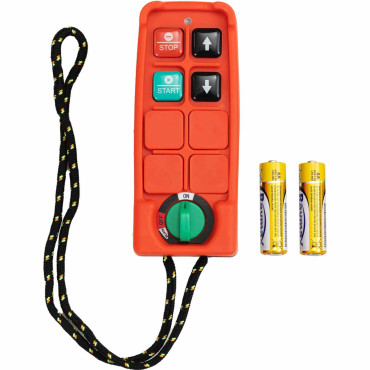

• - pilot
