Wincher winch. Electric workshop 200 kg 12 m

€166.44
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030797

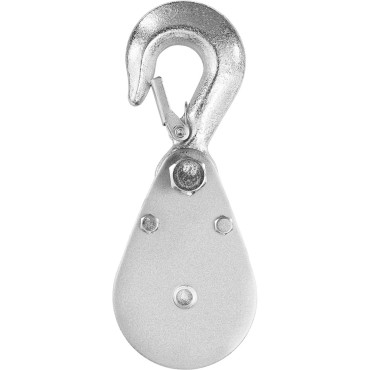

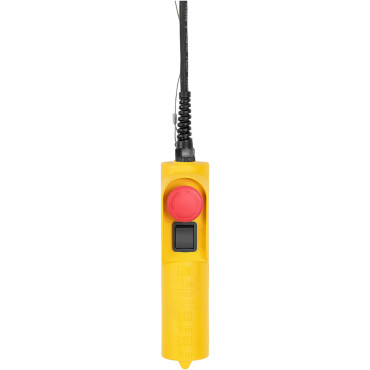

Brand winch Steinberg Systems It will work for lifting heavy loads in a warehouse, garage or workshop. Power engine 450 W can raise loads up to 100 kg to a height up to 12 m. Lifting speed is 8 m / min. Durable steel line is protected against twisting and wear resistant. Poured clamps reduces the lifting height by half, up to 6 m and the lifting speed decreases by half, up to 4 m / min. At the same time, the load on the winch increases to 200 kg and allows you to raise heavy loads. The stretching force is twice as high as the disc is used. Wired remote controls the winch, Emergency Switch Stop the rope. Each hook has a security lock. The device turns off automatically In the highest and lowest position. The hoist housing was made of steel, which is resistant to scratches, splashes and corrosion. Equipment has IP54 protection class, i.e. protection against dirt and water penetration and thermal protection against overload.
Product features:
  • - the force of the load up to 200 kg,
  • - a solid steel rope with a diameter of 3 mm,
  • - Lifting height 12 m, with a clamp 6 m,
  • - emergency switch and hooks with safety locks,
  • - Steel and copper construction.

Technical parameters:
  • - Model - SBS-Eh-200/12
  • - catalog number - 10030797
  • - article - New
  • - Tension [V] - 230
  • - chain diameter [mm] - 3
  • - Material - Steel, copper
  • - Permissible load [kg] - 200
  • - Maximum load [kg] - 200
  • - engine power [W] - 450
  • - Rope diameter [mm] - 3
  • - Rope material - Steel
  • - IP protection degree - Ip54
  • - Lifting speed - without a clad [m/min] - 8
  • - load capacity - without a clad [kg] - 100
  • - lifting speed - with a cladding [m/min] - 4
  • - load capacity - with a cladding [kg] - 200
  • - Max lifting performance - without a clad [m] - 12
  • - Max lifting efficiency - with a clad [m] - 6
  • - Load hook - So
  • - Emergency switch - So
  • - Dimensions (DXSXW) [cm] - 23.5 x 14.5 x 41.5
  • - weight [kg] - 12
  • - Dimensions of shipment (DXSXW) [cm] - 42 x 29.5 x 30
  • - shipping weight [kg] - 13,8

Included:
  • - Rope winch
  • - User manual
