Swing arm boom for winch up to 1000kg

Manufacturer's code: 10060012

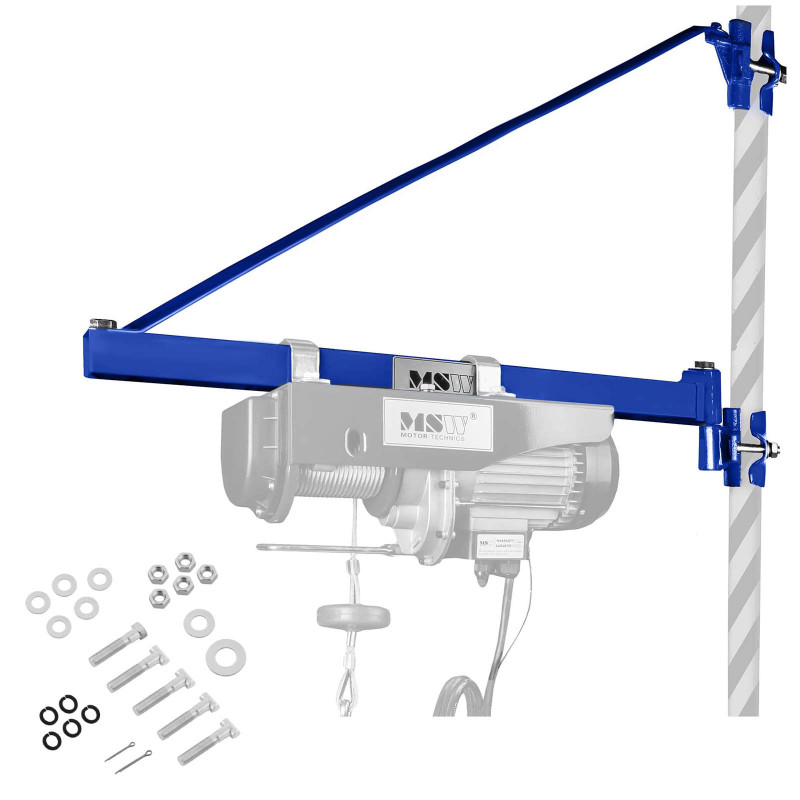

PROFRAME 1000 tilting arm brand MSW It is an optimal complement to cable tackers. The electric bracket has been designed to raise objects about Weighing up to 1000 kg In warehouses, garages, workshops, hangars, while performing façade works and in many other places. The device fits the rope winch that needs a rotary boom to raise different materials. The ProFrame 1000 model has a deviation range of deviation with free assembly 180deg . The product is characterized by universal application and mobility. Extremely easy installation ensure all of them Essential accessories and instructionswhich helps to improve and accelerate work. Tilting arm from MSW you can mount on a pipe diameter of 48 mm.
Product features:

• - Max. Lifting 1000 kg,
• - length 750 mm,
• - Deflection range over 180Deg,
• - for steel pipes 4-5 cm,
• - Accessories Assembly,
• - ideal for Prolifter 1000.

Technical data:

• - Model - Proframe 1000
• - catalog number - 10060012
• - article - New
• - Dimensions (DXSXW) - 75 x 4.3 x 6.3 cm
• - weight - 6.7 kg
• - Dimensions of shipment (DXSXW) - 87.5 x 9 x 10 cm
• - shipping weight - 7.2 kg

Included:

• - tilting arm,
• - screw set,
• - User manual,
• - No wiper - to buy separately in our store,
• - No vertical pipe Visible in the picture.
