DRITNER Diamond hole for concrete with a box tripod 1300 rpm 2200 W

Manufacturer's code: 10062273

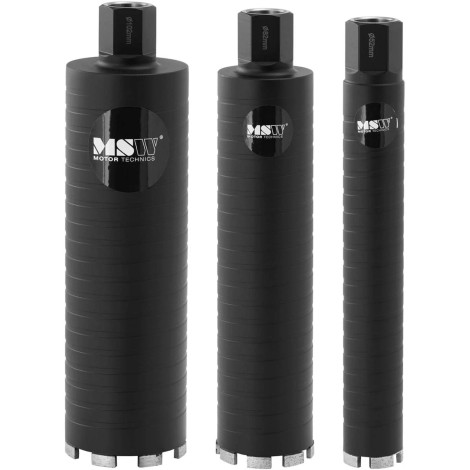

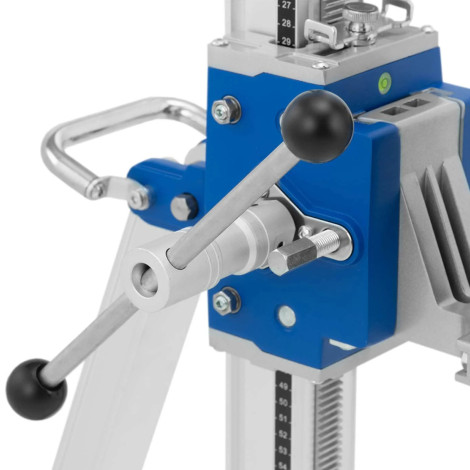

Mark's concrete drilling machine MSW It allows you to reliably drill holes in hard materials, such as concrete, wall or asphalt. The power of the device is 2200 W and its maximum speed achieves 1300 rpm. These are ideal values for drilling core holes for 162 mm diameter. The guide rail has a length of 510 mm. The device must be attached to a grip with a diameter of 60 mm. The drilling category can be set in the range from 0 to 45deg in steps of every 5DEG. In the case of hard walls, use microseranium mode, which gives a delicate hammer effect. The concrete drill is shifted after the rail using the T-shaped handle, the length of which can be adjusted. The integrated connector for the device has been used water cooling, Which reduction of drill consumption, limits the maintenance of the machine and ensures longer life. A core drills are used for drilling rig, which are fastened with the handle. They can drill them in concrete reinforced, cement, wall, asphalt or natural stone. The built-in Differential Current (PRCD) switch for safety stops the machine in the event of a short circuit. In the set there are Three diamond hole With diameters 52, 82, 102 mm.
Product features:

• - 2200 W motor with microselection mode,
• - Possibility of drilling core with a tripod to a diameter of 162 mm, and with a tripod up to 202 mm
• - Speed to 585/1300 rpm,
• - Solid construction,

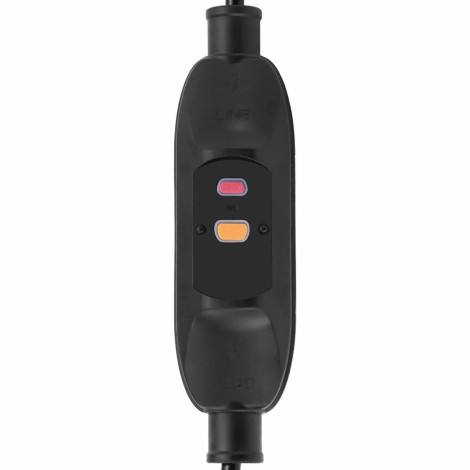

• - Differential current circuit breaker (PRCD - Portable Residual Current Device).

Technical parameters:

• - catalog number - 10062273
• - article - New
• - Model - MSW-CDM 2200D Titan Kit
• - Tension [V] - 230
• - Material - Aluminum alloy, plastic, diamond, iron, magnesium alloy
• - current [A] - 10
• - power [W] - 2200
• - Power cord [m] - 2,8
• - acoustic power level [dB] - 100,7
• - Drilling diameter 1/2/3 [mm] - 162/82
• - Adjusting the range of the guide [mm] - 510
• - acoustic pressure level [dB] - 87,7
• - rotational speed [obr./min] - 585/1300
• - water hose diameter [mm] - 15,4
• - Maximum drilling diameter [mm] - 202
• - Drilling diameter with a 1/2/3 race tripod [mm] - 202/102
• - Diameter of the lace drill fastening [''] - 1-1 / 4 UNC and G 1/2
• - PrcD protection module on the cable - So
• - drilling lace dry and wet method - So

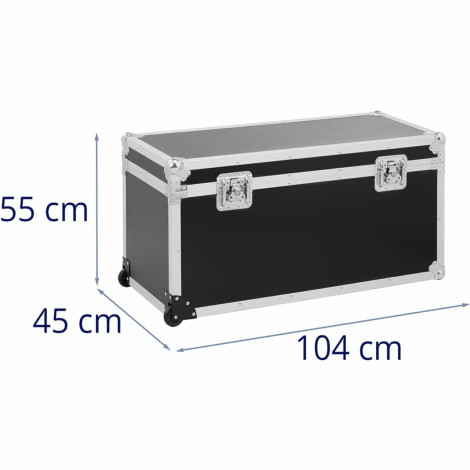

• - Dimensions (DXSXW) [cm] - 104 x 55 x 45
• - weight [kg] - 52
• - Dimensions of shipment (DXSXW) [cm] - 105 x 56 x 46
• - shipping weight [kg] - 53.3

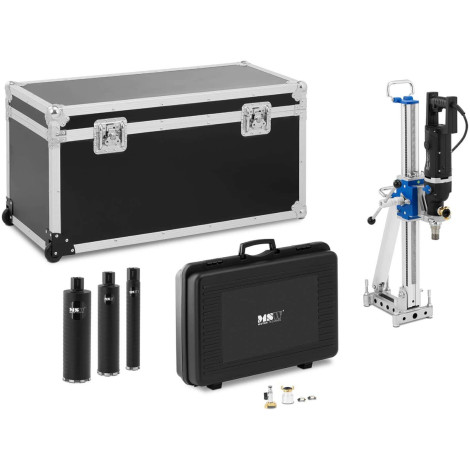

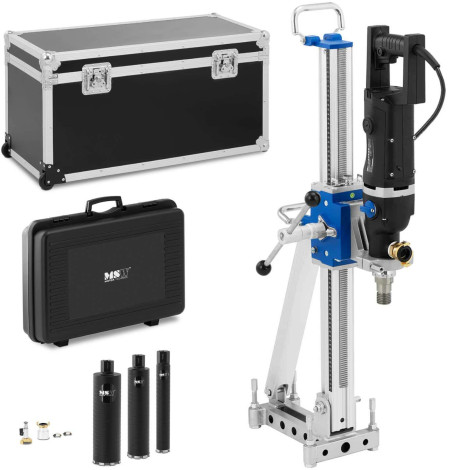

Included:

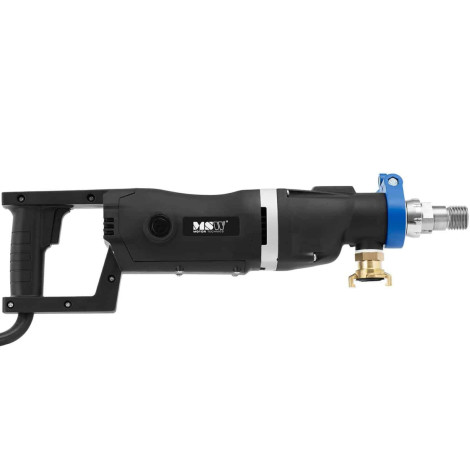

• - Concrete drilling machine

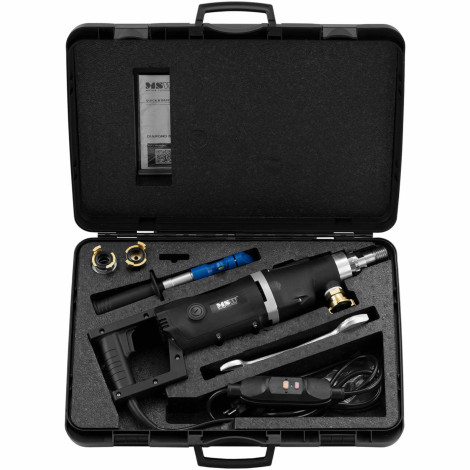

• - Plastic housing, molded
• - 2 keys
• - quick coupling to the suction hose
• - Quick coupling to the water hose
• - front handle
• - Carbon brush

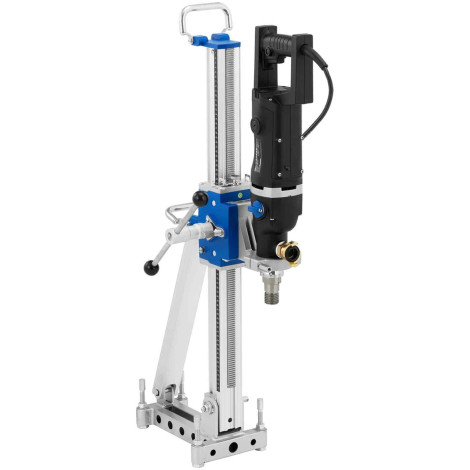

• - Concrete drilling rack
• - Hand crank
• - bracket (Wed. 60 mm)
• - Mounting accessories
