Diamond drilling machine vertical for asphalt concrete with a tripod 550 rpm. 3300 W

Diamond drilling machine vertical for asphalt concrete with a tripod 550 rpm. 3300 W

MSW
1025665
Out of Stock
€572.19
Tax included
Quantity

Out-of-Stock
  Secure payment

By credit card and paypal

  Easy going back

Buy safely

  Fast delivery

With online tracking

Manufacturer's code: 10062192

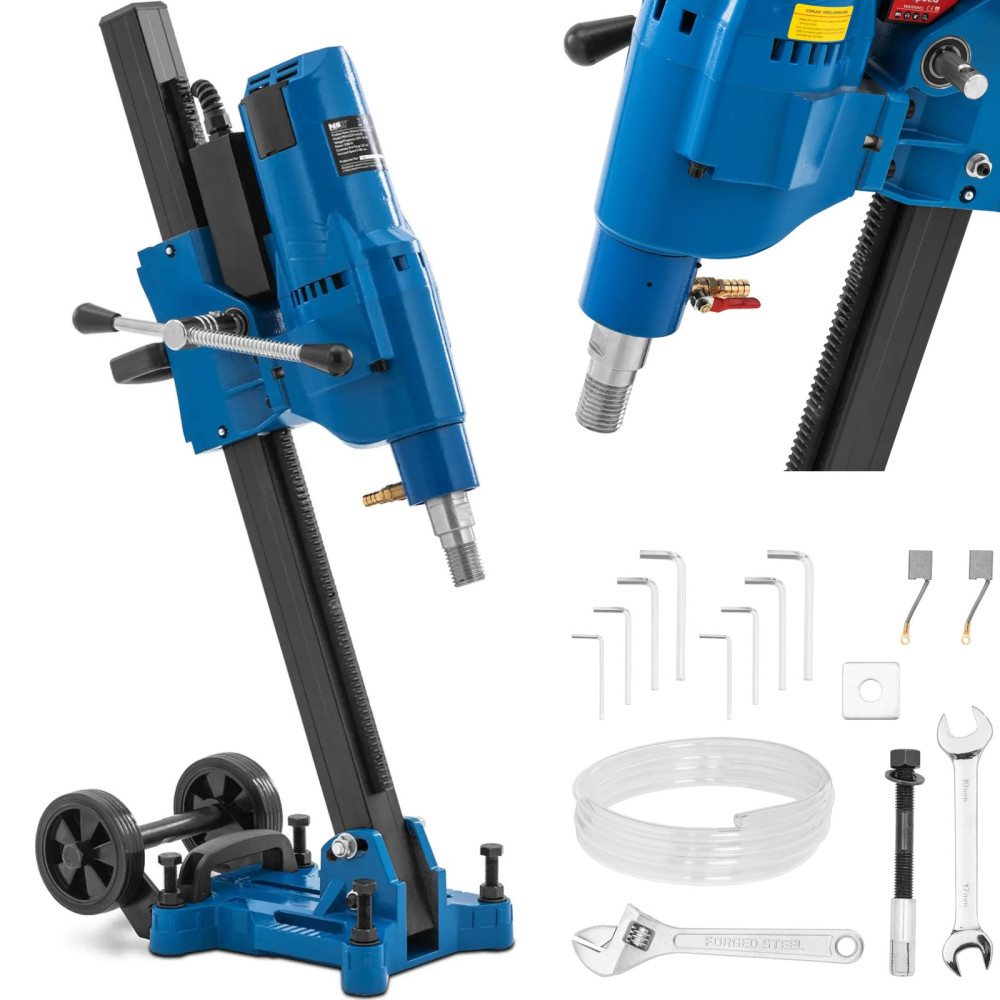

Mark's concrete drilling machine MSW It allows you to reliably drill holes in hard materials, such as concrete, wall or asphalt. Using a drilling tripod, it is possible to make even large holes o Diameter up to 255 mm. The device has Power 3300 W and Speed 550 rpm. These are ideal values for drilling core holes. The size of the drill is changed depending on the material, e.g. in cement, the holes with a diameter of 180 mm can be drilled. Thanks A rail lead on a stand Precise results are obtained to a depth of ≤500 mm. Three power levels They allow optimal results. It is best to use drills with the largest diameter at the lowest speed. The drilling machine is water-cooled. The connector is integrated directly with the device. This drill consumption reduces, limits machine maintenance and provides longer life. To serve carbon brushes, simply remove the protective cover. Drills with different diameters securely fasten on the device using the handle. Diamond drill can be drilled in reinforced concrete, cement, wall, asphalt and natural stone. Length power cord 3.5 m Provides maximum freedom of movement.
Product features:
  • - strong engine 3300 W, with carbon brushes,
  • - the tripod with the guide enables clean core drilling to a diameter of 255 mm,
  • - efficiency depending on the run, speed to 0 - 550 rpm,
  • - for dry and wet drilling,
  • - A stable design made of cast aluminum can withstand even large loads.

Technical parameters:
  • - catalog number - 10062192
  • - article - New
  • - Model - MSW-Ddm-a4250s
  • - Material - Aluminum, Plastic, Copper, Iron
  • - Tension [V] - 230
  • - current [A] - 17
  • - power [W] - 3300
  • - Drilling diameter 1/2/3 [mm] - 155
  • - Adjusting the range of the guide [mm] - ≤500
  • - water hose diameter [mm] - 10
  • - Maximum drilling diameter [mm] - 255
  • - water connector diameter ['] - 0.4
  • - Diameter of the lace drill fastening [''] - 1 1/4 - 7 UNC and G1 / 2
  • - drilling lace dry and wet method - So
  • - acoustic power level - 103 dB
  • - acoustic pressure level - 90 dB
  • - length of the cooling hose - 3.5 m
  • - Dimensions (DXSXW) - 50 x 25 x 93 cm
  • - weight - 24.1 kg
  • - Dimensions of shipment (DXSXW) - 104 x 38 x 24 cm
  • - shipping weight - 26.52 kg

Included:
  • - Concrete drilling machine
MSW
: 1025665
Out of Stock

Specific References

EAN13
4062859160386
