Manufacturer's code:

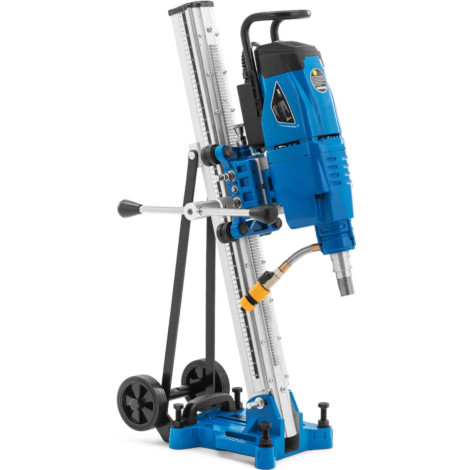

10062191Mark's concrete drilling machine MSW allows you to drill holes in hard materials such as
Concrete, wall or asphalt. When using a drilling tripod, you can do even large holes
Diameter up to 350 mm. The power of the device is
3700 W A maximum speed 610 rpm. These are ideal values for drilling core holes for 350 mm in diameter. The size of the drill can be changed depending on the material, e.g. in cement, the holes with a diameter of 180 mm can be drilled. The railway rail on the stand allows for precise results
to depth ≤600 mm. The drilling machine has

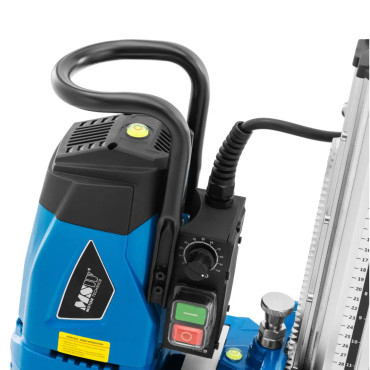

Three power levels For optimal results. Use drill bit with the largest diameter at the lowest speed. Equipment is cooled with water during drilling. The connector is integrated directly with the device. This drill consumption reduces, limits machine maintenance and provides longer life. To serve carbon brushes, simply remove the protective cover. Diamond core drills with different diameters, securely fasten on the device using a handle. Diamond drill can be drilled in reinforced concrete, cement, wall, asphalt and natural stone. 3.5 m power cord provides maximum freedom of movement. The drilling machine has
Differential current circuit breaker (PRCD - Portable Residual Current Device) which always allows you to safely use the device. In the event of a short circuit, the operation is immediate.
Product features: - - strong engine 3700 W and with carbon brushes,
- - the tripod with the guide enables clean core drilling to a diameter of 350 mm,
- - depending on the run, speed up to 100 - 310/100 - 460/100 - 610 rpm,
- - for dry and wet drilling,
- - Differential current circuit breaker (PRCD - Portable Residual Current Device).
Technical parameters: - - catalog number - 10062191
- - article - New
- - Model - MSW-Ddm-o5300s
- - Material - Aluminum, Plastic, Copper, Iron
- - Tension [V] - 230
- - current [A] - 18
- - power [W] - 3700
- - Drilling diameter 1/2/3 [mm] - 20-70 / 70-130 / 130-210
- - Adjusting the range of the guide [mm] - ≤600
- - water hose diameter [mm] - 10
- - Maximum drilling diameter [mm] - 350
- - water connector diameter ['] - 0.4
- - Drilling diameter with a 1/2/3 race tripod [mm] - 120 / 220/350
- - Diameter of the lace drill fastening [''] - 1 1/4 - 7 UNC and G1 / 2
- - PrcD protection module on the cable - So
- - drilling lace dry and wet method - So
- - acoustic power level [dB] - 105 dB
- - acoustic pressure level [dB] - 92 dB
- - length of the cooling hose [m] - 3.5 m
- - Dimensions (DXSXW) - 55 x 33 x 93 cm
- - weight - 35.2 kg
- - Dimensions and weight of shipping (DXSXW) - 23.5 kg 45 x 92 x 30 cm, 16 kg 24 x 56 x 40 cm

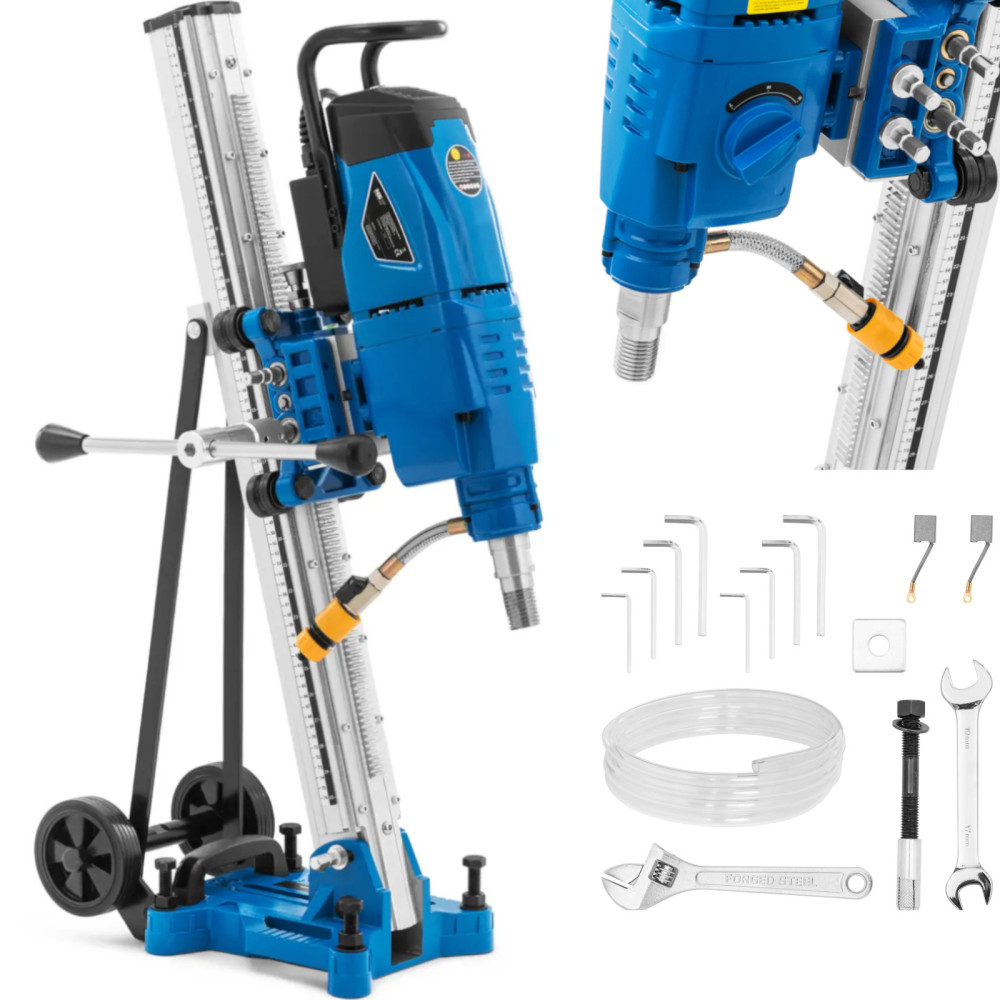

Included: - - Concrete drilling machine
