Manufacturer's code:

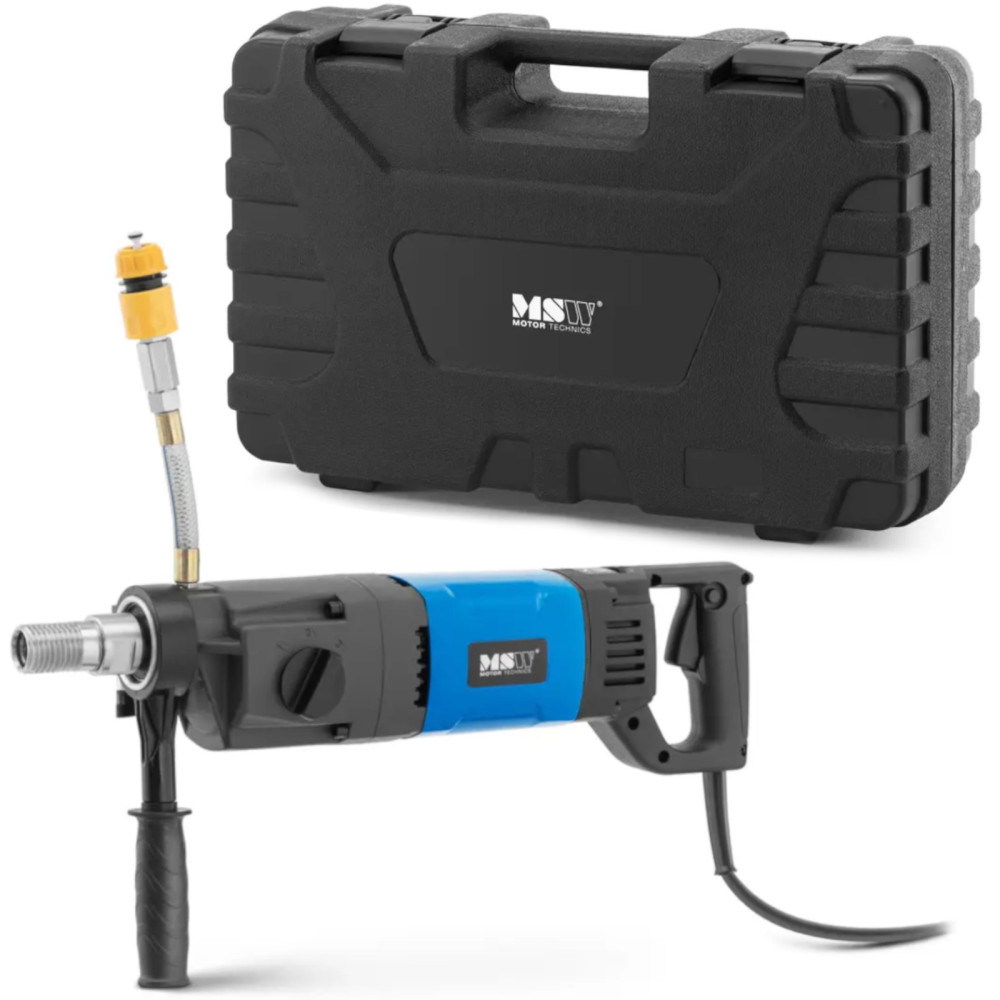

10062187Mark's concrete drilling machine
MSW It will allow you to drill holes in hard materials, such as concrete, wall or asphalt. If the drilling tripod is used during drilling (
set), you can make large holes up to 165 mm in diameter. A drilling machine
Power 1900 W and maximum
Speed 2170 rpm. These are ideal values for manual drilling of core holes
to a diameter of 100 mm. To get the best results, use two power levels, as well as use drills with the largest diameter at the lowest speed. The device has a water cooling function during drilling. The connector is integrated directly with the device. This drill consumption reduces, limits machine maintenance and provides longer life. To replace carbon brushes, just remove the protective cover. Diamond core drills with different diameters securely fasten on the device using the handle. Diamond drill can be drilled in concrete reinforced, cement, wall, asphalt and natural stone. Power cord
3.5 m long Provides maximum freedom of movement. Thanks to the built-in RESIDUAL Current Device (PRCD) switch, you can always use the device safely. In the event of a short circuit, the operation is immediate.
Product features: - - strong engine 1900 W with carbon brushes,
- - for core drills to Ø100 mm, with a tripod to Ø165 mm,
- - accelerates to 850 - 1200/1980 / 2170 rpm depending on the run,
- - for dry and wet drilling,
- - With a Differential Cable (PRCD - Portable Residual Current Device).
Technical parameters: - - catalog number - 10062187
- - article - New
- - Model - MSW-Ddm-2300d
- - Material - Aluminum, plastic, copper, Iron
- - length of the cooling hose [m] - 3,5
- - Diameter of the lace drill fastening [''] - 1 1/4 - 7 UNC and G1 / 2
- - current [A] - 11
- - drilling lace dry and wet method - So
- - Case included - So
- - Drilling diameter 1/2/3 [mm] - 20-30 / 30-60 / 60-100
- - Drilling diameter with a 1/2/3 race tripod [mm] - 55/105 / 165
- - Maximum drilling diameter [mm] - 105/165
- - Power cord [m] - 3,5
- - PrcD protection module on the cable - So
- - Tension [V] - 230
- - power [W] - 1900
- - rotational speed [obr./min] - 850 - 1200/1980 / 2170
- - water hose diameter [mm] - 10
- - water connector diameter ['] - 0.4
- - acoustic power level [dB] - 100,9
- - acoustic pressure level [dB] - 89,9
- - Dimensions (DXSXW) - 55 x 50 x 12 cm
- - weight - 11.9 kg
- - Dimensions of shipment (DXSXW) - 56 x 17 x 36 cm
- - shipping weight - 12.75 kg
Included: - - Concrete drilling machine
