DRITNER Diamond hole for concrete 1300 rpm 2200 W - set

€809.54
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062270

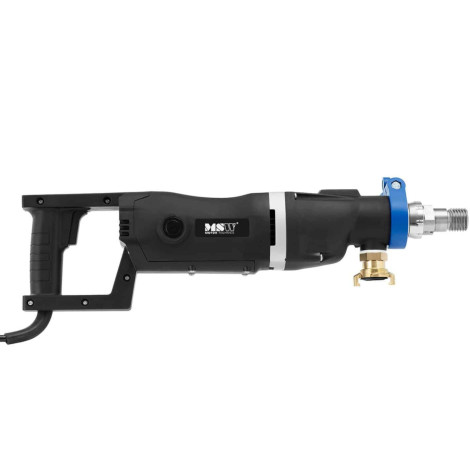

Mark's concrete drilling machine MSW It allows you to reliably drill holes in hard materials, such as concrete, wall or asphalt. The power of the device is 2200 W and its maximum speed achieves 1300 rpm. These are ideal values for drilling core holes for 162 mm diameter. A drilling rack (not included) allows you to increase drilling precision and get holes with a diameter up to 202 mm The drilling machine has two power levels. In the device, an integrated connector for C was usedWater smelling, which reduces drill consumption, limits machine maintenance and provides its longer life. A core drills are used for drilling rig, which are fastened with the handle. They can drill them in concrete reinforced, cement, wall, asphalt or natural stone. The built-in Differential Current (PRCD) switch for safety stops the machine in the event of a short circuit.
Product features:
  • - a powerful 2200 W motor with microsteranic mode,
  • - core drilling to a diameter of 162 mm and with a tripod up to 202 mm,
  • - rotational speed up to 585/1300 rpm,
  • - for dry and wet drilling,
  • - Differential cutter (PRCD - Portable Residual Current Device)

Technical parameters:
  • - catalog number - 10062270
  • - article - New
  • - Model - MSW-CDM 2200D Titan
  • - Tension [V] - 230
  • - Material - Aluminum alloy, plastic, iron, magnesium alloy
  • - current [A] - 10
  • - power [W] - 2200
  • - Power cord [m] - 2.8
  • - acoustic power level [dB] - 100,7
  • - Drilling diameter 1/2/3 [mm] - 162/82
  • - acoustic pressure level [dB] - 87,7
  • - rotational speed [obr./min] - 585/1300
  • - water hose diameter [mm] - 15,4
  • - Maximum drilling diameter [mm] - 202
  • - Drilling diameter with a 1/2/3 race tripod [mm] - 202/102
  • - Diameter of the lace drill fastening [''] - 1-1 / 4 UNC and G 1/2
  • - PrcD protection module on the cable - So
  • - drilling lace dry and wet method - So
  • - Dimensions (DXSXW) [cm] - 62 x 46 x 21
  • - weight [kg] - 12.5
  • - Dimensions of shipment (DXSXW) [cm] - 63 x 47 x 22
  • - shipping weight [kg] - 13.2

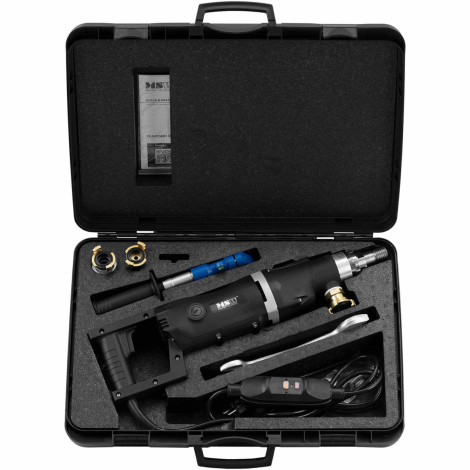

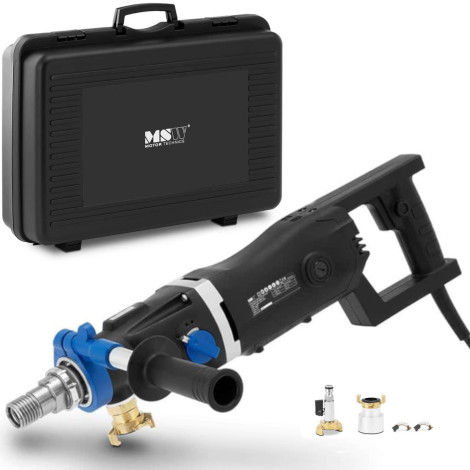

Included:
  • - Concrete drilling machine
  • - Mold plastic housing
  • - 2 keys
  • - quick coupling to the suction hose
  • - Snails for water snake
  • - front handle
  • - Carbon brush
