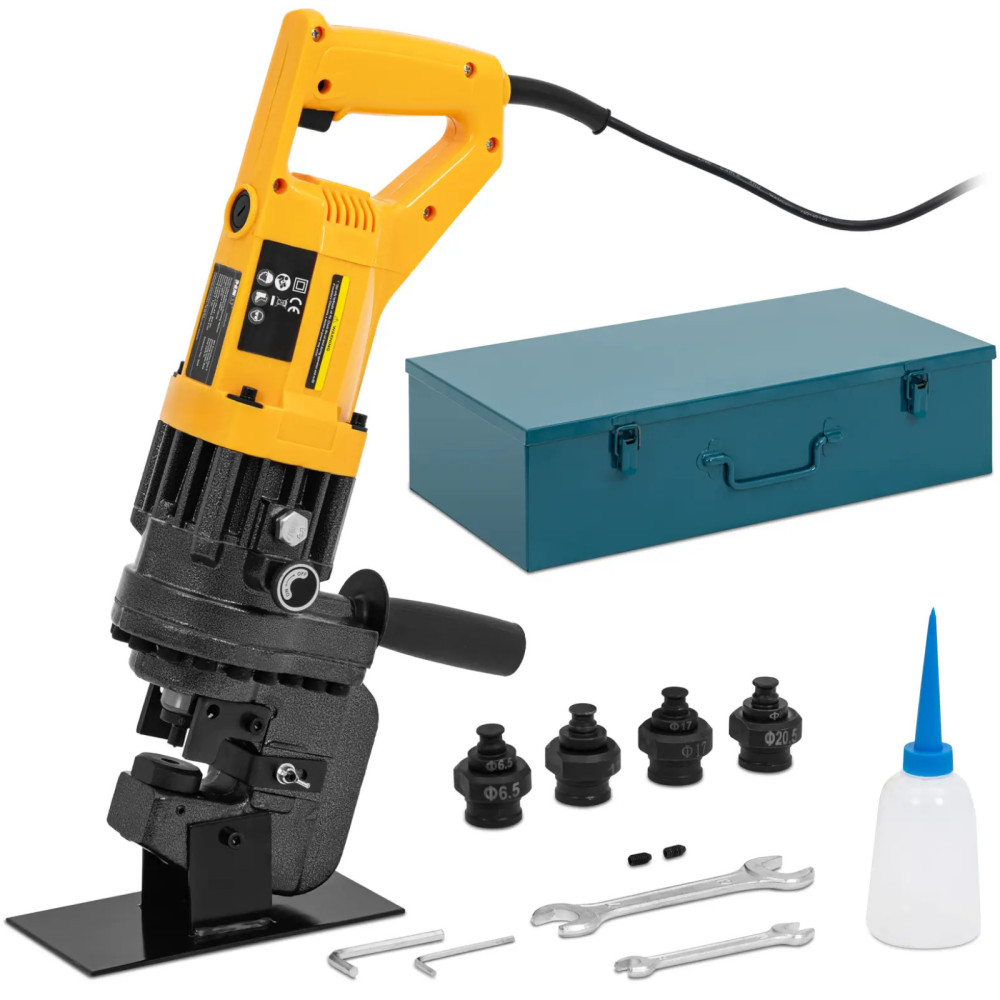

Hole punching machine punch for electrohydraulic 1200 w

Manufacturer's code: 10062810
Electrohydraulic punch for brand sheet metal MSW Precise precise and clean cutting holes. Thanks to the high power 1200, the portable device is able to generate an impressive 300 bar working pressure. This means that with a minimal effort, the machine will even deal with the toughest materials up to 8 mm thick. Ready holes will be so accurate that they will not require final processing. The set includes five favorable interchangeable dies with diameters 6.5, 9, 13, 17 and 20.5 mm. A portable cutter to holes will provide maximum flexibility on the construction site thanks to the 1.7 m cable. Hydraulic sheet hole MSW It has been developed for ergonomics and ease of use. A specially shaped handle and damping vibrations frame will limit fatigue and reduce the risk of injury during operation. In addition, the striking to the holes are distinguished by long life and constant yield thanks to high quality copper wire engine. A solid metal suitcase will protect the tool and matrices and make them easier.
Product features:

• - a portable sheet punch with a 1.7 m length line will work on construction sites, and the attached base will enable a precise setting,
• - Cutout for sheet metal holes will generate a working pressure of 300 bar with a power of 1500 W,
• - wicker into holes with 5 dies with diameters 6.5, 9, 13, 17 and 20.5 mm for metal up to 8 mm thick,
• - a well-designed handle minimizes fatigue and risk of injury,
• - a permanent hole for sheet metal with a copper wire engine in a metal protective suitcase.

Technical parameters:

• - catalog number - 10062810
• - article - New
• - Model - MSW-Eban-1200
• - frequency [Hz] - 50
• - Material - Nylon, cast iron, alloy steel
• - Color - Gray
• - Input voltage - 1200 W
• - Range of diameters [mm] - 20.5
• - Number of matrices - 5 (Ø6.5 / 9/13/17 / 20.5 mm)
• - Cutting efficiency [mm] - 6
• - engine wire - Copper
• - destiny - Copper / aluminum: 3 - 8 mm iron / steel: 3 - 6 mm
• - Input voltage [V] - 230
• - hardness of the blade [HRC] - HRC 55
• - Insulation class - F
• - IEC protective class - II
• - Device work cycle - S1
• - Maximum sheet thickness for machining [mm] - 6
• - Power cord - 1.7 m
• - Maximum working pressure - 300 bar
• - Case included - So
• - Dimensions (DXSXW) - 26 x 25.5 x 49 cm
• - weight - 12.6 kg
• - Dimensions of shipment (DXSXW) - 58 x 32 x 18 cm
• - shipping weight - 17.9 kg

Included:

• - Electrohydraulic steel punch
• - 5 Matrizen (Ø 6.5 / 9/13/17 / 20.5 mm)
• - Auxiliary handle
• - 2 keys
• - 2 Allen keys
• - basis
• - 2 screws
• - 2 screws
• - 1 can of oil
• - Suitcase for storage
