Manufacturer's code:
10062817Hydraulic Ball Sheet Punch MSW Precise precise and clean cutting holes. Thanks to the strong hydraulic pump, a portable device is able to generate an impressive pressure force of 8 tons.
This means that with a minimal effort, the machine will even handle the hardest materials as steel, stainless steel, brass, copper or aluminum with a thickness of up to 3 mm. Ready holes will be so accurate that they will not require final processing.
The set includes six fast removable dies with diameters 22, 27.5, 34, 43, 49 and 60 mm. A portable cutter to holes in sheets will provide maximum flexibility on the construction site thanks to the 80 cm long hose. So it makes it an ideal helper when installing pipes, wires or wiring. The hydraulic hole was developed for ergonomics and ease of use.
A specially shaped pump holder will reduce fatigue and reduce the risk of injury during operation. In addition, the stress-free maintenance is distinguished by a long service life and constant yield. A solid plastic case protects the tool and matrices and will facilitate their transport.
Product features: - - a portable sheet punch with a hydraulic pump will work on construction sites,
- - the hole cutter will generate strength corresponding to the weight of up to 8 tons,
- - the set includes 6 dies with diameters 22, 27.5, 34, 43, 49 and 60 mm for metal with a thickness of up to 3 mm,
- - the well-designed cutter holder minimizes fatigue and injury risk,
- - The permanent hole for sheet metal is in a protective suitcase of plastic.
Technical parameters: - - catalog number - 10062817
- - article - New
- - Model - MSW-Hpm-01
- - Material - Alloyal steel
- - Color - Black, yellow
- - Number of matrices - 6
- - matrices - 22 / 27.5 / 34/43/49 / 60 mm
- - Minimal / Maximum diameter [mm] - 16/60
- - Maximum sheet thickness for machining [mm] - Steel: 3 mm / stainless steel: 1.6 mm
- - efficiency - 8 t
- - Diameter of the matrix - 60 mm
- - Hose length - 80 cm
- - stroke - 25 mm
- - Case included - So
- - Dimensions (DXSXW) - 40.5 x 17 x 17 cm
- - weight - 5.3 kg
- - Dimensions of shipment (DXSXW) - 41 x 32 x 15 cm
- - shipping weight - 9.6 kg

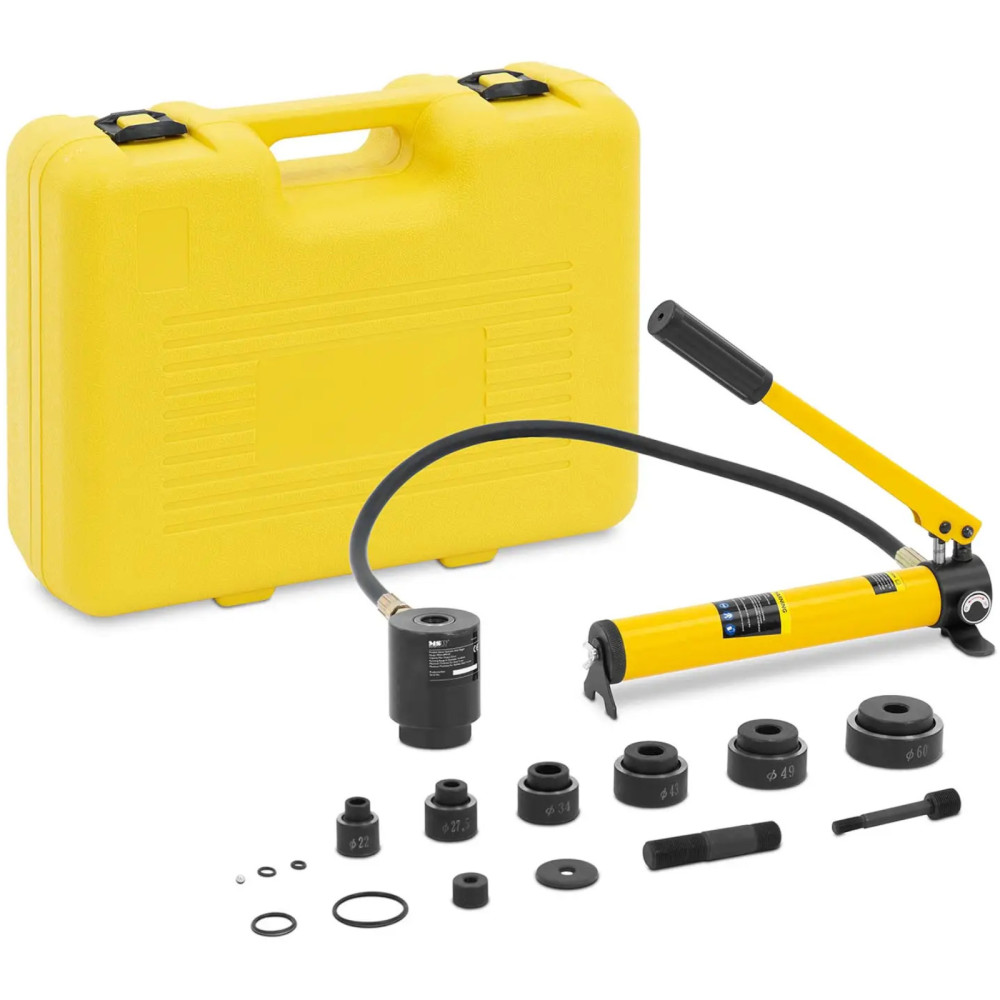

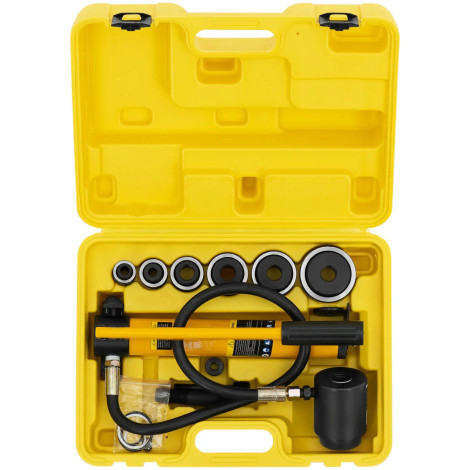

Included: - - Hydraulic sheet punch
- - hydraulic pump
- - 6 matrices (Ø 22 / 27.5 / 34/43 / 49/60 mm mm)
- - 6 gaskets
- - Hose (80 cm)
- - Transport suitcase
