Hand-held handheldwood trolley with 90-130 mm chain 3000 kg

€108.99
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030642

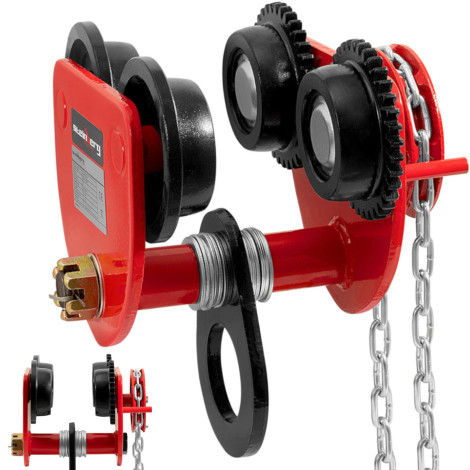

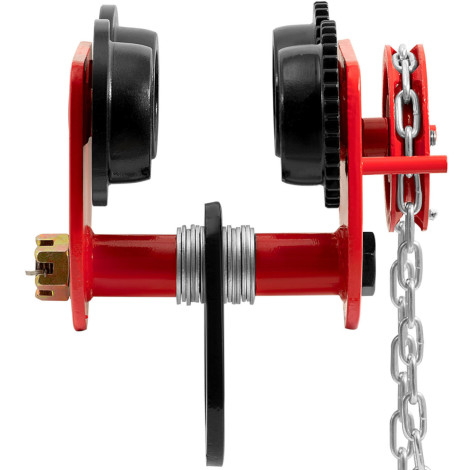

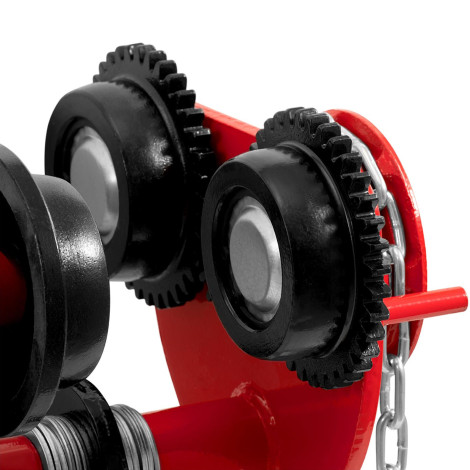

Steinberg cranes It allows you to easily transfer heavy loads up to 3000 kg. The device construction has been made of carbon steel. The coating protects the device against corrosion. The trolley is characterized by a 1.25x safety coefficient based on maximum load capacity, meets the highest standards and provides smooth as well as trouble-free operation. The system of double rollers has been designed in such a way that works both on straight, conical beams as well as on curved rails. The adjustment in the 90-130 mm range allows you to mount the device on different beams with a suitable width.
Product features:
  • - load capacity up to 3000 kg,
  • - Safety coefficient 1.25x,
  • - made of high quality carbon steel,
  • - adjustable in the range of 90-130 mm,
  • - Easy assembly and service.

Technical parameters:
  • - Model - SBS-Rt-3000c
  • - catalog number - 10030642
  • - article - New
  • - Wheels - 30 mm
  • - chain length [mm] - 3000
  • - Security factor - 1,25x
  • - Material of the stem - Carbon steel # 45
  • - adjustment range [mm] - 90-130
  • - Max. Capacity [kg] - 3000
  • - Dimensions (DXSXW) [cm] - 28.5 x 27.5 x 21
  • - weight [kg] - 17,3
  • - Dimensions of shipment (DXSXW) [cm] - 32 x 28.5 x 25
  • - shipping weight [kg] - 18

Included:
  • - Conductive trolley
  • - User manual
