Manufacturer's code:
10060015

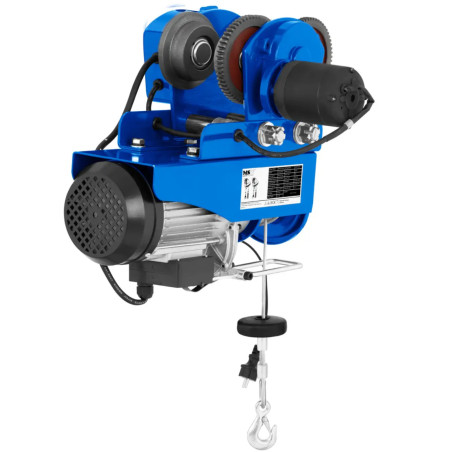

Brand electric winch MSW She was created for trade and especially uses in large warehouses or enclosed spaces. Rope hoist is equipped with

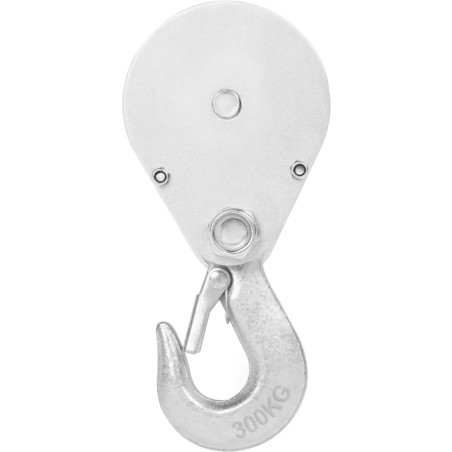

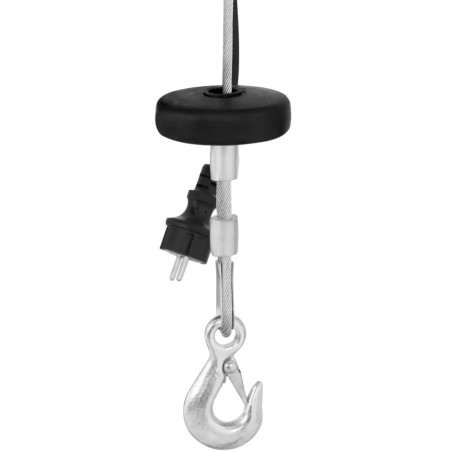

A strong steel line with a length of 12 m, which lifts up to 150 kg. Using a clad, the force force will double up to 300 kg. This means that without any problems you can transport different heavy items from one place to another. After applying the clamping lifting height will decrease by half to 6 m and lifting speed from 8 to 4 m / min. The load all the time will be attached to a 3 mm thick rope thanks to the hook.
Solid CK45 steel link It will not turn on, and will also balance many years of and intense use. Protection against overload will make the winch to work reliably and efficiently for a long time, and

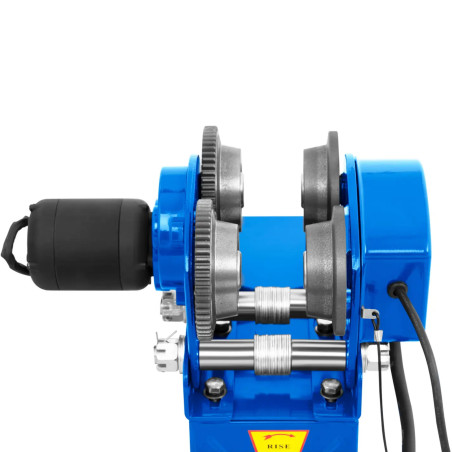

550 W motor Do not overheat. The attached gantry will also allow transport after a curved rail, unless the radius of the arc will be a minimum of 1 m.
Electromagnetic brake system Provides a quiet operation and maintaining the load without the slightest problem.

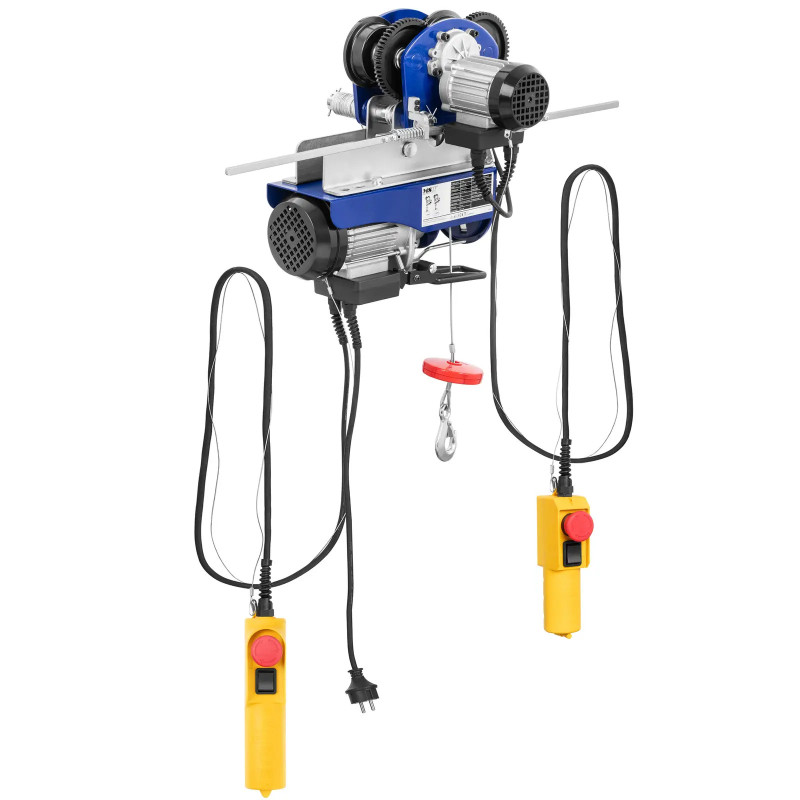

The winch can be handled using two intuitive pilots with 1.45 m cables. A stress reduction was also used to safely work all the time. It protects the pilots wires, extending the long life of the device and so long.
The ProCat 300 winch can be attached to a steel beam with a width of 68 - 94 mm and a height of at least 110 mm. These can be broad-class beams, teakers or dualtees.
Features and functions: - - a high load force up to 300 kg,
- - hook with the possibility of rotation by 360 degrees,
- - Lifting speed 8 m / min and 4 m / min with a cladding,
- - a turning gantry will even advise on twisted rails,
- - Two remote control with a length of 1.45 m and stress reduction for optimal safety.
Technical parameters: - - Model - ProCat 300
- - Producer code - 10060015
- - article - New
- - frequency [Hz] - 50
- - Color - Blue
- - Tension [V] - 230
- - Rope material - CK45 steel
- - Gear grease type - Ep
- - Electric motor - Isolation - Class B
- - Motor of the gantry - Isolation - Class B
- - Electric motor - Security class - Ip54
- - Electric motor - operation in intermittent mode - S3 20% - 10 min
- - Motor Motor - Security Class - Ip20
- - Motor of the gantry - Interrupted operation - S3 20% - 10 min
- - Load hook - So
- - pilot - So
- - Bold with a hook - So
- - tensile tensile strength [N/mm²] - 1870
- - Rope length - 12 m
- - Cable from the remote control - 1.45 m
- - Moving speed - 13 m / mn
- - Rope diameter - 3 mm
- - Engine - Power - 550 W
- - Motor of the Crane - Power - 200w
- - Average lowering speed - one-way extract - 8 m / mn
- - Minimum curve radius - 1 m
- - maximum lifting height - one-way extract - 12 m
- - Average lifting speed - with a turnover roll - 4 m / mn
- - Maximum lifting capacity - one-way extract - 150 kg
- - Average lowering speed - with a feed roll - 4 m / mn
- - Maximum lifting height - with a return roll - 6 m
- - Maximum lifting capacity - with a return roll - 300 kg
- - Dimensions (DXSXW) - 42 x 37.5 x 34 cm
- - weight - 26.5 kg
- - Dimensions of shipment (DXSXW) - Box1 29 kg, 50x41x48 cm, Box2 17 kg, 37x33x28 kg
In order to increase security and for material control purposes, we recommend using a crane together with an industrial hook-crane weight that can be purchased in our store. Included - - Rope winch with a crane
- - Broadcast
