Manufacturer's code:

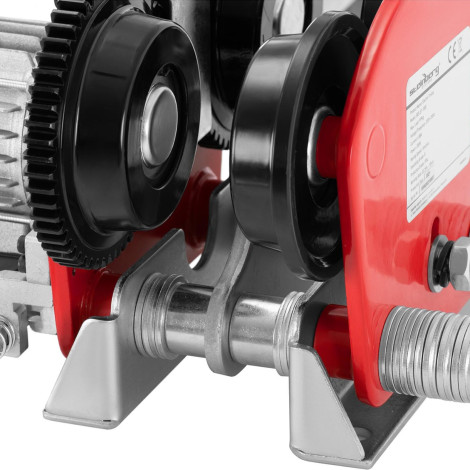

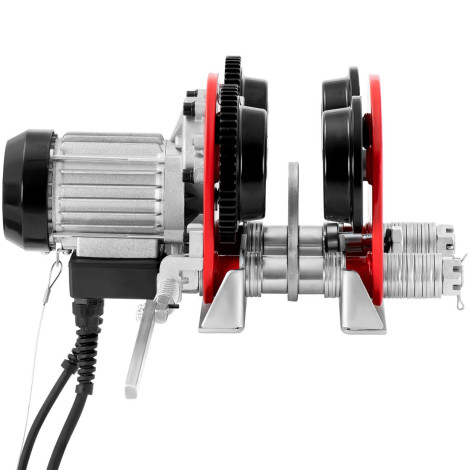

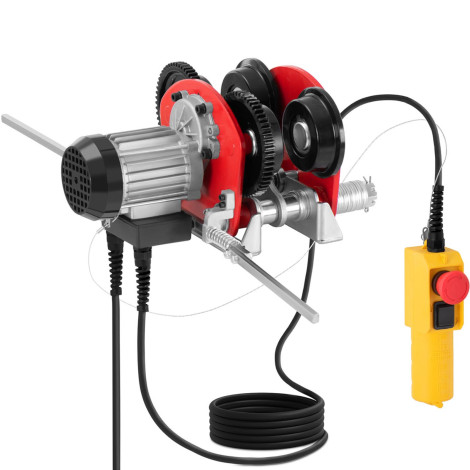

10030792Brand Condel Electric Trolley Steinberg Systems Allows you to raise and transport loads using a cable or chain winch. The electric crane is attached to a steel beam that must have a width of 68-110 mm. As steel profiles, the girders with a wide flange, tyers or duplines are suitable. The crane trolley also allows you to transport the winches after a winding route, unless the radius of the arc is a minimum of 1M. The trolley has
Power 200 W and reaches speed to
16 m / min. The device is controlled by means of

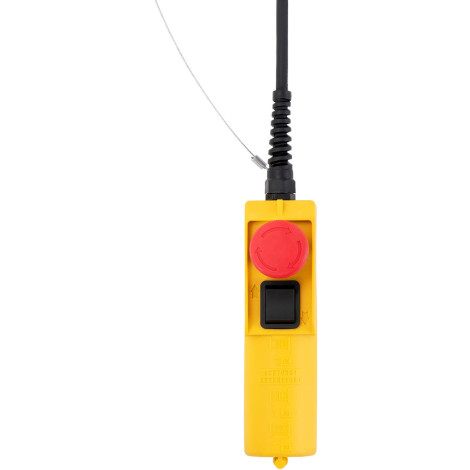

wired remote. The trolley is used in conjunction with various winches. Cable proliftor rope winches can be used MSW (Manufacturer's codes 10060009, 10060008, 10060006, 10060010) Unless they exceed the maximum load of 1000 kg. Alternatively, you can also attach a chain or latch winch. The design of the device components has been made of steel or alloy steel. The external coating protects the equipment against corrosion.
Product features: - - can be combined with chain or rope winches,
- - transporting loads at 16 m / min,
- - load capacity up to 1000 kg,
- - the collar area can be adjusted in the range of 70 to 170 mm,
- - A power engine 200 in Moves Load, Control with a wired remote control.
Technical parameters: - - Model - SBS-Et-1000
- - catalog number - 10030792
- - article - New
- - Tension [V] - 230
- - Speed [m/min] - 16
- - power [W] - 200
- - Wheels - 4
- - Material - Steel
- - frequency [Hz] - 50
- - Material of the stem - Steel
- - adjustment range [mm] - 68 - 110
- - Protection class - III
- - IP protection degree - Ip54
- - Max. Capacity [kg] - 1000
- - Minimal curve [m] - 1
- - Dimensions (DXSXW) [cm] - 31 x 30 x 21.5
- - weight [kg] - 15,3
- - Dimensions of shipment (DXSXW) [cm] - 36.5 x 33 x 27.5
- - shipping weight [kg] - 16,3
Included: - - Electric crane trolley
- - Mounting device
- - User manual
