Electric winch with a 1350 cable crane in 12 m 400 kg

€572.19
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10062134

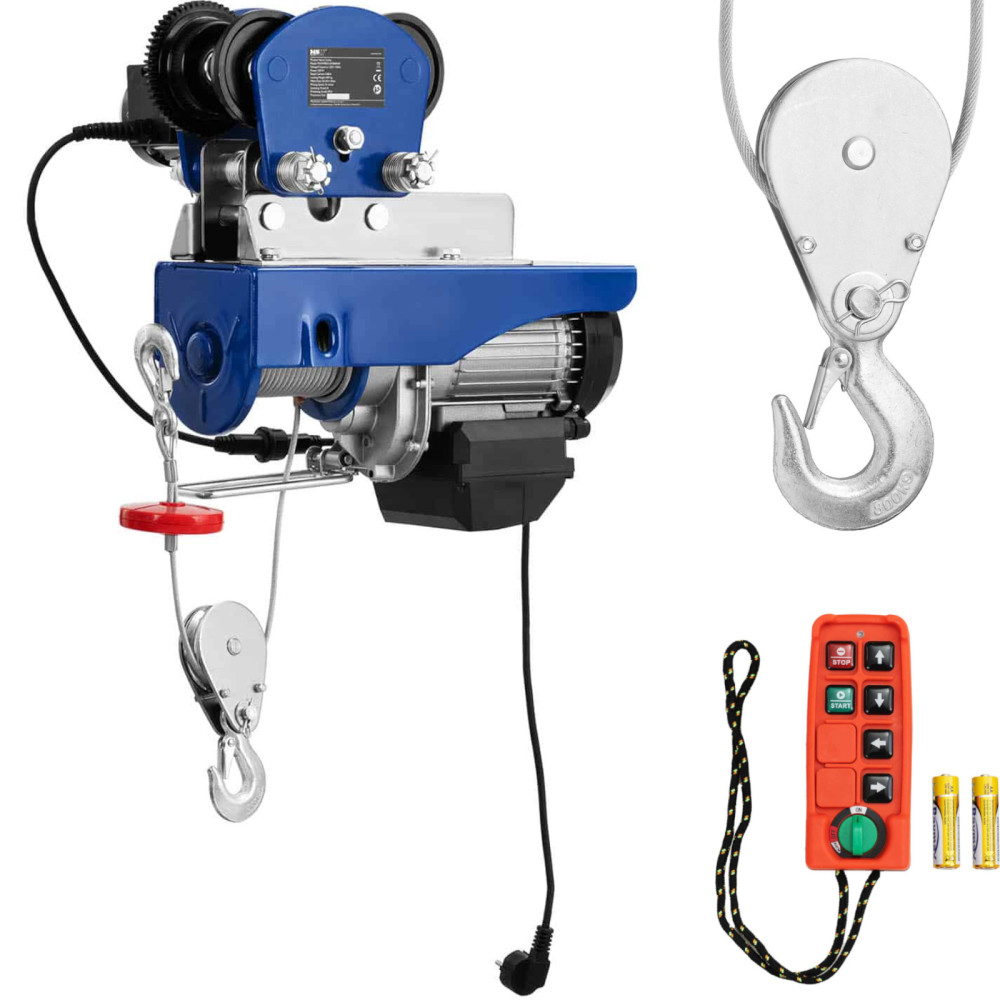

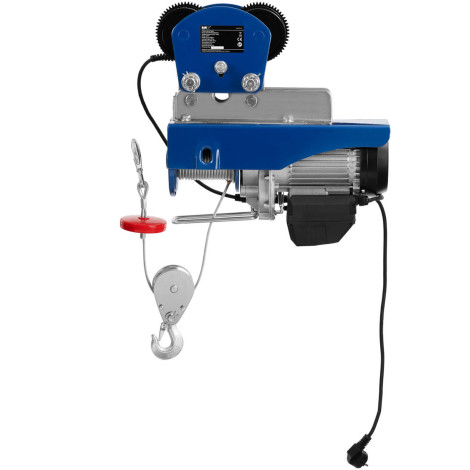

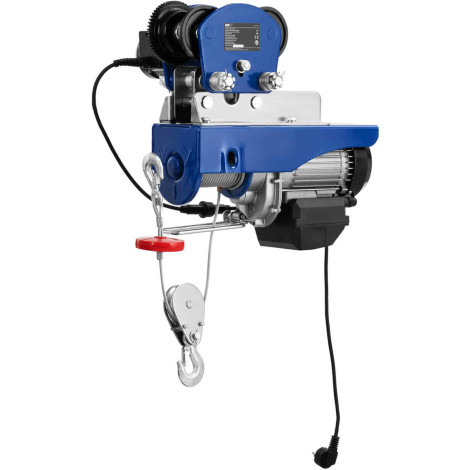

Brand winch MSW Allows you to raise and move heavy loads in a warehouse or workshop. Ideally suited for professional use in factories, industry, recycling plants or shipyards and wherever you have to move large loads. Suitable for steel beams with a width of 68 - 110 mm. The 1350 motor engine in lifts loads of a weight of up to 400 kg to a height of 12 m. Lifting speed is 8 m / min. A steel line with a length of 12 m and a diameter of 5.1 mm tolers even intensive use. With a crane, you can also transport the beams with corners, if the bend radius is a minimum of 1 m. The crane moves at a speed of 0.96 km / h. After the assumption of the clamping lifting height decreases by half to 6 m and the lifting speed to 4 m / min. At the same time, its load increases to 800 kg. The device therefore has a double load capacity if it is used with a clad. The attached remote control allows you to control the distance. For safety, the device stops in the event of a power supply. The device has an IP54 protection class, it is resistant to dirt and water.
Product features:
  • - 1350 engine in transfers the load and is controlled by a wireless remote control,
  • - load capacity up to 800 kg,
  • - transfers loads at 8 m / min,
  • - high quality steel cable with a length of 12 m,
  • - Perfect for warehouses, garages, workshops, hangars and wherever heavy loads are transported.

Technical parameters:
  • - catalog number - 10062134
  • - article - New
  • - Model - MSW-Procat-800nw
  • - Material - Aluminum, Steel, Copper
  • - Color - Blue
  • - Tension [V] - 230
  • - IP protection degree - Ip54
  • - power [W] - 1350
  • - Maximum forward speed [km/h] - 0.96
  • - engine power [W] - 1350
  • - Time of break at work - S3 / 20% / 10 min
  • - Maximum lifting speed - 8 m / min
  • - load - 400 kg
  • - Rope length - 12 m
  • - Maximum load - 800 kg
  • - Maximum lifting height - 12 m
  • - Rope diameter - 5.1 mm
  • - lifting speed - without clad - 8 m / mn
  • - load capacity - without a clad - 400 kg
  • - Minimum curve radius - 1 m
  • - Lifting speed - with a clad - 4 m / mn
  • - load capacity - with a clad - 800 kg
  • - Maximum lifting efficiency - without a clad - 12 m
  • - Maximum lifting efficiency - with a clad - 6 m

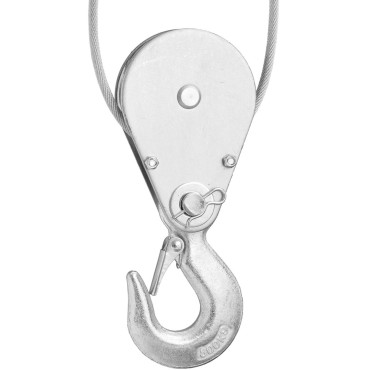

  • - Load hook - So

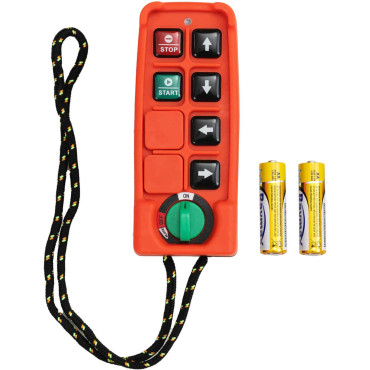

  • - pilot - So
  • - Emergency switch - So
  • - Bold with a hook - So
  • - clamp - attachment to the profile or swivel arm - So
  • - Dimensions (DXSXW) - 41 x 15 x 23 cm
  • - weight - 33.7 kg
  • - Dimensions and weight of shipping (DXSXW) - Box1 20 kg 50x30x21, Box2 16 kg 36x30x22

Included:
  • - electric winch with a crane
  • - pilot
