Manufacturer's code:

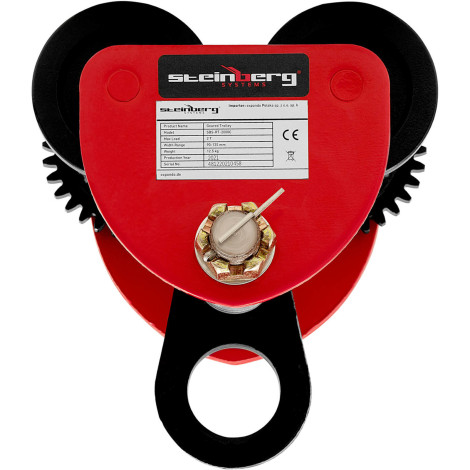

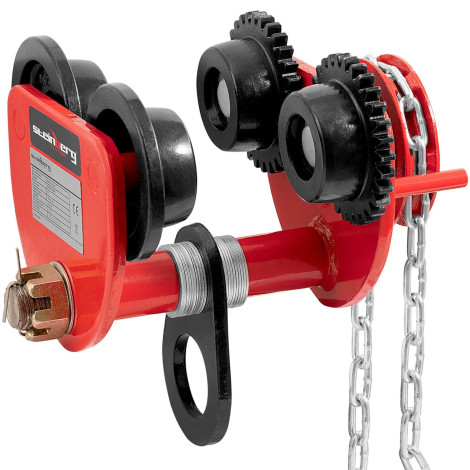

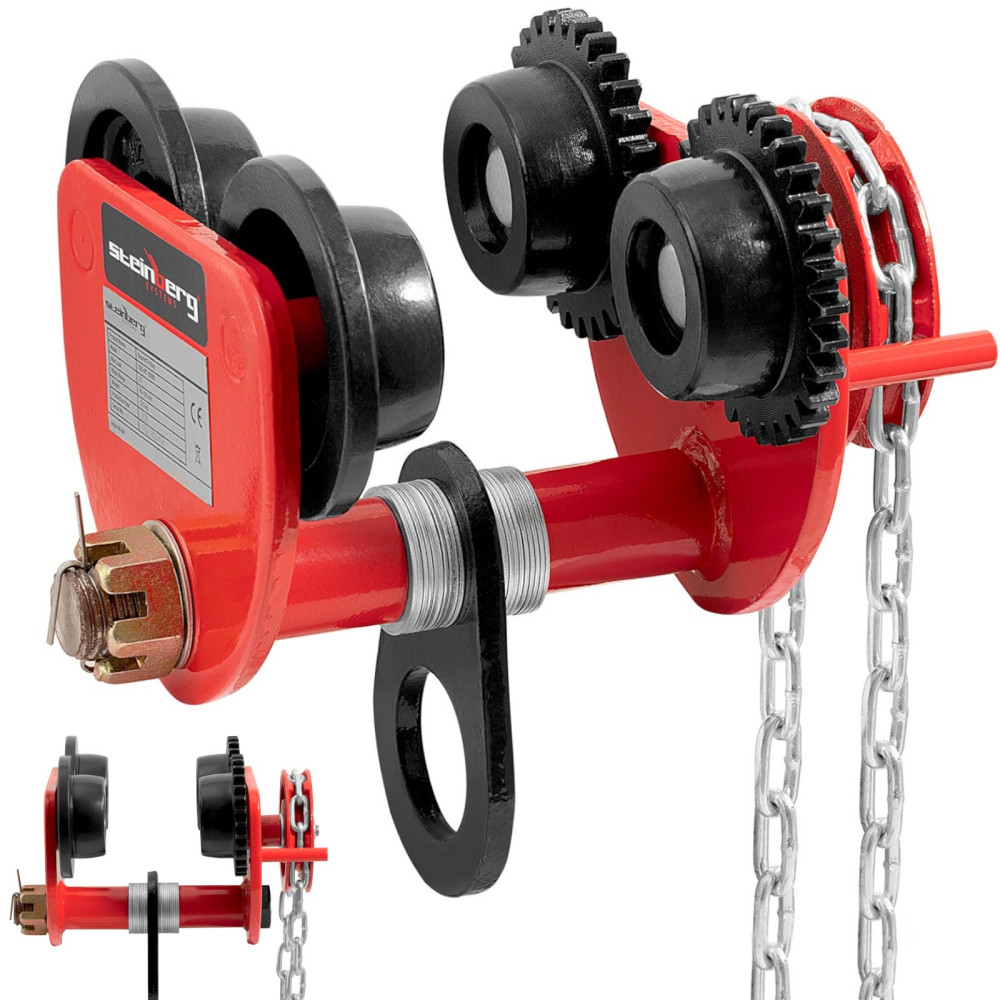

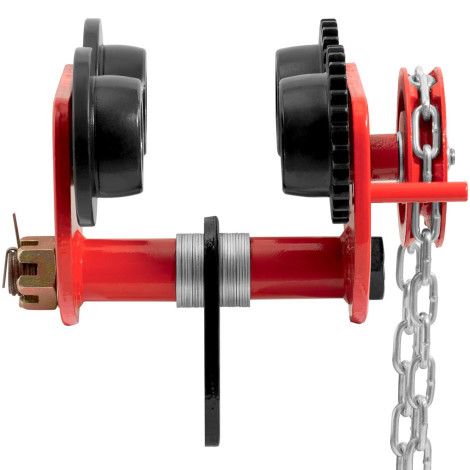

10030643Brand Conductive Trolley Steinberg Systems It allows you to easily transfer loads from point A to point B. will work for professional use in factories, industry, shipyards and wherever you have to move heavy items. The safety coefficient is
1,25x (Based on maximum load capacity).

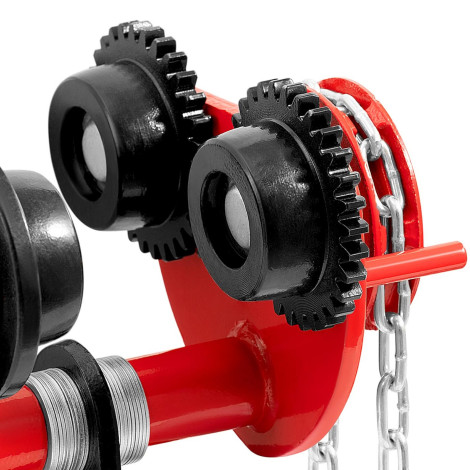

Four cast iron wheels They provide smooth and trouble-free operation. System
double rollers It has been designed in such a way that works both on straight, conical beams and on curved rails. The adjustment in the 90-135 mm range allows you to mount the trolley on various beams with a suitable width. The device is easy to install. Moving loads runs efficiently and conveniently.
Product features: - - durability up to 2000 kg,
- - Safety coefficient 1.25x,
- - made of high quality carbon steel with a solid construction,
- - adjustment in the range of 90-135 mm,
- - Easy assembly and service.
Technical parameters: - - Model - SBS-Rt-2000c
- - catalog number - 10030643
- - article - New
- - Wheels - 30 mm
- - chain length [mm] - 3000
- - Security factor - 1,25x
- - Material of the stem - Carbon steel # 45
- - adjustment range [mm] - 90-135
- - Max. Capacity [kg] - 2000
- - Dimensions (DXSXW) [cm] - 28 x 24 x 18
- - weight [kg] - 12,4
- - Dimensions of shipment (DXSXW) [cm] - 30 x 24 x 20
- - shipping weight [kg] - 12,9
Included: - - Conductive trolley
- - User manual
