Beam holder Clamp Mounting width 75-195 mm 1000 kg 1T

€61.18
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10030430

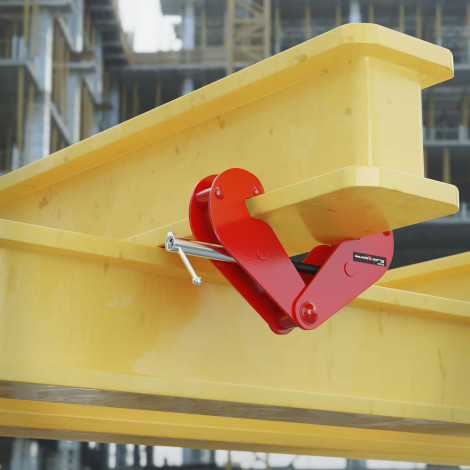

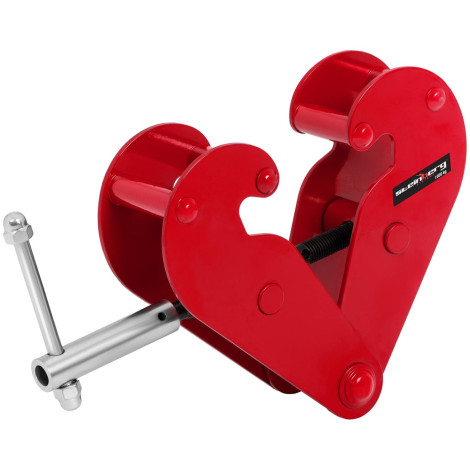

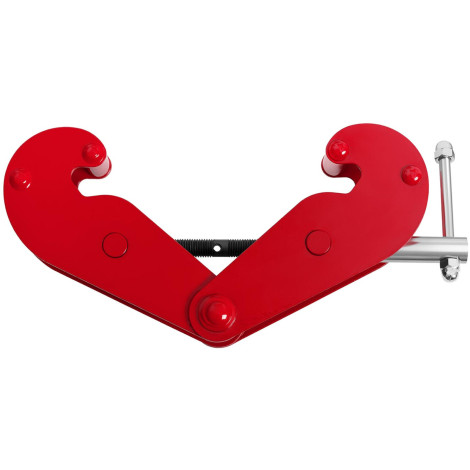

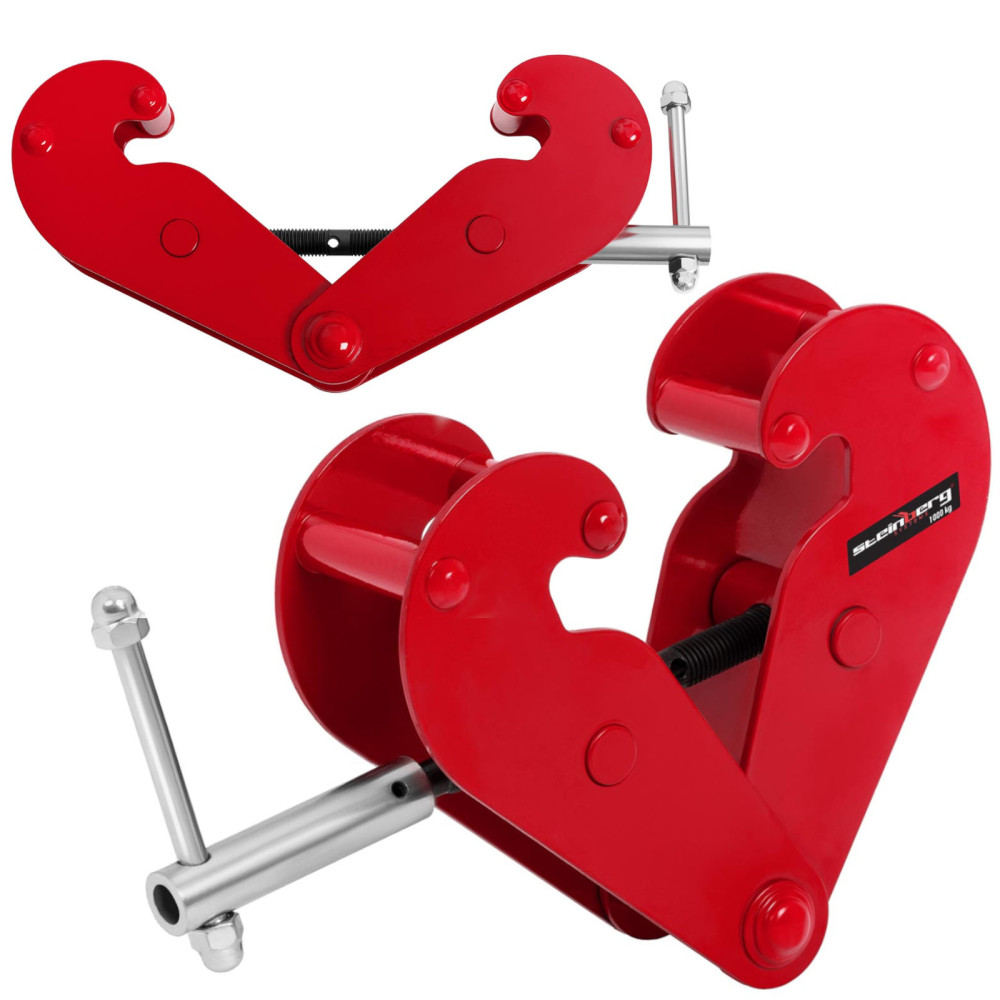

Brand cranometer clamp Steinberg Systems This serving tool For carrying girders and dualte high-weight up to 1000 kg. It will also be used to suspend, for example, wrappers on beams. The cranometer clamp will be used in industry, in factories, shipyards, steelworks, in recycling plants, on scrapies as well as in powder painter.
The clamp allows you to transfer weighing weighing even 1000 kg. Thanks Width adjustment in the range of 75-195 mm It is possible to easily adjust the device to various types of girders. It is mounted on cranes or load-bearing beams. The device was made of very durable steelIt has a coating protecting against corrosion. The safety coefficient is 1.25 max. Lifting capacity. The buckle is relatively light, which makes it easier to mount and transport.
Product features:
  • - The effectiveness of - load capacity up to 1000 kg, compact design,
  • - Strength - a solid steel frame,
  • - Protection - Safety ratio 1.25 max. lifting,
  • - Versatility - adjustable width,
  • - Durability - Security coating.

Technical parameters:
  • - Model - SBS-Tk-1000
  • - catalog number - 10030430
  • - state - New
  • - Maximum lifting capacity - 1000 kg
  • - Material - Steel
  • - range of terminal width - From 75 to 195 mm
  • - Dimensions (DXSXW) - 30.5 x 9.5 x 23 cm
  • - weight - 3.75 kg
  • - Dimensions of shipment (DXSXW) - 37 x 11.5 x 27.5 cm
  • - shipping weight - 4.25 kg

Included:
  • - cranometer clamp
  • - EN statement
