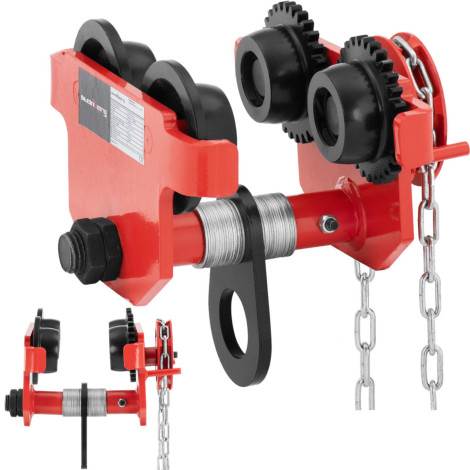

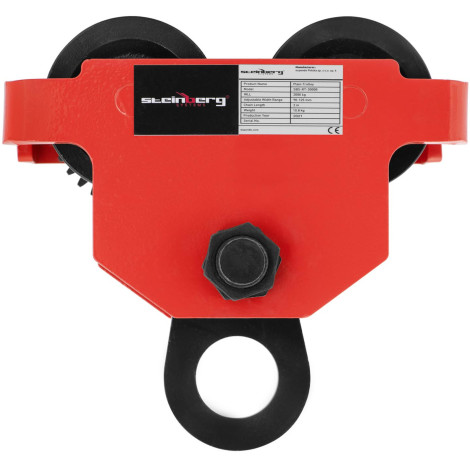

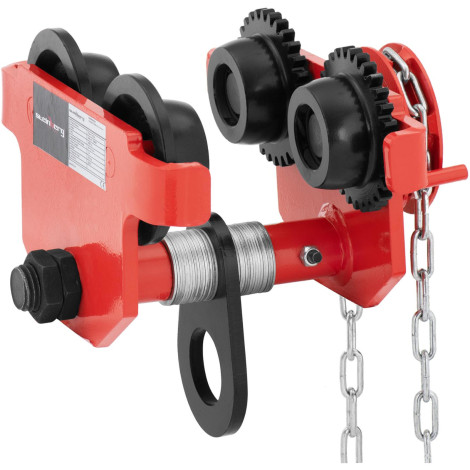

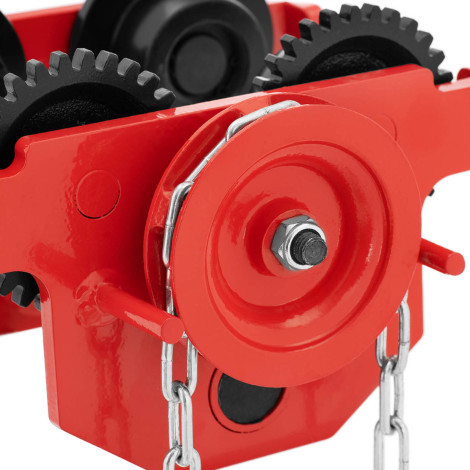

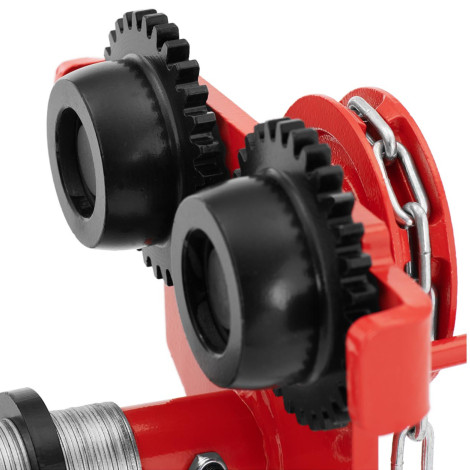

Hand-held handheldwood trolley with chain 90-125 mm 2000 kg

Manufacturer's code: 10030955
Steinberg cranes It allows you to easily transfer heavy loads to 2000 kg. The length of the chain is 3 m. The device's construction has been made of cast iron. The coating protects the device against corrosion. The stroller is characterized by Safety ratio 1.25x Based on maximum load capacity, it meets the highest standards and ensures smooth and trouble-free operation. The double rolling system has been designed in such a way that works both on beams straight, conical and also on curved rails. The collar adjustment in the 90-125 mm range allows you to easily and quickly mount it on beams with a suitable width. Moving heavy loads is efficient and efficient.
Product features:

• - load capacity up to 2000 kg, stable 3M long chain,
• - Safety coefficient 1.25x,
• - made of high quality cast iron and steel materials,
• - adjustable area of 90-125 mm collar,
• - Easy assembly and service.

Technical parameters:

• - Model - SBS-Rt-2000b
• - catalog number - 10030955
• - article - New
• - Tension [V] - -
• - Wheels - 4 x castle
• - chain length [mm] - 3000
• - Material - Żeliwo / Stal (Q235)
• - Security factor - 1,25
• - Material of the stem - Cast iron
• - adjustment range [mm] - 90-125
• - Max. Capacity [kg] - 2000
• - Dimensions (DXSXW) [cm] - 27 x 27 x 17.5
• - weight [kg] - 10,8
• - Dimensions of shipment (DXSXW) [cm] - 29 x 28 x 19
• - shipping weight [kg] - 13,4

Included:

• - Conductive trolley
• - User manual
