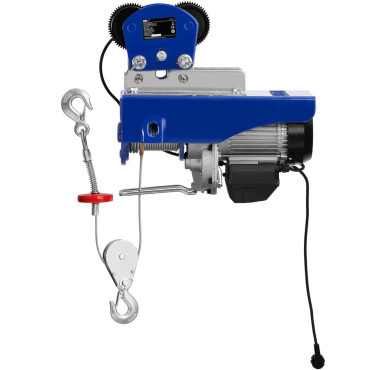

Electric winch with a 1600 cable crane in 12 m 500 kg

Manufacturer's code: 10062133

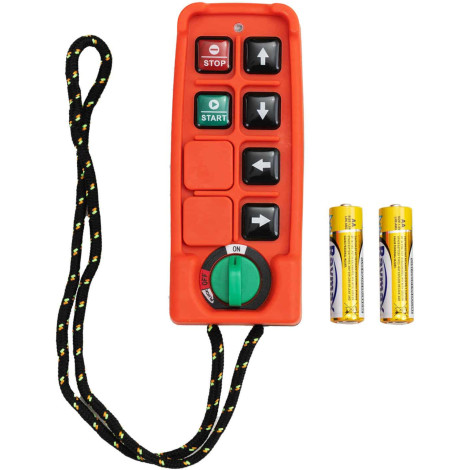

Brand winch MSW Allows you to raise and move heavy loads in a warehouse or workshop. Ideally suited for professional use in factories, industry, recycling plants or shipyards and wherever you have to move large loads. Suitable for steel beams with a width of 68 - 110 mm. 1600 engine engine lifts loads up to 500 kg to a height of 12 m. Lifting speed is 8 m / min. The steel line with a length of 12 m and a diameter of 5.6 mm tolers even intensive use. With a crane, you can also transport the beams with corners, if the bend radius is a minimum of 1 m. The crane moves at a speed of 0.96 km / h. After the assumption of the clamping lifting height decreases by half up to 6 m and lifting speed up to 4 m / min. At the same time, its load increases up to 1000 kg. The device has therefore Double-greater load capacity If you use a clad. The attached remote control allows you to control the distance. For safety, the device stops in the event of a power supply. The device has an IP54 protection class, it is resistant to dirt and water.
Product features:

• - 1600 motor in transfers the load and is controlled by a remote control,
• - load capacity up to 1000 kg,
• - raises loads at 8 m / min,

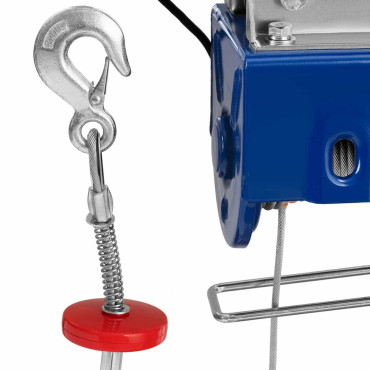

• - high quality steel cable with a length of 12 m,
• - Perfect for warehouses, garages, workshops, hangars, etc.

Technical parameters:

• - catalog number - 10062133
• - article - New
• - Model - MSW-Procat-1000nw
• - Material - Aluminum, steel, copper
• - Color - Blue
• - Tension [V] - 230
• - IP protection degree - Ip54
• - power [W] - 1600
• - Maximum forward speed [km/h] - 0.96
• - engine power [W] - 1600
• - Time of break at work - S3 / 25% / 10 min
• - Maximum lifting speed - 8 m / min
• - load - 500 kg
• - Rope length - 12 m
• - Maximum load - 1000 kg
• - Maximum lifting height - 12 m
• - Rope diameter - 5.6 mm
• - lifting speed - without clad - 8 m / mn
• - load capacity - without a clad - 500 kg
• - Minimum curve radius - 1 m
• - Lifting speed - with a clad - 4 m / mn
• - load capacity - with a clad - 1000 kg
• - Maximum lifting efficiency - without a clad - 12 m
• - Maximum lifting efficiency - with a clad - 6 m
• - Load hook - So
• - pilot - So
• - Emergency switch - So
• - Bold with a hook - So
• - clamp - attachment to the profile or swivel arm - So
• - Dimensions (DXSXW) - 50 x 17 x 28 cm
• - weight - 44.6 kg
• - Dimensions of shipment (DXSXW) - 91 x 65 x 47 cm
• - shipping weight - 46.7 kg

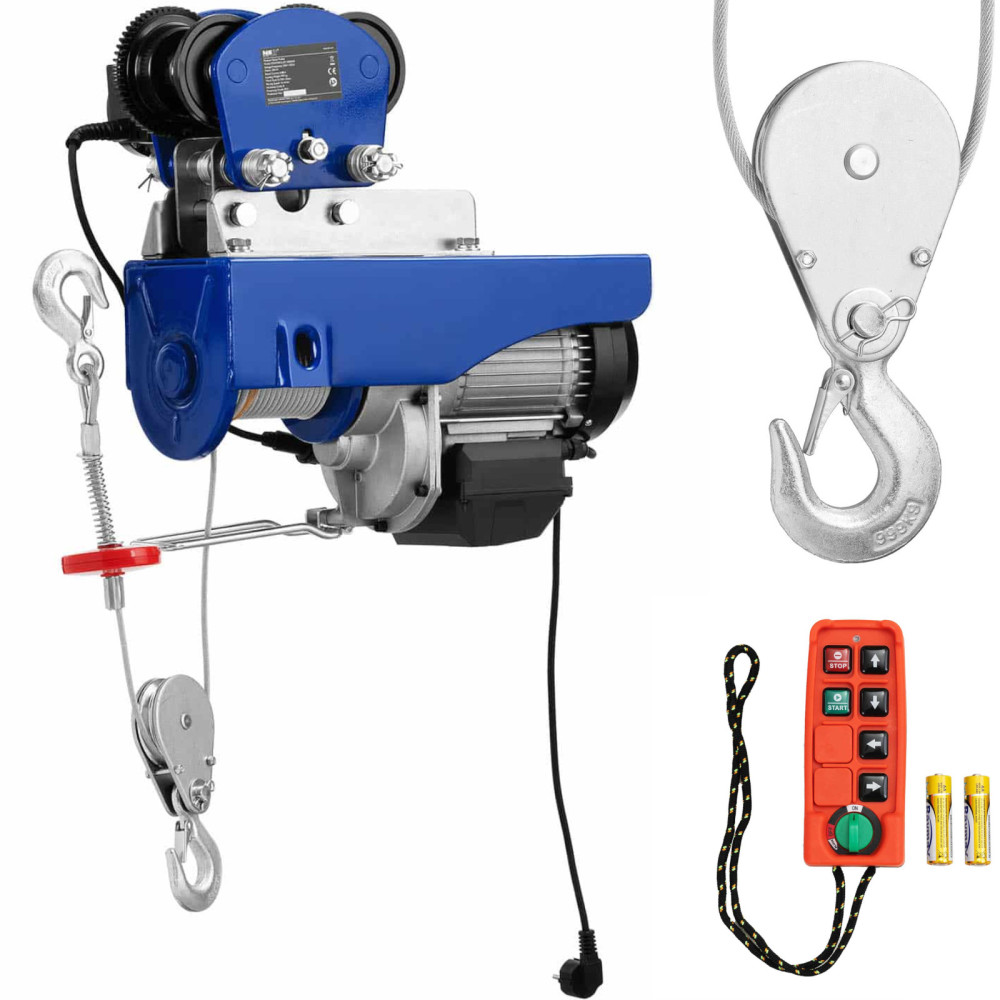

Included:

• - Winch with a crane
• - pilot
