Hand-held hand-held stroller suspended with chain 65-110 mm 3 m 1000 kg 1 t

Manufacturer's code: 10030675

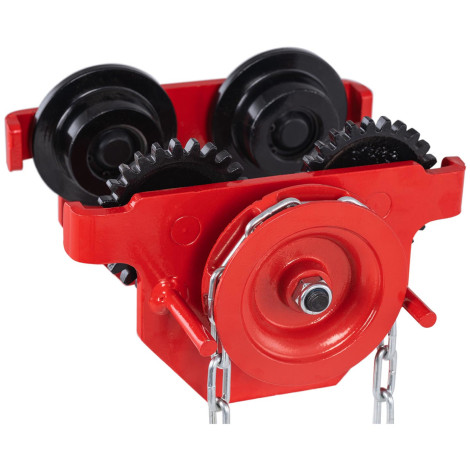

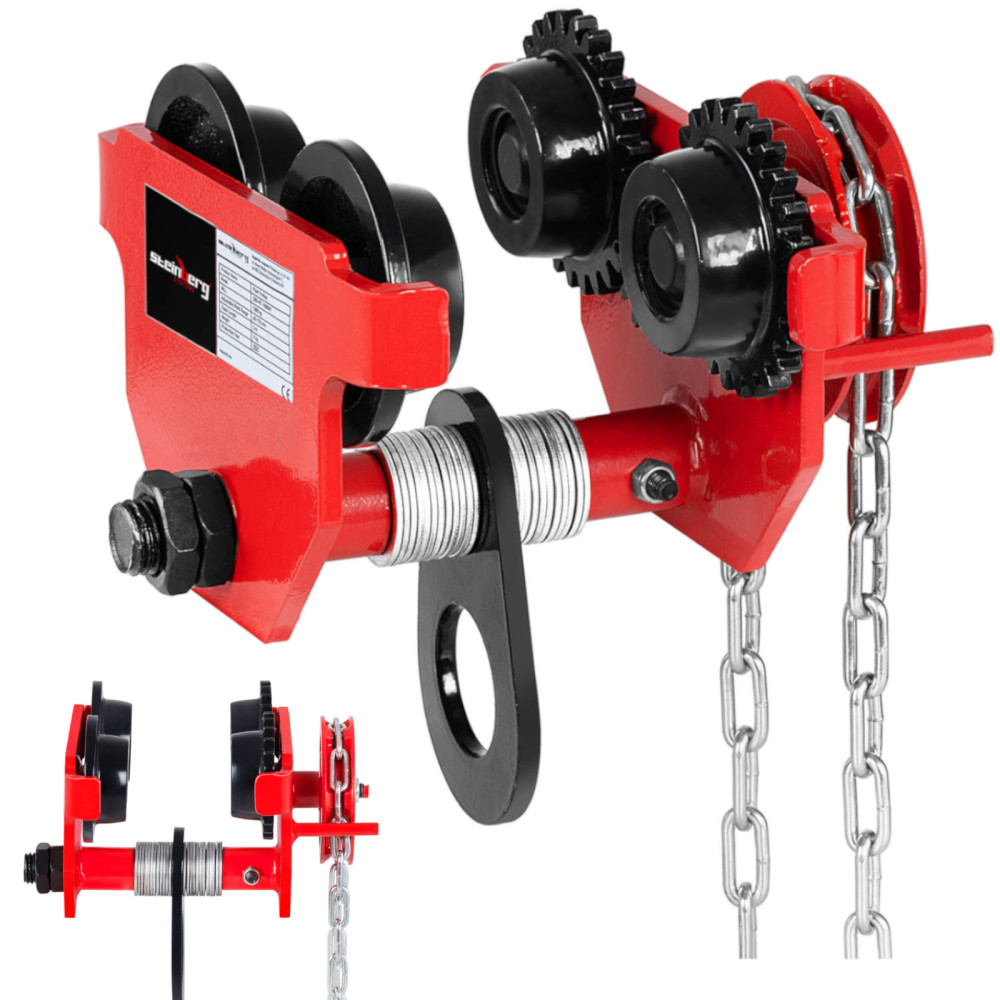

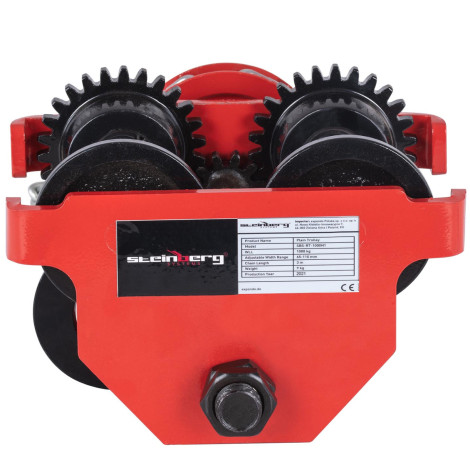

Cropper brand Steinberg Systems This device for moving heavy loads in a straight line, e.g. on the dualte. Capacity is up to 1000 kg (Do not exceed it!). Adjustment range in the range of 65-110 mmand thanks to the rims it is possible to move after curved profiles. The free spacing of the tensioning wheels to the crane ensure shafts without axis. This eliminates the phenomenon of friction, which translates into a longer service life and lighter service. Special tread It allows slope in relation to the plane above 1: 6 or below 1: 6. In the set of a chain Length 3 meters. Trolley made of carbon steel, additionally covered with a protective coating that protects against corrosion. Four cast-iron They provide simple and quick movement.
Product features:

• - Equipment about the load capacity up to 1000 kg,
• - Chain o 3 m long,
• - Safety factor 1,25,
• - Adjustment in the field 65-110 mm,
• - Possibility of moving after curved profiles.

Technical data:

• - catalog number - 10030675
• - article - New
• - producer - Steinberg Systems
• - Model - SBS-Rt-1000n1
• - adjustment range [mm] - 65-110
• - chain length [mm] - 3000
• - Material of the stem - Coal steel Q235
• - Max. Capacity [kg] - 1000
• - Security factor - 1,25
• - Wheels - 4 x cast iron wheel
• - Dimensions (DXSXW) [cm] - 22 x 24 x 15
• - weight [kg] - 18.7
• - Dimensions of shipment (DXSXW) [cm] - 29 x 25 x 18
• - shipping weight [kg] - 19.9

Included:

• - crane trolley,
• - Operating instructions.
