Crane with winch PROCAT 800 for 800kg

€399.58
Tax included
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's code: 10060013

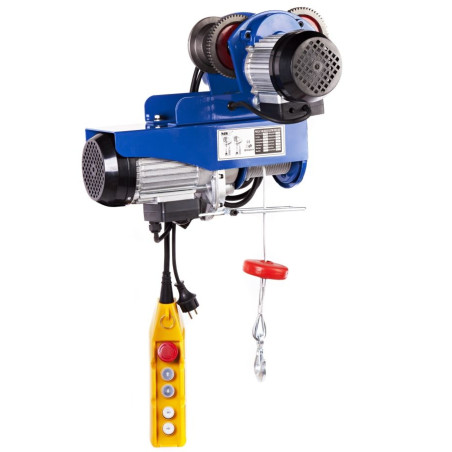

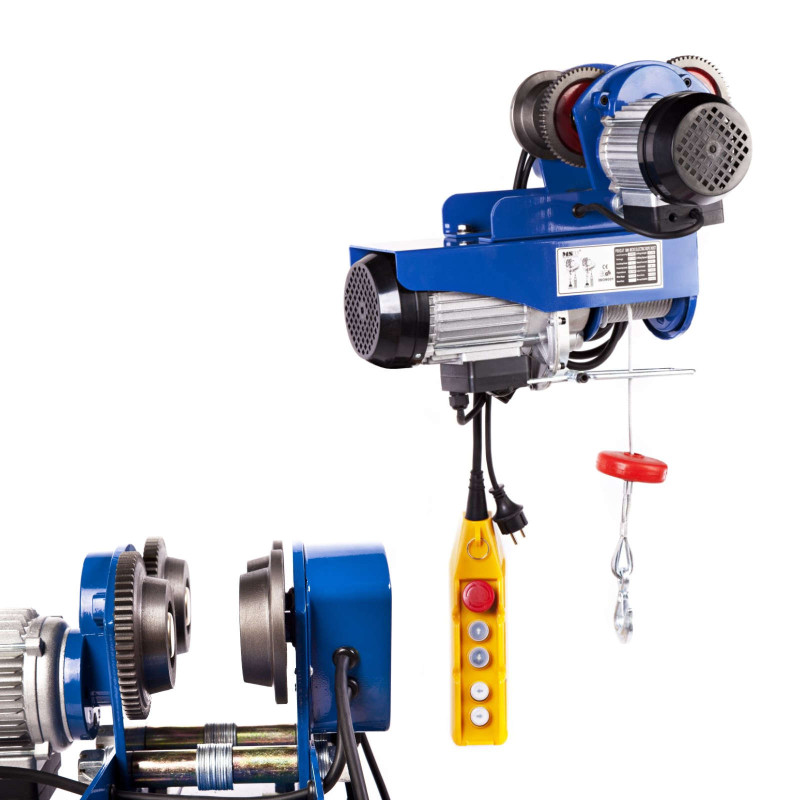

Electric winch with a crane MSW It will be ideal in large warehouses or enclosed rooms and outside. Thanks to a fast gantry of 13 m / min, you can carry loads even on bend beams, provided that the arc radius is at least 1 m. The electric winch is equipped with a stable steel rope with a length of 12 m and load capacity of 400 kg. It was made of steel from CK45 and is resistant to torsion and consumption, which affects its exceptional durability. All you need to do is use a barley to increase the load capacity up to 800 kg. The lifting height will then amount to 6 m and the lifting speed will decrease by half from 8 to 4 m / min. There is a safety lock on the hook. Thanks to the overload protection, the winch will work reliably for a long time, and the 1800 motor motor will not overheat. Electromagnetic braking system will guarantee a quiet operation. Easy access to the load from all sides will be possible due to a 360DEG rotated hook, you can use the 2,4-meter wired remote control. ProCat 800 winch You can attach to a steel beam with a width of 68 - 94 mm and a height of at least 110 mm. These can be broad-class beams, teakers or dualtees.
Product features:
  • - raises weights up to 800 kg,
  • - easier access to the load, hook can be rotated by 360deg,
  • - Lifting speed 8 m / min without and 4 m / min with grain,
  • - a turning gantry is also suitable for bunneal beams,
  • - Wired remote control with a length of 2.4 m with stress reduction.

Technical parameters:
  • - catalog number - 10060013
  • - article - New
  • - Model - ProCat 800
  • - Color - Blue
  • - Tension [V] - 230
  • - Rope material - CK45 steel
  • - Gear grease type - Ep
  • - Electric motor - Isolation - Breakfast
  • - Motor of the gantry - Isolation - Breakfast
  • - Electric motor - Security class - Ip54
  • - Electric motor - operation in intermittent mode - S3 20% - 10 min
  • - Motor Motor - Security Class - Ip20
  • - Motor of the gantry - Interrupted operation - S3 20% - 10 min
  • - Load hook - So
  • - pilot - So
  • - Bold with a hook - So
  • - Rope length - 12 m
  • - Cable from the remote control - 2.4 m
  • - Moving speed - 13 m / mn
  • - Rope diameter - 5.1 mm
  • - Engine - Power - 1300 W
  • - Rope endurance - 2000 kg
  • - Motor of the Crane - Power - 540 W
  • - Average lowering speed - one-way extract - 9.6 M / MN
  • - Minimum curve radius - 1 m
  • - maximum lifting height - one-way extract - 12 m
  • - Average lifting speed - with a turnover roll - 4 m / mn
  • - Maximum lifting capacity - one-way extract - 400 kg
  • - Average lowering speed - with a feed roll - 4.8 m / Mn
  • - Maximum lifting height - with a return roll - 6 m
  • - Maximum lifting capacity - with a return roll - 800 kg
  • - Dimensions (DXSXW) - 49 x 41 x 41 cm
  • - weight - 35.5 kg
  • - Dimensions of shipment (DXSXW) - 53.2 x 48.2 x 49.2 cm
  • - shipping weight - 39.26 kg

Included:
  • - Rope winch with a crane
  • - electric winch
  • - Broadcast
