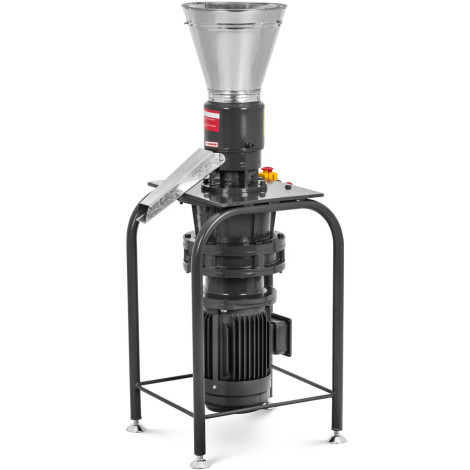

Peleciarka Press for the production of pellets sawdust PAS II 150 mm 100 kg / h 4000 W

Manufacturer's code: 10280621

Wiesenfield Marker It will allow to produce up to 100 kg of granules over an hour. You can also produce up to 60 kg of wood pellets from sawdust per hour. The raw material should be less than 6 mm. The pellet press is driven by a power engine 4000 in the 400 V powered voltage. Thanks to the working time up to 24 hours, even large amounts of granules can be made easily. The control panel is transparent and intuitive. O Safety will take care of the easily accessible emergency switch - just like a protective grille in a large lane for material administration. Regardless of whether it comes to a pellet or feed, the peleciarka will allow you to get an easy to store granules. The press is heated to 60 to 80 ° C. Two solid rolls are squeezed the material through the matrix with a diameter of 150 mm. In this way, a heavily-pressed pellet with a diameter of 6 mm is obtained. For the production of pellets, another diameter is needed by a suitable matrix. The practical unloading gutter will allow you to fill the finished product directly to the bags. NOTE: DC MATERIES AND MEDICAL SCREENS can be used up to 300 hours. If they are worn, replace them immediately.

Product features:

• - the pelleciary produces 6 mm diameter pellets for feeding, fertilization or heating,
• - at work time of 24 hours a pellet press manufactures up to 100 kg / h feed or up to 60 kg / h wood pellet,
• - the granulator engine for feed 4000 will ensure speed 1430 rpm,
• - thanks to heating to a temperature of 60 to 80 ° C, the Capper will guarantee a longer durability of granules,
• - Large funnel, stable legs and compact construction, these are the advantages of this desert.

Technical parameters:

• - catalog number - 10280621
• - article - New
• - Model - -Knows pm-3400
• - Power type - Network
• - Material - Carbon steel, Cast iron
• - Color - Gray
• - Tension [V] - 400
• - IP protection degree - Ip55
• - Size of the load box [mm] - 300
• - Feed production efficiency [kg/h] - 60 - 100
• - power [W] - 4000
• - Number of matrices - 1
• - Production efficiency with sawdust [kg/h] - 40 - 60
• - Diameter of the matrix hole [mm] - 6
• - Continuous working time [h] - 24
• - Insulation class - F
• - Protection class - And
• - operating temperature range [°C] - 60 - 80
• - Device work cycle - S1 (continuous work)
• - Maximum power - 4 kw
• - Diameter of the matrix - 150 mm
• - Size of the matrix holes - 6 mm
• - Emergency switch - So
• - rotational speed [obr./min] - 1430
• - Dimensions (DXSXW) - 57.5 x 45.5 x 127.5 cm
• - weight - 141.15 kg
• - Dimensions of shipment (DXSXW) - 107 x 57 x 61 cm
• - shipping weight - 160 kg

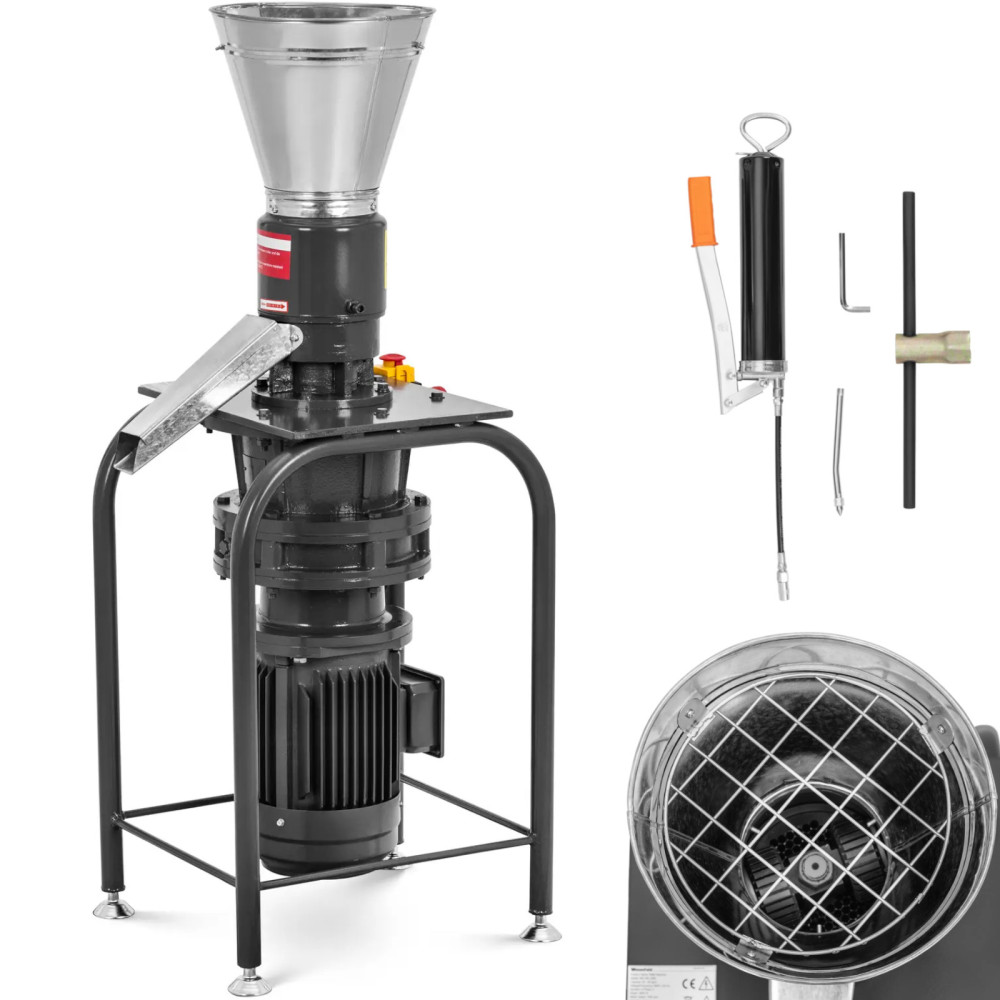

Included:

• - WIE-PM-3400 WELCLEKER
• - Mounting accessories
• - No plug in the set
