Lifter for slugs for slurry pellets 1.4 m 1000 kg/h

Manufacturer's code: 10280609

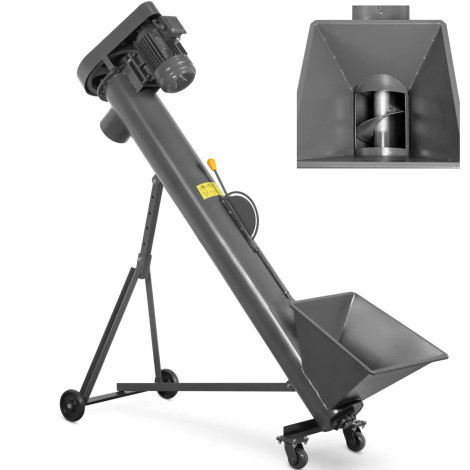

Wiesenfield's worm tray transporter up to 1000 kg loose material per hour. Letsgle Height differences up to 1.4 m and evenly transfer raw material to the pellet press or other systems. Thanks to the economical activity and compact design, the screw conveyor will be useful in places with a limited space. The device is placed on A solid frame with four wheelsSo you will easily move to the place of use. The height is changed by setting the screw conveyor at different angles. In this way you will transport materials on the height 110, 116, 122, 128, 134 or 140 cm. The pouring pour is extremely large and has Dimensions 54 x 54 x 44 cmThanks to which the material is downloaded quickly and efficiently. You specify the amount of raw material by changing the size of the shaft. The adjustable sieve catches larger particles, such as bark and twigs. This will guarantee the uninterrupted transport of loose materials. Integrated with a screw conveyor The mixing tank will maintain the grain etc. in the loose state and prevent the device to prevent. The screw feed is made of Coal steel with a thickness of 3 mmSo it is extremely durable and durable. This minimizes maintenance work on the device and shortens downtime in the company.
Product features:

• - a screw feeder with a wide pouring pour for large amounts of loose products,
• - the amount of hot conveyor filling the conveyor you specify by changing the size of the shaft hole,
• - a screw transporter thanks to a small size is suitable for use in limited spaces,
• - a screw feeder with a variable inclination angle for height 110, 116, 122, 128, 134 or 140 cm,
• - Transports pellets, sawdust, grain and similar products.

Technical parameters:

• - catalog number - 10280609
• - article - New
• - Model - -Knows sc-100
• - Device work cycle - S1
• - frequency [Hz] - 50
• - pipe length - 2 m
• - wall thickness pipe [mm] - 3
• - Insulation class - F
• - IEC protective class - And
• - Color - Gray
• - Wheels - So
• - Material - Carbon steel
• - power [W] - 2200
• - Tension [V] - 400
• - Nominal speed [obr./min] - 1400
• - Production [kg/h] - 80 - 1000
• - Power cord - 3 m
• - adjustable height - 110 - 140 cm
• - Power type - Network
• - wheel size [mm] - 35 x 150/45 x 80
• - IP protection degree - Ip55
• - pipe diameter [mm] - 220
• - Spiral diameter - 190 mm
• - plug - 5-pin
• - Emergency switch - So
• - dimensions - Feeding: 54 x 54 x 44 cm / ejection funnel: Wed. 170 mm
• - overload protection - So
• - Dimensions (DXSXW) - 203 x 70.5 x 203 cm
• - Dimensions of shipment (DXSXW) - 228 x 61 x 81 cm
• - weight - 127.5 kg
• - shipping weight - 169 kg

Included:

• - spiral feeder
