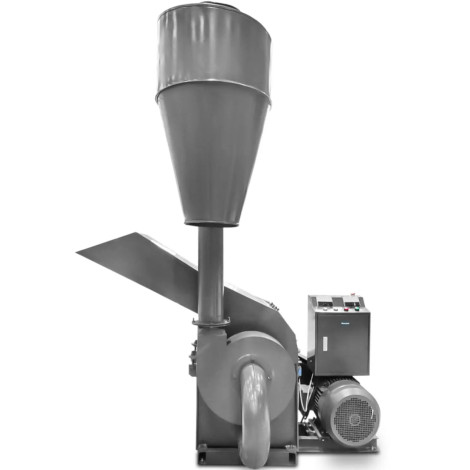

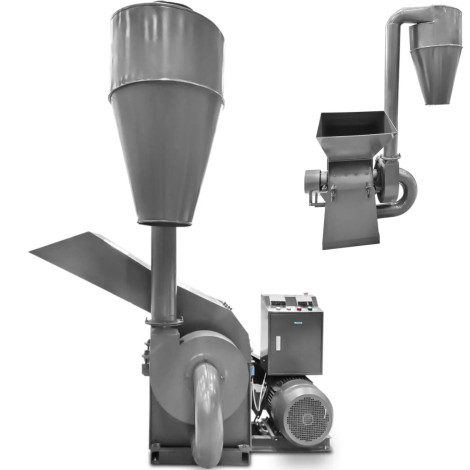

Mill of the Boiler Cruster for SawCin pellet 1800 kg / h 22 kW

Manufacturer's code: 10280328
Mill of the Wiesenfield brand This is an efficient machine that shreds a wide range of grain size materials that can be easily processed. It will work for cereals, straw, lucernes or wood chips. The glamor obtained is suitable for the production of animal feed or for the production of wood pellets. With the output power 22 kW motor with speed 2982 rpm drives 24 hammers in the mill. Production efficiency is 800 - 1800 kg / h And depends on the type of grain or raw material and moisture content in the material. To get the best results, humidity should not exceed 15%. Grains are strangled to the external sieve by centrifugal forces acting on the mill during grinding. The size of the SITA opening determines how thick they will have a grinder. For the biject mill, holes are available Sizes 4 and 6 mm. Ready milling is deliberately filled by the cyclone. The shredder impresses the ease of use, a large tank and a solid construction. This allows you to produce and process large amounts of ground material. A stable base guarantees safe operation.
Product features:

• - crushing cereals, straw, wood chips, alfalfin and this similar raw materials for the production of pellets,
• - the 22 kW engine reaches a speed of 2982 rpm,
• - high efficiency, depending on the raw material and humidity MIELE 800 - 1800 kg / h,
• - various grain sizes thanks to situ measures 680 x 280 mm and the size of the openings 4, 6 mm,
• - A stable basis and a controlled reproach through the cyclone.

Technical parameters:

• - catalog number - 10280328
• - article - New
• - Model - -Knows pm-2900
• - frequency [Hz] - 50
• - Material - Carbon steel, cast iron
• - Color - Gray
• - Production [kg/h] - 800 - 1800
• - Sieve dimensions [mm] - 680 x 280
• - SIT hole diameters [mm] - 4, 6
• - Angle adjustment [deg ] - 180
• - FAZ range - 3 phases 380v / 50 V
• - Mesh hole diameter [mm] - 2 - 10
• - Permissible humidity of the measured surface [%] - 8 - 15
• - Maximum power - 22 kW
• - Number of rolling hammers - 24 PC
• - engine speed [obr./min] - 2982
• - Dimensions (DXSXW) - 160 x 90 x 222 cm
• - weight - 472.5 kg
• - Dimensions of shipment (DXSXW) - 272 x 199 x 190 cm
• - shipping weight - 534.5 kg

Included:

• - Bending mill
• - cyclone
• - Short metal tube
