Hydraulic cylinder hydraulic action 30 mm 20 t

Manufacturer's code: 10062823

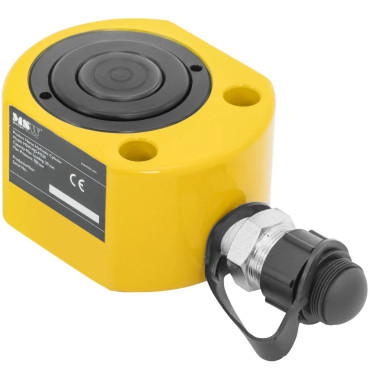

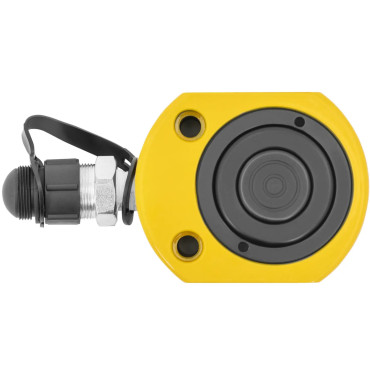

Exceptionally flat hydraulic hydraulic actuator MSW A height of only 57 mm and a piston stroke 30 mm is an ideal solution for working under limited conditions. The hydraulic cylinder offers an impressive load capacity: the smallest piston with a diameter of 30 mm will force 5 t, and the largest 50 mm in diameter will be a load of up to 20 tons. The hydraulic hydraulic actuator will precisely raise and withdraw the piston with a working pressure of up to 700 bar, which makes it extremely versatile. It will work in construction, industry or other demanding tasks. 3/8 '' (NPT) connector for a quick and secure connection will allow various hydraulic equipment. This will limit this downtime and simplify integration with existing hydraulic systems. The high-quality steel pump has a protective plastic coating. It corresponds to excellent resistance to wear and corrosion even in demanding conditions. The hydraulic actuator is also equipped with four seals that provide additional safety and durability - ideal for intense high-pressure uses.

Product features:

• - an extremely flat hydraulic actuator with only 57 mm height and a pitch 30 mm are ideal for operation in tight places,
• - Hydraulic cylinder 5 t capacity on a piston with a diameter of 30 mm and 20 t on a piston 50 mm,
• - two-sided hydraulic actuator to 700 bar with lifting and reversing function to many tasks,
• - hydraulic piston has a corrosion-resistant surface that protects against environmental influences and extends life,
• - Fast and secure assembly of the hydraulic lifting actuator thanks to 3/8 "(NPT) threaded connector.

Technical parameters:

• - catalog number - 10062823
• - article - New
• - Model - MSW-Hjs-ms20
• - Material - Alloy steel, powder coated steel
• - Color - Yellow
• - load - 5 t (30 mm) / 20 t (50 mm)
• - jump height [mm] - 16 + 14
• - head diameter [mm] - 30/50 mm
• - connector type - 3/8 '' NPT
• - Working surface [cm] - 19,6
• - oil tank capacity - 41 ml
• - stroke - 30 mm
• - Maximum working pressure - 700 bar
• - Cylinder height - 57 mm

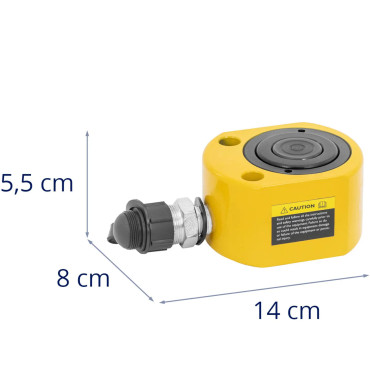

• - Dimensions (DXSXW) - 14 x 8 x 5.5 cm
• - weight - 2.8 kg
• - Dimensions of shipment (DXSXW) - 18 x 11 x 8 cm
• - shipping weight - 3.3 kg

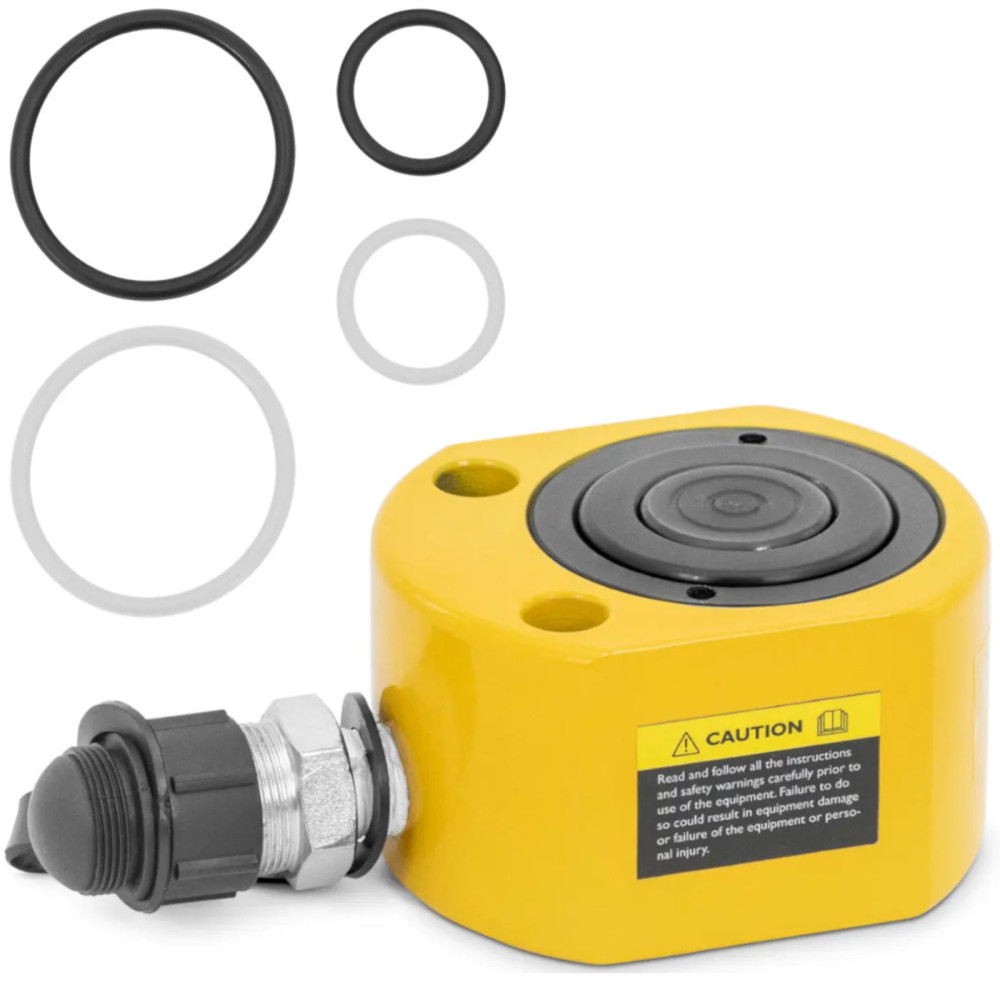

Included:

• - hydraulic actuator

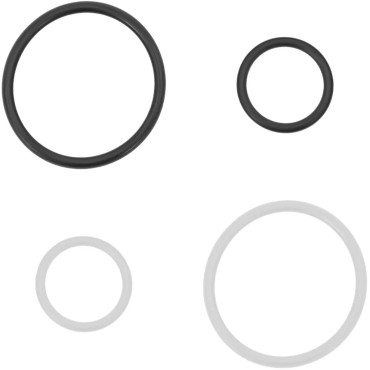

• - 4 gaskets
