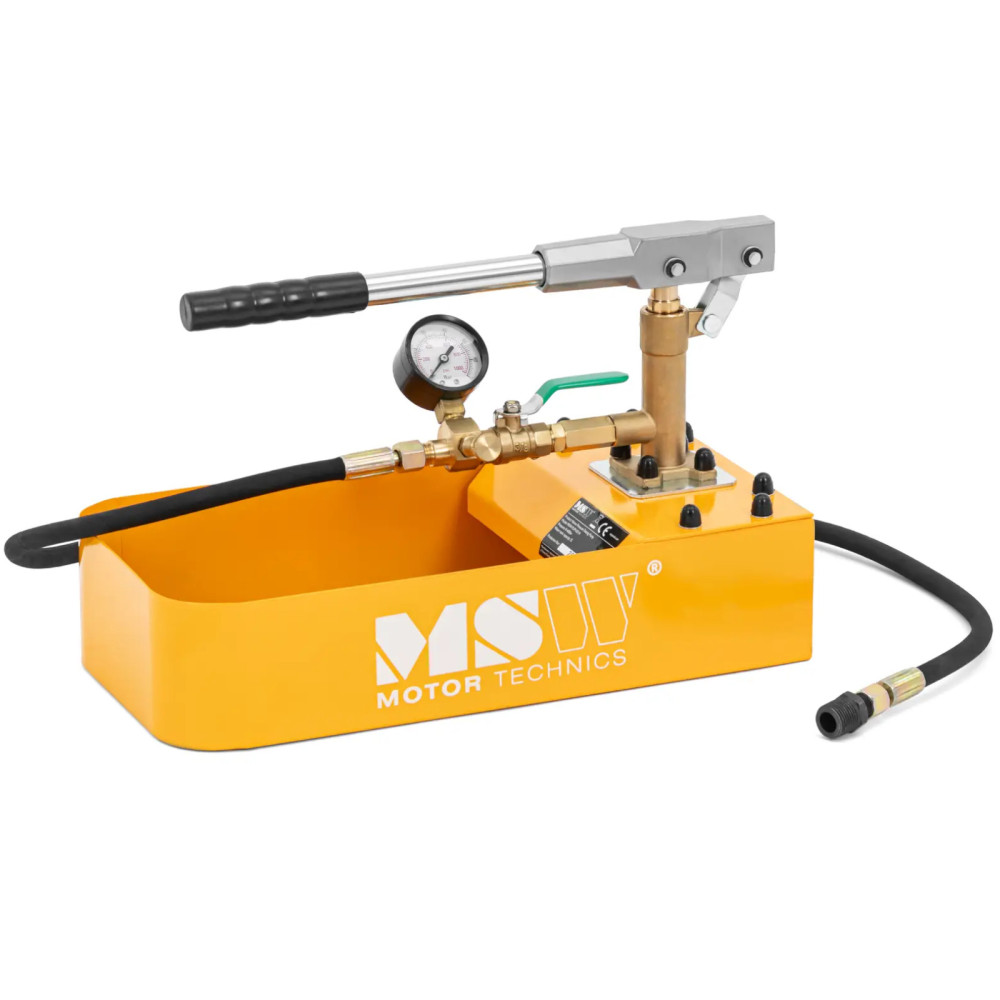

Pump for pressure tests 2 Valves 16 ml 60 bar 7 l

Manufacturer's code: 10062912
Pump for pressure trials MSW It will work during regular installation or maintenance of pipe installations in residential and industrial buildings. The maximum pressure of 60 bar will allow thoroughly and reliably carry out tests in sanitary and heating installations. The control pump has two copper valves for precise pressure regulation. In addition, a double valve system and a self-test function will provide accurate and safe results. Pressure hose with a length of 1.1 m will take care of high freedom of movement. The pressure level in PSI, Bars and MPa can easily be read on the inclined manometer. The integrated 7-liter water tank will allow even longer attempts without re-filling. Thanks to the flow 16 ml, the pump to stroke the pump will increase the pressure in a controlled manner. It will not only achieve accurate results, but also to ensure that the device will work safely. The compact and intuitive design will make the pressure test to be extremely easy to use. In addition, it can be seamlessly taken with you in different places. A solid steel housing will provide a long service life and excellent protection in demanding conditions.
Product features:

• - by means of a pump for a maximum pressure of 60 bar, you can perform demanding tests and get accurate results,
• - a 7 L water tank will allow long pressure tests without having to replenish,
• - thanks to a vacuum vaccance with 16 ml flow on the jump, the pressure can be gradually increased,
• - a compact design, a transport handle and a 1.1 m hose, allow for a convenient to use a pressure test,
• - A pressure pump for a durable steel housing will be even intensive use.

Technical parameters:

• - catalog number - 10062912
• - article - New
• - Model - MSW-Pum-021a
• - Material - Rubber, steel
• - Color - Yellow
• - Units - PSI / Bar / MPa
• - Connection - Ø1 / 2 "
• - water flow - 16 ml / jump
• - Hose length - 110 cm
• - Maximum pressure - 60 bar
• - water container capacity - 7 l
• - Dimensions (DXSXW) - 40 x 20 x 24.5 cm
• - weight - 3.85 kg
• - Dimensions of shipment (DXSXW) - 43.7 x 21.5 x 26.5 cm
• - shipping weight - 4.3 kg

Included:

• - Pump for pressure tests
• - handle
• - Gasket
• - Pressure hose
