Manufacturer number:

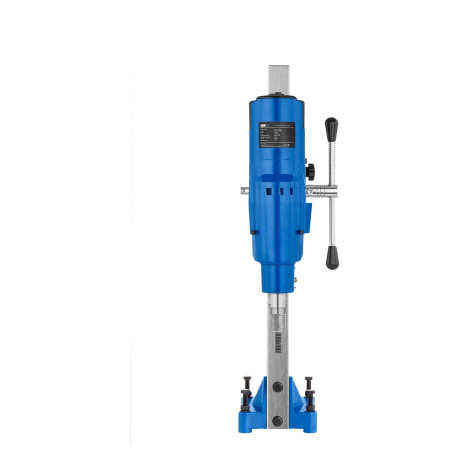

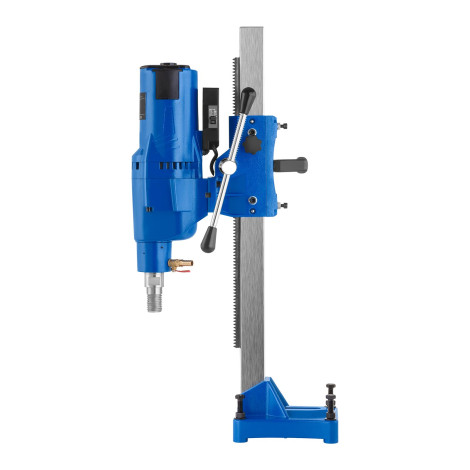

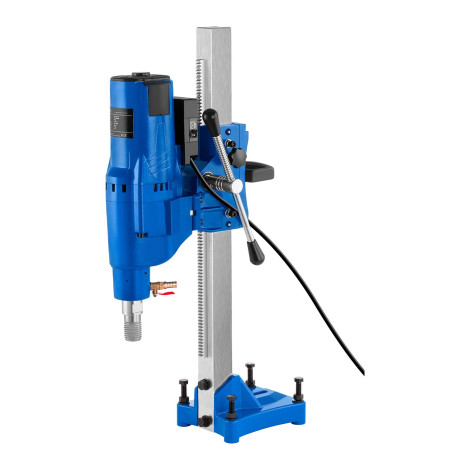

MSW 10060436Professional drilling machine MSW-Ddm205 Thanks to its solid construction, it will work in hard materials such as brick, concrete or stone. Motor
3900 power It guarantees efficient operation and drilling speed
up to 580 rpm. A convenient T-type handle allows for

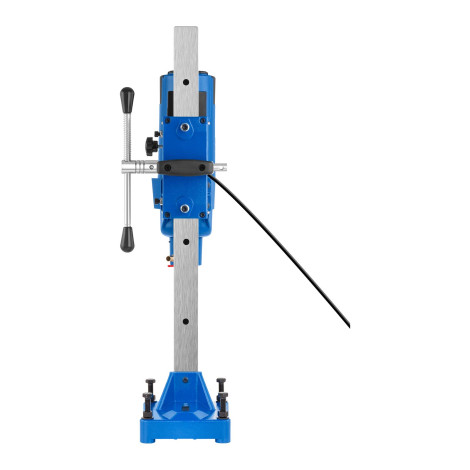

Regulation of boring depthand the guide provides smooth moving up and down
in the range 0 - 510 mm.
To increase work efficiency, drilling rigs are equipped with
Special fitting and hosewhich can be connected to an external device responsible for wet work. This will enable the lifespan of lace and reduce the risk of damage to the material workpiece. Fix the diamond lace to the device
With a diameter up to 205 mm.
Work safety for drilling rig provides

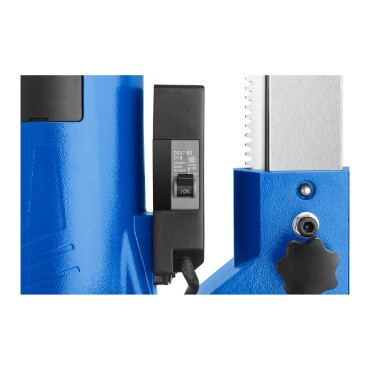

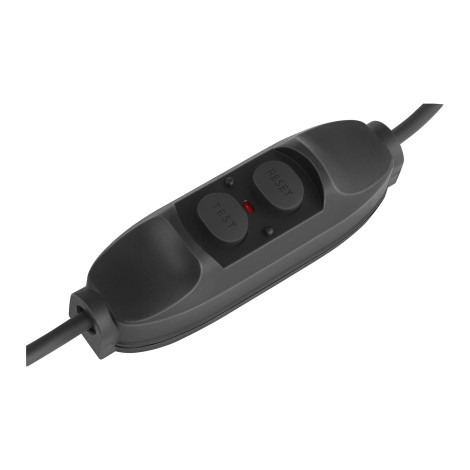

PRCD module (Differential cutter) Preventing the machine in case of short-circuit. It also guarantees that the device will not start uncontrolled when it is connected to a power source.
Product features: - - Reliability - a solid construction enables wet and dry work,
- - Multi-tasking - the possibility of drilling in various hard materials as brick, concrete, concrete reinforced or stone,
- - Versatility - compatibility with diamond drills up to 205 mm diameter,
- - Safety - Built-in PRCD module.
Technical parameters: - - Model - MSW-Ddm205
- - catalog number - 10060436
- - housing material - Aluminum, steel, plastic
- - power - 3900 W
- - voltage / frequency - 230v / 50hz
- - acoustic pressure - 70 dB (A)
- - acoustic power - 85 dB (A)
- - Max. Drilling diameter - 205 mm
- - Diameter of the drill bit - 1 1/4 "
- - Diameter of the water hose connection - 1/2 "
- - Hose length for water - 3.1 m
- - max. Rotational speed (no load) - 580 rpm
- - Range of the guide - 0-510 mm
- - dry and wet drilling - So
- - PRCD module - So
- - length of the power cord - 3.2 m
- - Dimensions (DXSXW) - 29 x 20 x 91.5 cm
- - weight - 20 kg
- - Dimensions of shipment (DXSXW) - 85.5 x 36 x 24 cm
- - shipping weight - 22.5 kg

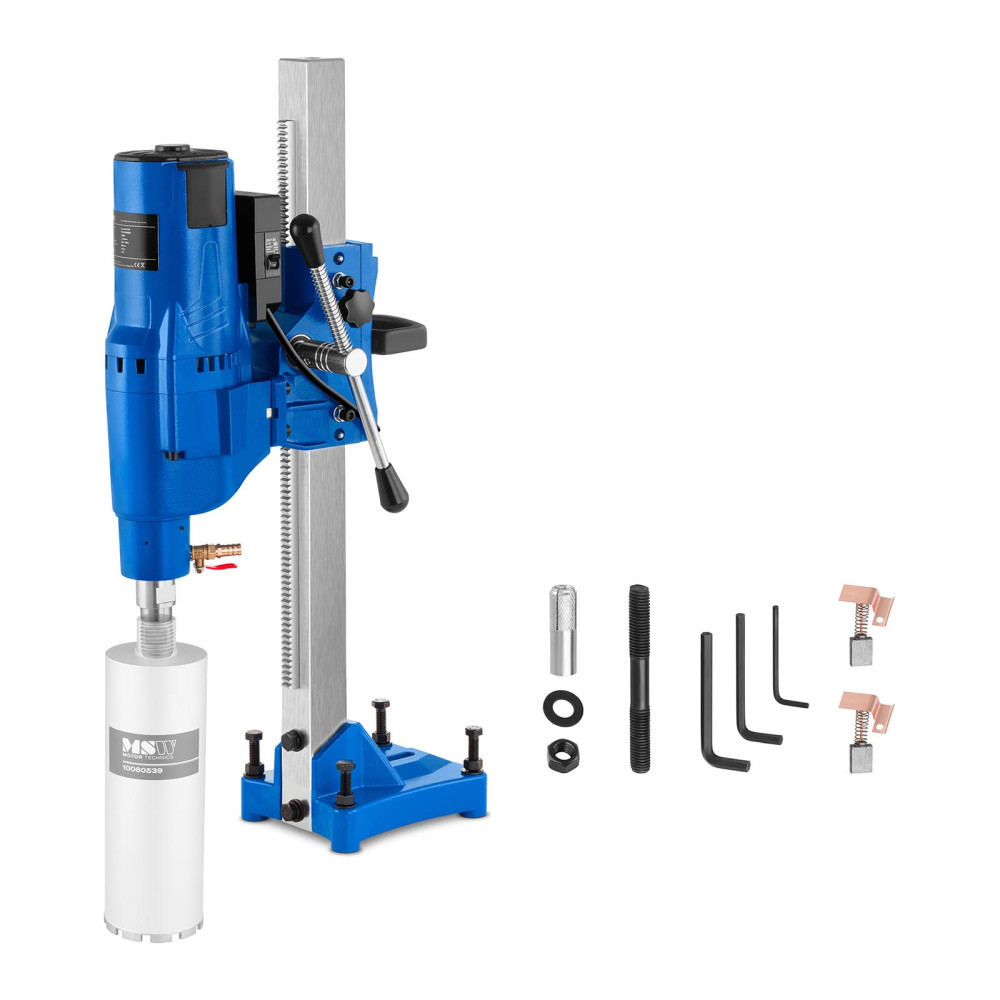

Included: - - Concrete drilling machine
- - water hose 3.1 m
- - Rotated handle

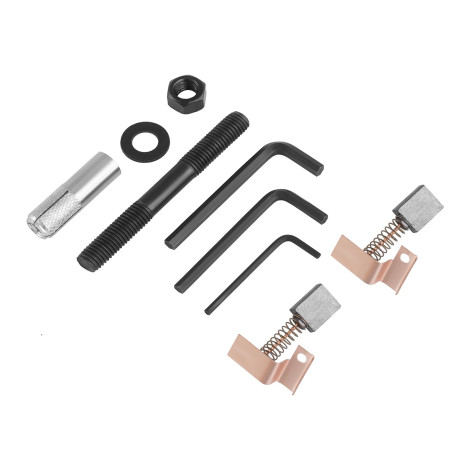

- - Allen keys - 3 pcs

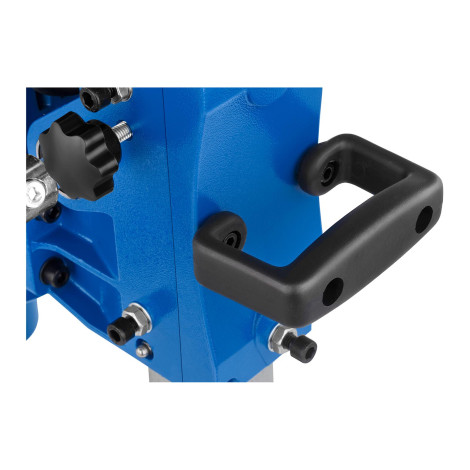

- - Rear guide handle
- - anchor screw
- - Carbon brushes - 2 pcs
- - power cord 3.2 M with PRCD safety module
- - EN statement
