Manufacturer number:

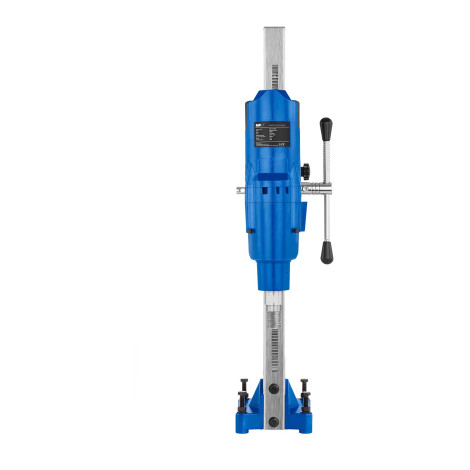

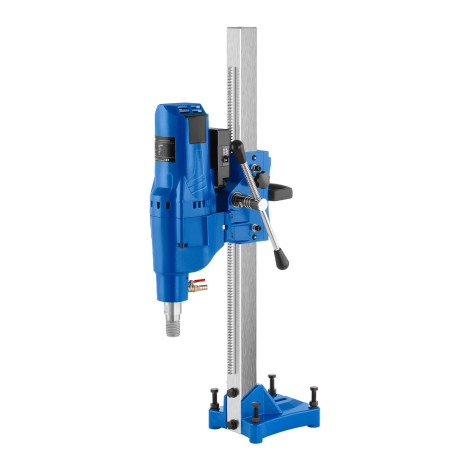

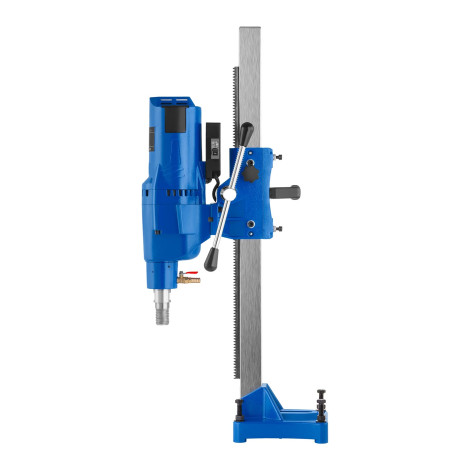

MSW 10060435Professional drilling machine MSW-Ddm230 Thanks to its solid construction, it will work in hard materials such as brick, concrete or stone. Motor
Power 4080 W It guarantees efficient operation and drilling speed

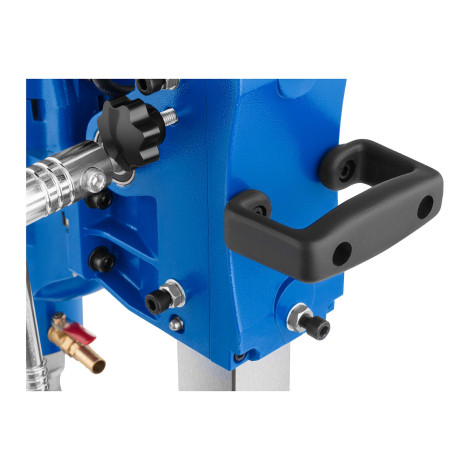

up to 570 rpm. A convenient T-type handle allows for

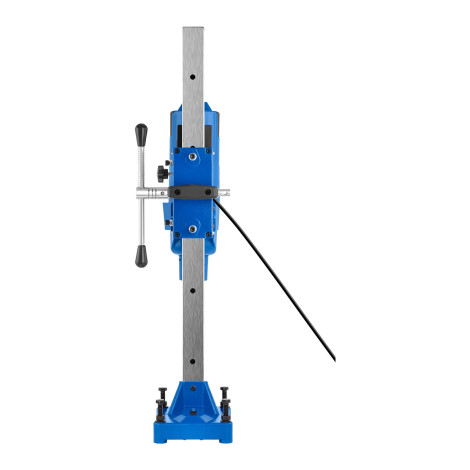

Regulation of boring depthand the guide provides smooth moving up and down
in the range of 0 - 520 mm.
To increase work efficiency, drilling rigs are equipped with

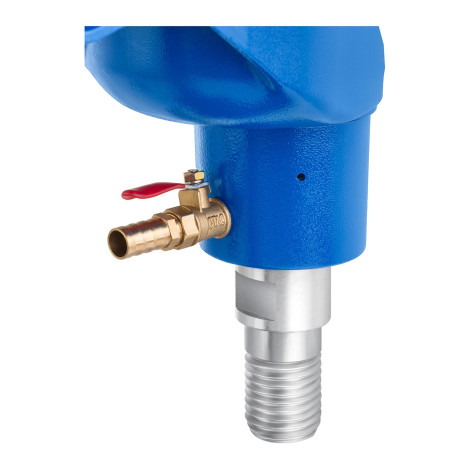

Special fitting and hosewhich can be connected to an external device responsible for wet work. This will enable the lifespan of lace and reduce the risk of damage to the material workpiece. Fix the diamond lace to the device
With a diameter up to 230 mm.

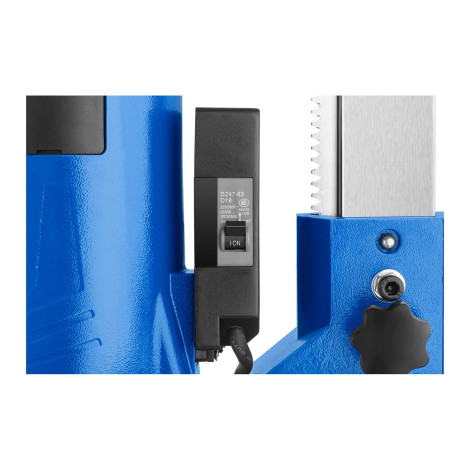

Work safety for drilling rig provides

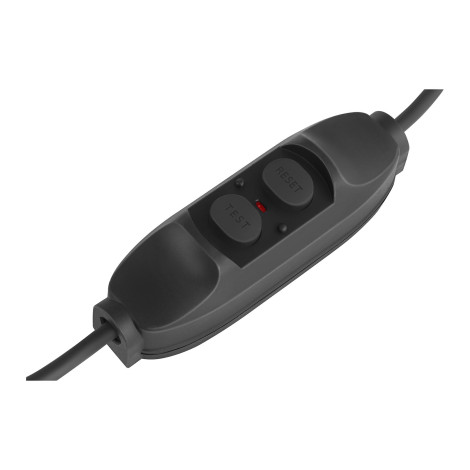

PRCD module (Differential cutter) Preventing the machine in case of short-circuit. It also guarantees that the device will not start uncontrolled when it is connected to a power source.
Product features: - - Reliability - a solid construction enables wet and dry work,
- - Multi-tasking - the possibility of drilling in various hard materials as brick, concrete, concrete reinforced or stone,
- - Versatility - compatibility with diamond drills up to 230 mm diamonds,
- - Safety - Built-in PRCD module.
Technical parameters: - - Model - MSW-Ddm230
- - catalog number - 10060435
- - housing material - Aluminum, steel, plastic
- - power - 4080
- - voltage / frequency - 230v / 50hz
- - acoustic pressure - 70 dB (A)
- - acoustic power - 85 dB (A)
- - Max. Drilling diameter - 230 mm
- - Diameter of the drill bit - 1 1/4 "
- - Diameter of the water hose connection - 1/2 "
- - Hose length for water - 3.1 m
- - max. Rotational speed (no load) - 570 rpm
- - Range of the guide - 0-520 mm
- - dry and wet drilling - So
- - PRCD module - So
- - length of the power cord - 3.2 m
- - Dimensions (DXSXW) - 31 x 18 x 102 cm
- - weight - 20.9 kg
- - Dimensions of shipment (DXSXW) - 93.5 x 35.5 x 23 cm
- - shipping weight - 23.5 kg

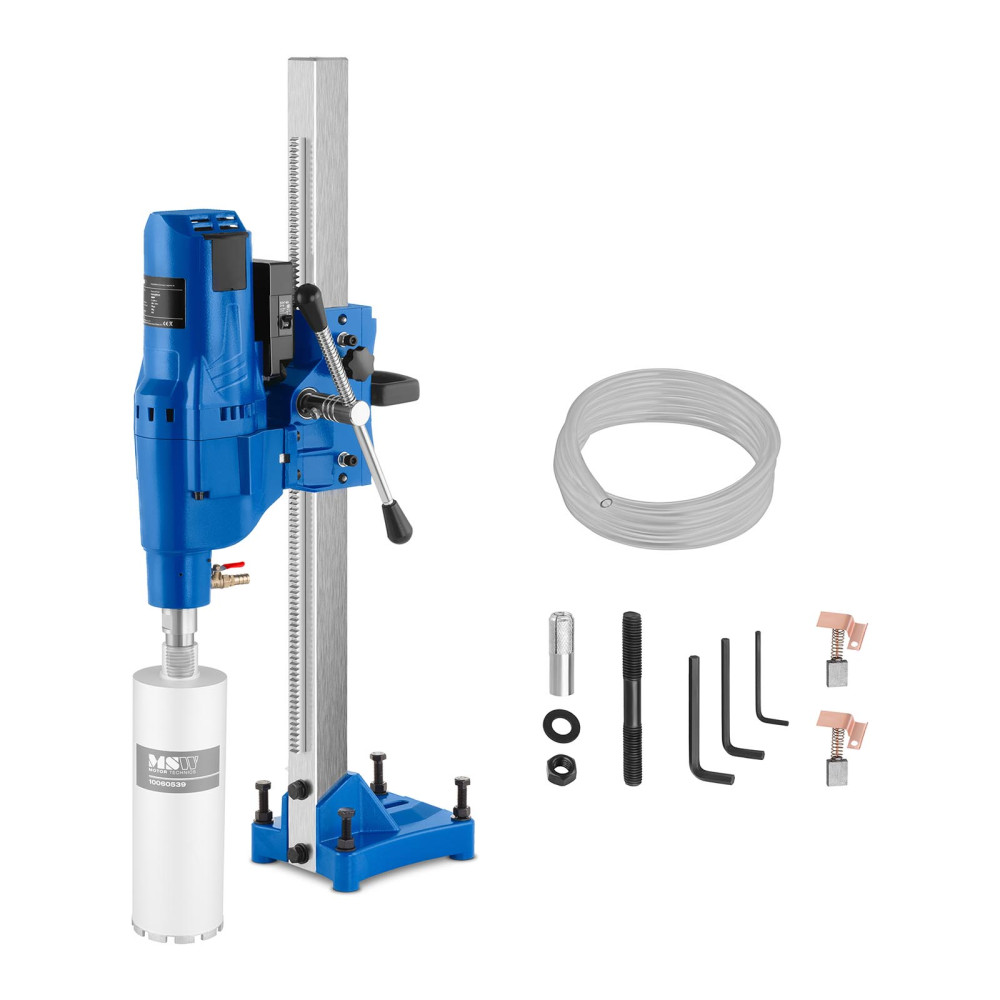

Included: - - Concrete drilling machine
- - water hose 3.1 m
- - Rotated handle

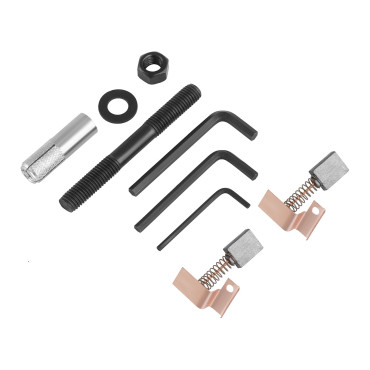

- - Allen keys - 3 pcs
- - Rear guide handle
- - anchor screw
- - Carbon brushes - 2 pcs
- - power cord 3.2 M with PRCD safety module
- - EN statement
