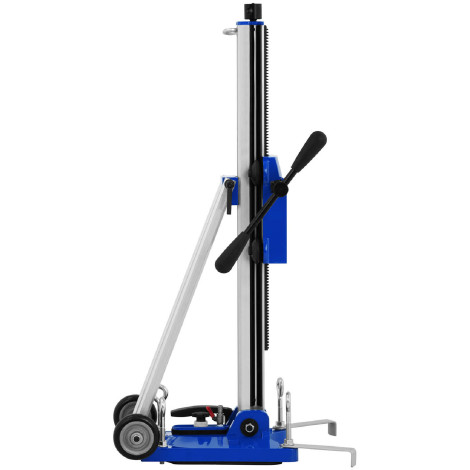

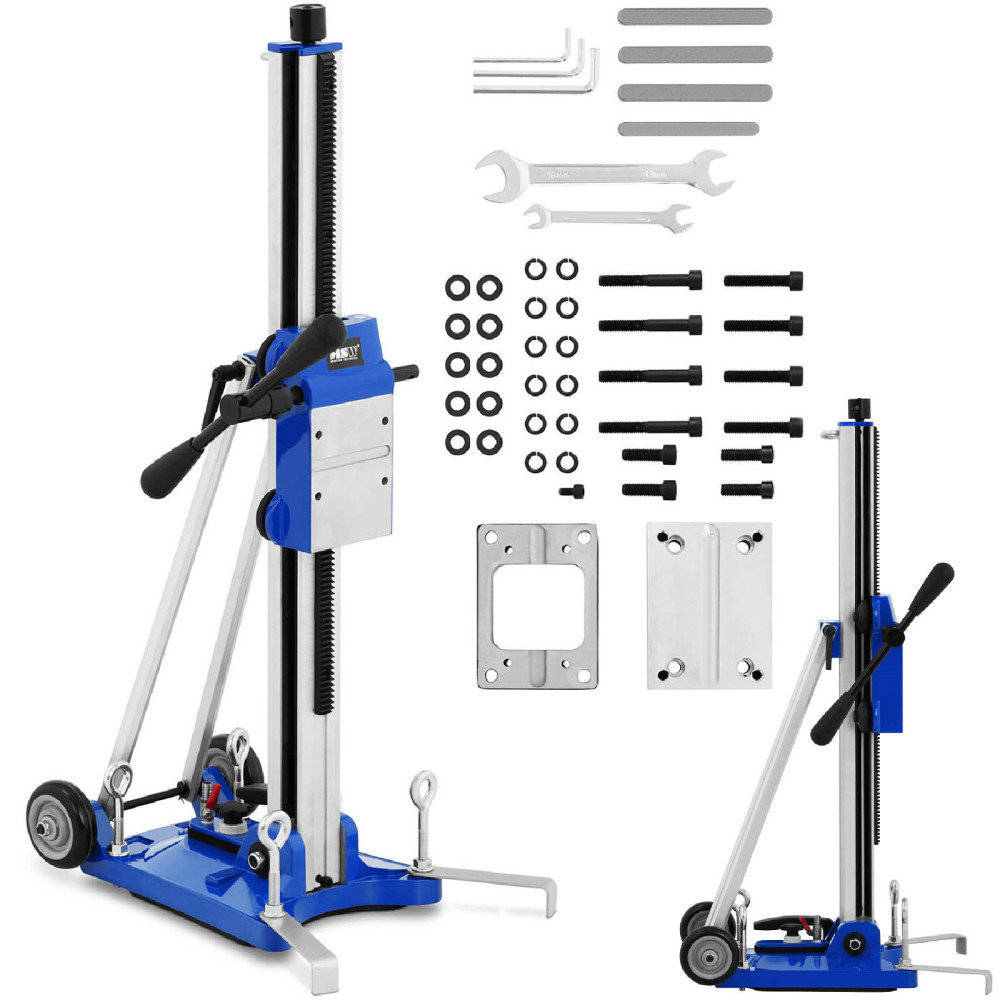

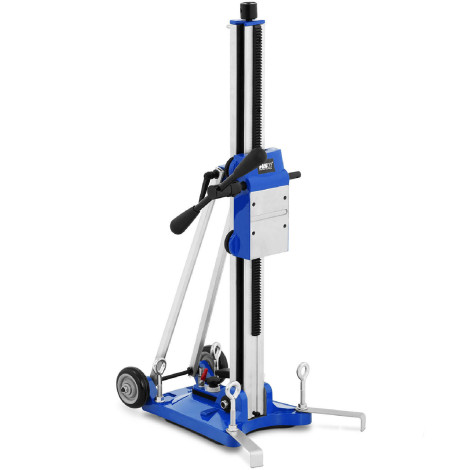

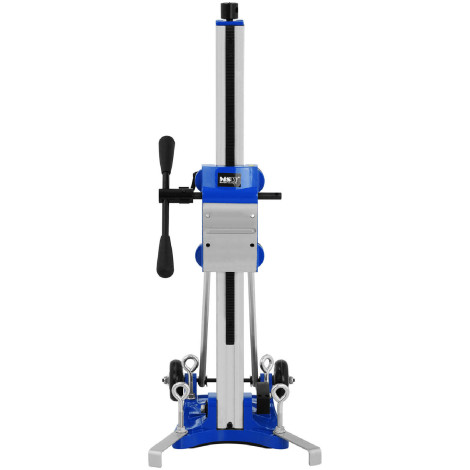

                  Tripod Stand for a crown drilling rig with regulation and wheels. 130-300 mm















                        Manufacturer's code:
10061228Tripod for drilling rig MSW This equipment enabling stable core drilling using a diamond hole. The tool has been designed specifically for the brand drilling MSW. It supports drills with a diameter
from 130 to 300 mm This manufacturer. The structure was made of
aluminum, steel and plastic. Has
Adjustable bracketand also
 4 Mounting holes and 2 wheels.
Product features:	- - Solid materials: aluminum, steel, plastic,
- - Adjusting the bracket,
- - 4 mounting holes and 2 wheels for transport,
- - A stand is suitable for drilles with a diameter of 130-300 mm brand MSW,
- - Easy and fast assembly.
Technical parameters:	- - Model - MSW-Dms300
- - catalog number - 10061228
- - article - New
- - Drilling path - 590 mm
- - Diameter of assembly holes - 8.5 mm
- - Diameter of wheels - 100 mm
- - Dimensions (DXSXW) - 50 x 36 x 110 cm
- - weight - 20 kg
- - Dimensions of shipment (DXSXW) - 109 x 37 x 21 cm
- - shipping weight - 22.6 kg

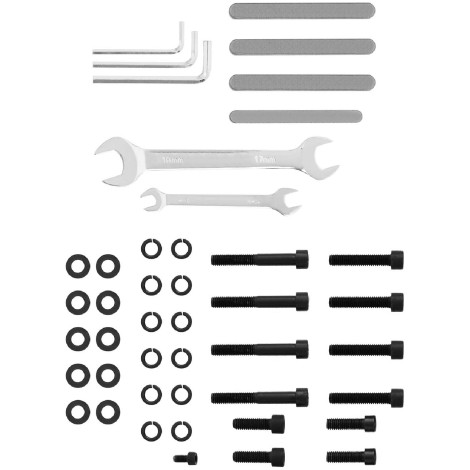

Included:	- - a tripod for a drilling machine,
- - Mounting accessories.










      Specific References

                  - EAN13
- 4062859947451
