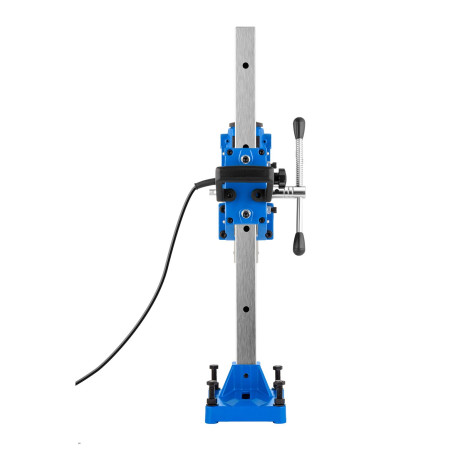

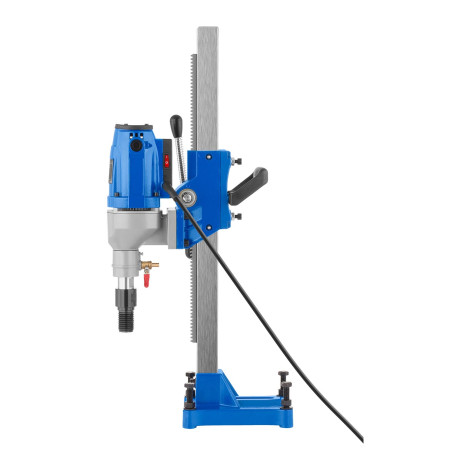

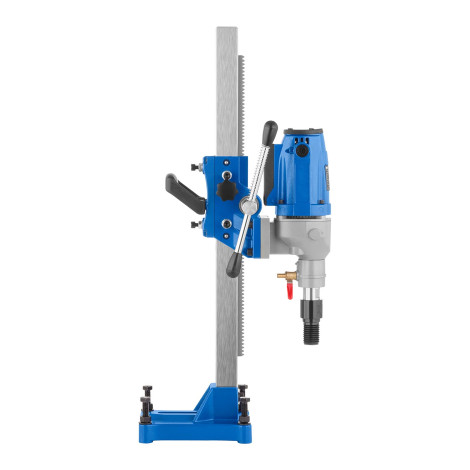

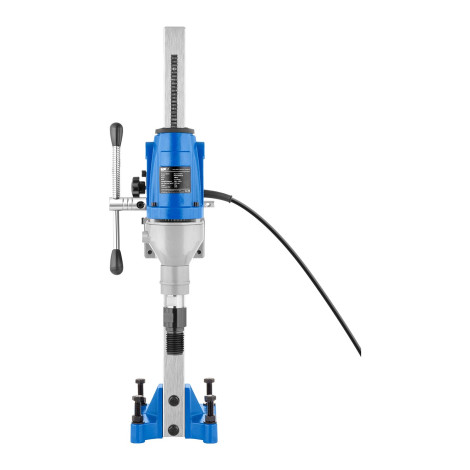

Drilling machine Vertical drill for concrete 132 mm 1980W MSW-Ddm132

€303.44
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer number: MSW 10060439
Professional drilling machine MSW-Ddm132 Thanks to its solid construction, it will work in hard materials such as brick, concrete or stone. Motor Power 1980 W It guarantees efficient operation and drilling speed up to 1200 rpm. A convenient T-type handle allows for Regulation of boring depthand the guide provides smooth moving up and down in the range 0 - 510 mm.
To increase work efficiency, drilling rigs are equipped with Special fitting and hosewhich can be connected to an external device responsible for wet work. This will enable the lifespan of lace and reduce the risk of damage to the material workpiece. Fix the diamond lace to the device With a diameter up to 132 mm.
Work safety for drilling rig provides PRCD module (Differential cutter) Preventing the machine in case of short-circuit. It also guarantees that the device will not start uncontrolled when it is connected to a power source.
Product features:
  • - Reliability - a solid construction enables wet and dry work,
  • - Multi-tasking - the possibility of drilling in various hard materials as brick, concrete, concrete reinforced or stone,
  • - Versatility - compatibility with diamond drills with a diameter up to 132 mm,
  • - Safety - Built-in PRCD module.

Technical parameters:
  • - Model - MSW-Ddm132
  • - catalog number - 10060439
  • - housing material - Aluminum, steel, plastic
  • - power - 1980 in
  • - voltage / frequency - 230v / 50hz
  • - acoustic pressure - 70 dB (A)
  • - acoustic power - 85 dB (A)
  • - Max. Drilling diameter - 132 mm
  • - Diameter of the drill bit - 1 1/4 "
  • - Diameter of the water hose connection - 1/2 "
  • - Hose length for water - 3.1 m
  • - max. Rotational speed (no load) - 1200 rpm
  • - Range of the guide - 0-340 mm
  • - dry and wet drilling - So
  • - PRCD module - So
  • - length of the power cord - 3.2 m
  • - Dimensions (DXSXW) - 20 x 15.5 x 71 cm
  • - weight - 11.4 kg
  • - Dimensions of shipment (DXSXW) - 29 x 27 x 76 cm
  • - shipping weight - 13.55 kg

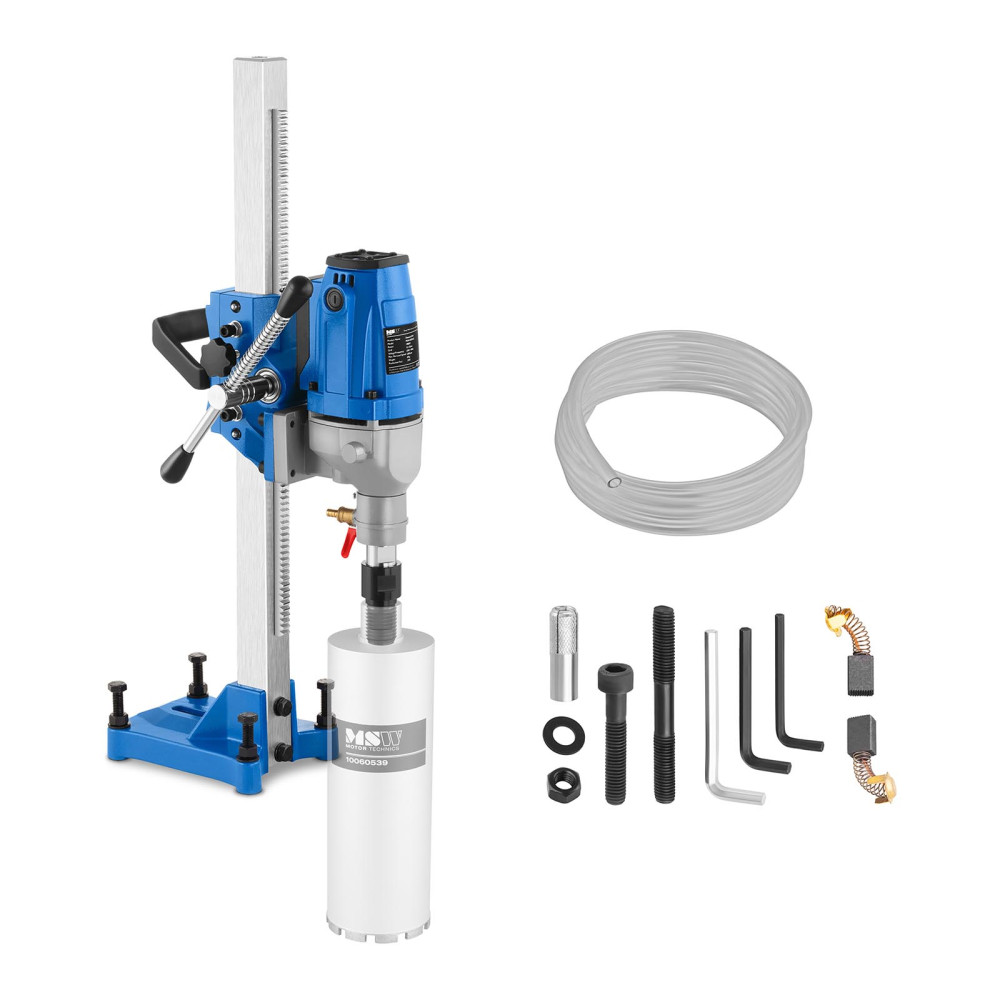

Included:
  • - Concrete drilling machine

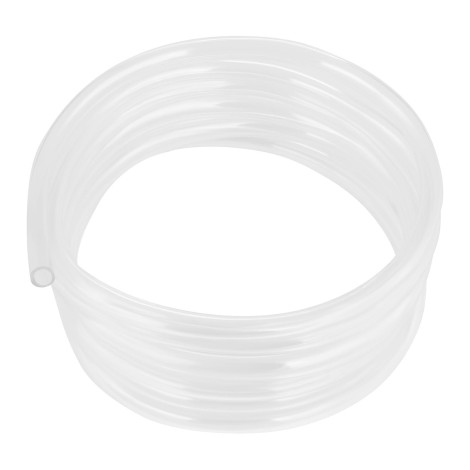

  • - water hose 3.1 m
  • - Rotated handle

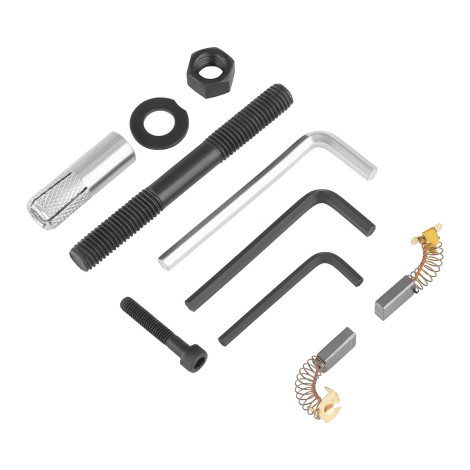

  • - Allen keys - 3 pcs

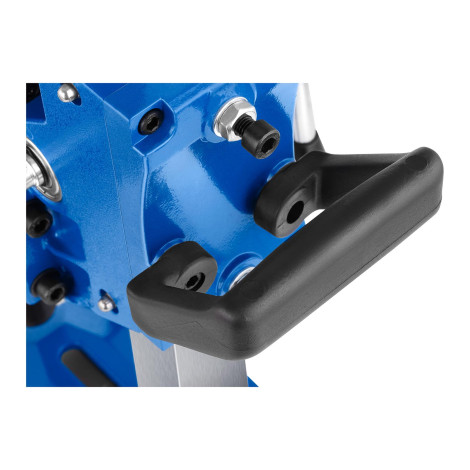

  • - Rear guide handle
  • - anchor screw
  • - Carbon brushes - 2 pcs

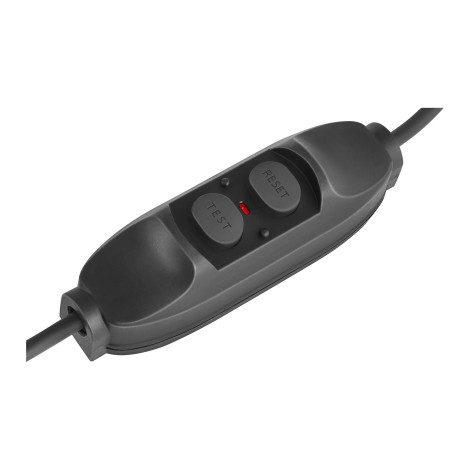

  • - power cord 3.2 M with PRCD safety module
  • - EN statement
