Manufacturer's code:

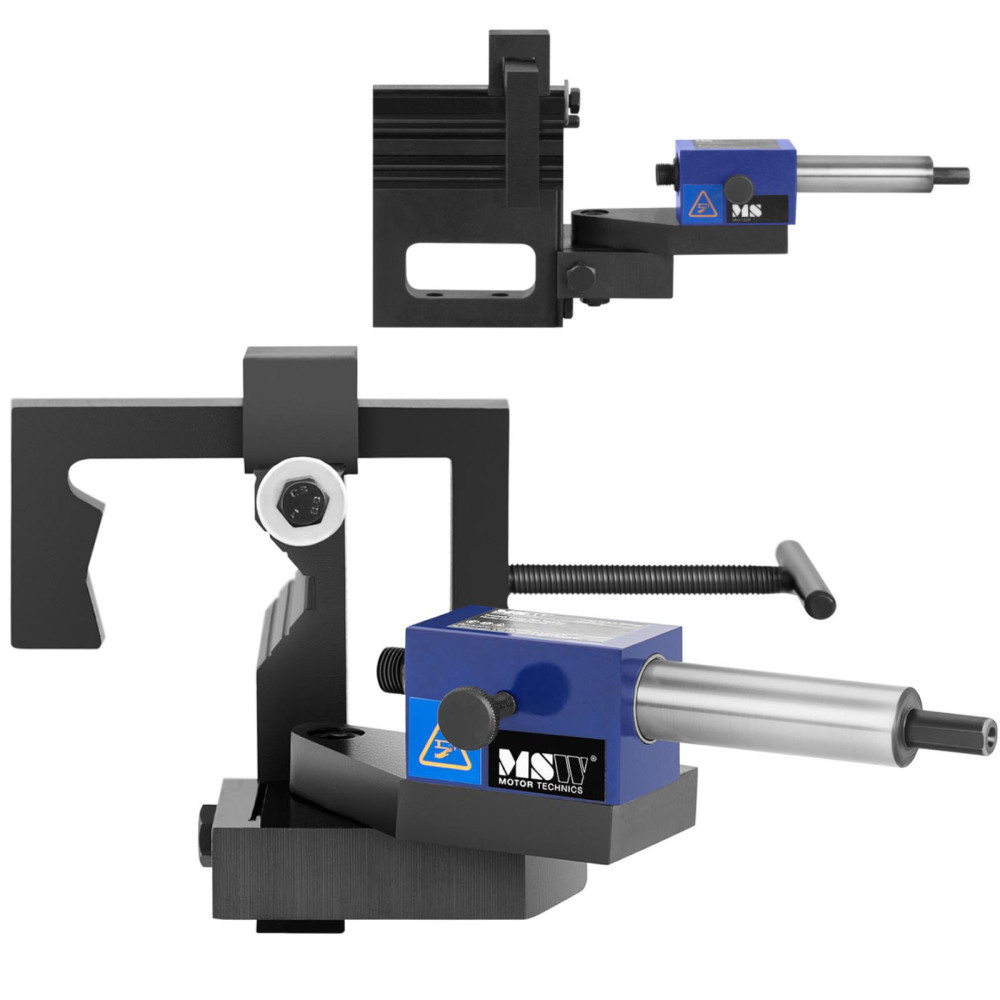

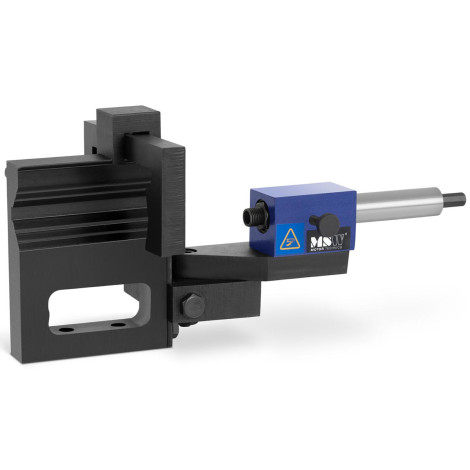

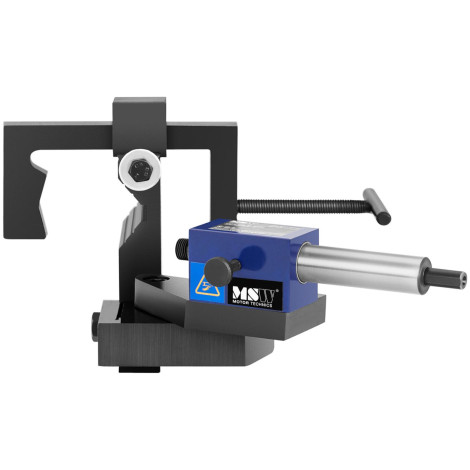

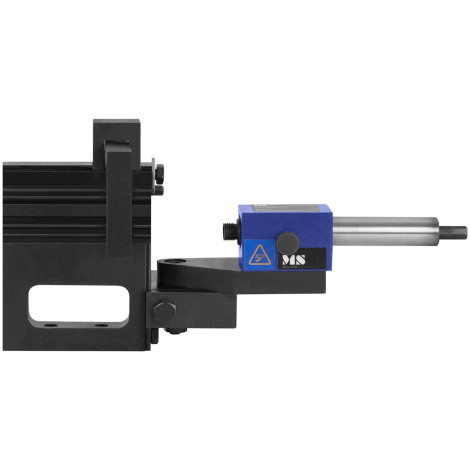

10060481Apparel for the brand pipe pipe MSW, It will work in factories, automotive plants, craft workshops for cutting both copper, aluminum, steel pipes and a motorcycle framework or handrail.
The device allows you to work at an angle until
50deg . Vertical adjustment of the platform with a mandrel to a height
35 mm It facilitates the exact execution of the hole. Biaxial clamp fits the pipes with a diameter of from
19 to 76 mm. Durable construction was made of
steel A spindle from ground and polished stainless steel. The device can be screwed to the working surface or placed in the IMADLE. The appetizer works with a handle 1/2 '' and electric drill (tools are not included) and allows you to make cuts in pipes with different diameters and shapes. The device fits a wide range of round knives, saws for holes and milling mills with M12 and M15 thread.

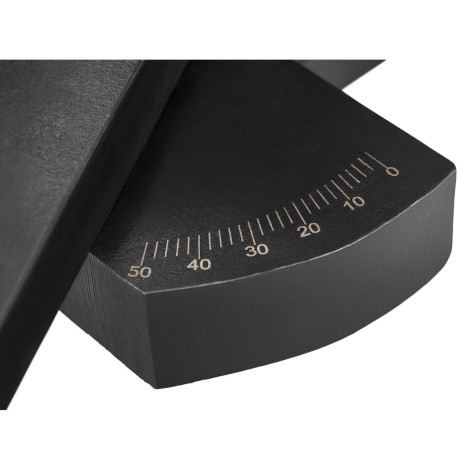

Product features: - - cutting at an angle up to 50DEG with the possibility of adjusting every stage,
- - two-axis pipe clamp with a diameter of 19 to 76 mm,
- - Durable steel construction 1-1 / 4 # 8221,
- - vertical platform adjustment with a stem (up to 35 mm),
- - Works with a hand or electric drill 1/2 # 8221.
Technical parameters: - - Model - MSW-Pnm1-1 / 2
- - catalog number - 10060481
- - article - New
- - Mounting thread - 1/2 # 8221 and 5/8 # 8221
- - Diameter of the workpiece - (3/4 # 8221 -3 # 8221) 19-76 mm
- - machining angle - 0-50deg
- - Thickness of a steel frame - 1-1 / 4 "
- - vertical platform adjustment with a stem - Up to 35 mm
- - Material of the stem - Grinded and polished stainless steel
- - Diameter of the stem - 25 mm
- - Drill required - 1/2 "
- - thread - M12 and M15
- - M15 thread fits drills - 32-150 mm
- - Dimensions (DXSXW) - 39 x 19.5 x 27.5 cm
- - weight - 9.7 kg
- - Dimensions of shipment (DXSXW) - 28 x 24.5 x 26 cm
- - shipping weight - 12 kg
Included: - - Apparel to the hole
- - User manual
