Bending machine Pipes for pipes Manual profiles up to 4 mm 120 degrees 3 Dies

Manufacturer's code: 10061171

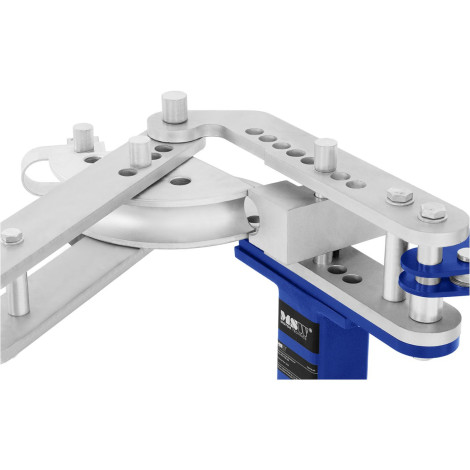

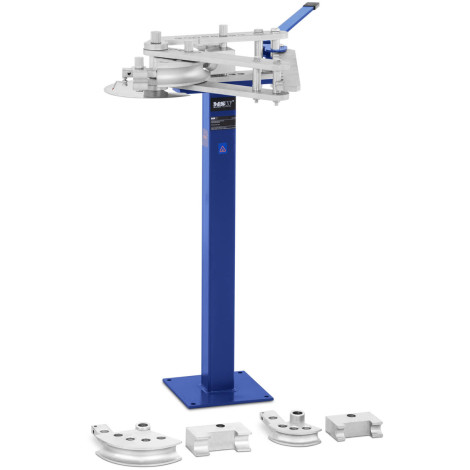

Bending machine for brand pipes MSW It will work for machining and modeling metal materials used in construction, car workshops or hobby studios. The device allows you to shape the pipes with the thickness of the walls in the range 1.5 - 4 mm. The maximum bending range is 120deg . Included dies With dimensions of 25 x 75 mm, 38 x 125 mm, 45 x 150 mm allow you to adapt the bending machine to different materials. The operation takes place manually using the lever. The device was made of strong low-carbon steel. Assembly holes with Wed. 13 mm allow you to attach the equipment to the ground.
Product features:

• - in a set of matrices with standard dimensions (25 x 75 mm, 38 x 125 mm, 45 x 150 mm),
• - for pipes with wall thickness in the range of 1.5-4 mm,
• - Easy manual support,
• - efficient exchange of matrices,
• - Made of low-carbon steel.

Technical parameters:

• - Model - MSW-Trb-300
• - catalog number - 10061171
• - article - New
• - Maximum bending width - 25 x 75 mm, 38 x 125 mm, 45 x 150 mm
• - Material - Low-carbon steel
• - Bending range - Up to 120deg
• - Maximum wall thickness of the tube - 4 mm
• - User manual - So
• - Dimensions (DXSXW) - 150.00 x 41,00 x 130.00 cm
• - weight - 67.50 kg
• - Dimensions of shipment (DXSXW) - 107,00 x 37.00 x 39.00 cm
• - shipping weight - 79.00 kg

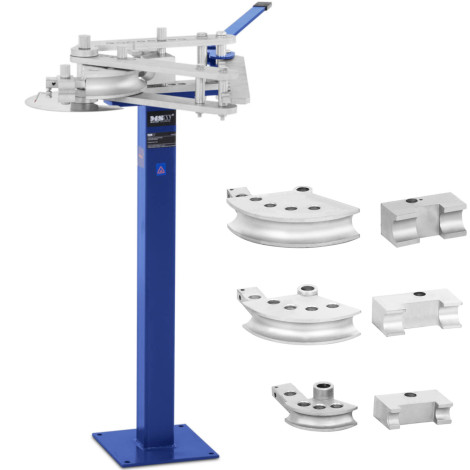

Included:

• - pipe bending machine:
• - lever
• - Dies (25 x 75 mm, 38 x 125 mm, 45 x 150 mm to 120DEG) - 3 pcs.
• - A protractor up to 210deg
• - Allen keys (M4 + M5) - 2 pcs.
• - screwing screws (M10 x 35 mm)
• - locking plate (26 mm, 40 mm, 48 mm) - 3 pcs.
• - User manual
