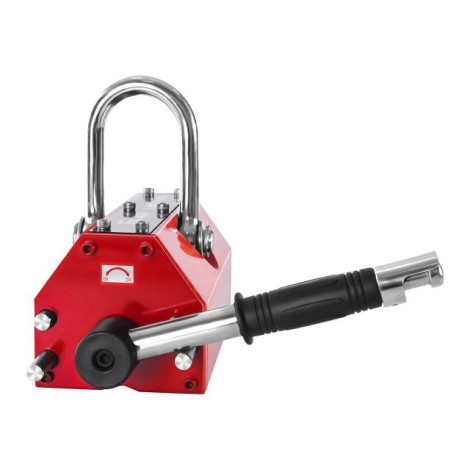

SBS-Ml 1000 Magnetic lift SBS-Ml 1000 Steinberg Systems Used to raise iron and steel objects with a maximum of 1000 kg. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.

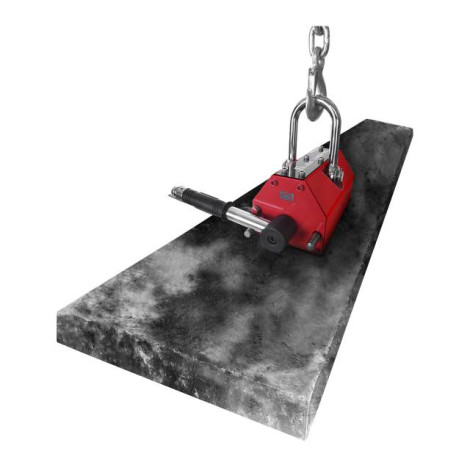

Magnetic gripper allows you to lift
Sheet metal and profiled elements. Equipment uses

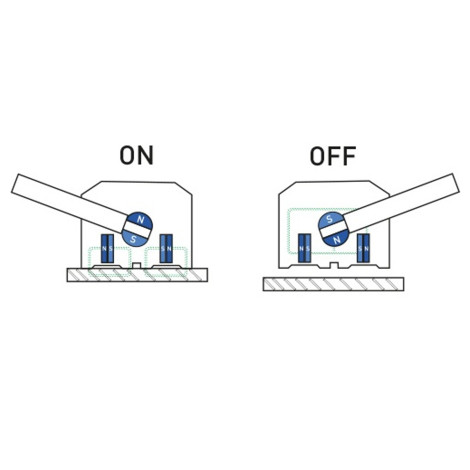

Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-ML 1000 is characterized by the safety of operation.
Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:- Neodymium magnets
- Permissible load 1000kg
- 3000kg breaking load
- Safe and simple operation

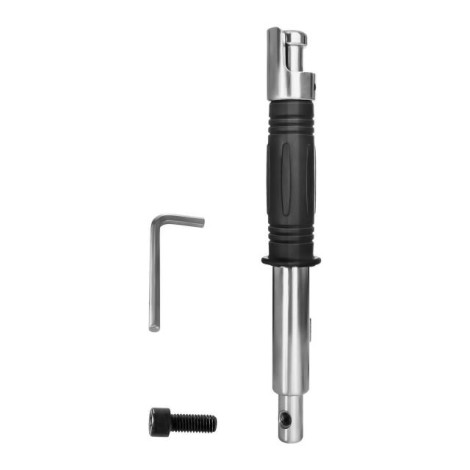

- Manual lever
- zero costs of use
Technical parameters: - - Model - SBS-Ml 1000
- - catalog number - 3200
- - article - New
- - Permissible load - 1000 kg
- - breaking load - 3000 kg
- - Max. Load for lifting vertical and rounded surfaces - 350 kg
- - Workplace range - from -40 to 80Deg C
- - Color - Red
- - shutdown mechanism - Mechanical lever
- - Dimensions (DXSXW) - 32.2 x 13.8 x 14 cm
- - weight - 33.5 kg
- - Dimensions of shipment (DXSXW) - 37.5 x 26.5 x 27.5 cm
- - shipping weight - 34.3 kg
Included:- Magnetic lift SBS-Ml 100
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
