Manual lift Magnetic gripper for sheets and profiles up to 500kg

€188.68
Tax included
Obecnie brak na stanie
Payment
discover visa googlewallet paypal mastercard americanexpress
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

Manufacturer's name SBS-Ml 500

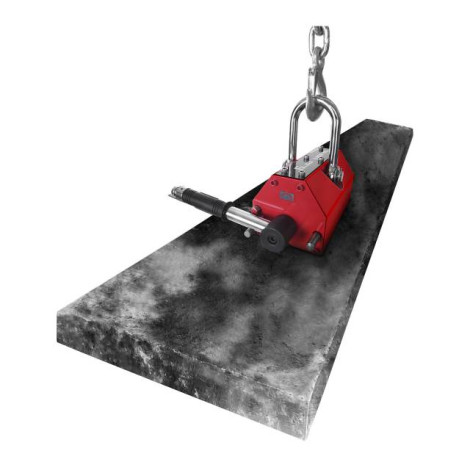

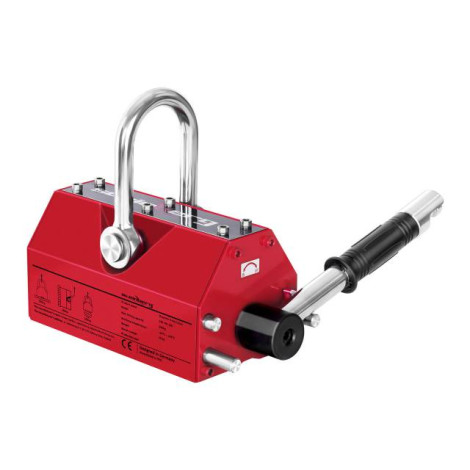

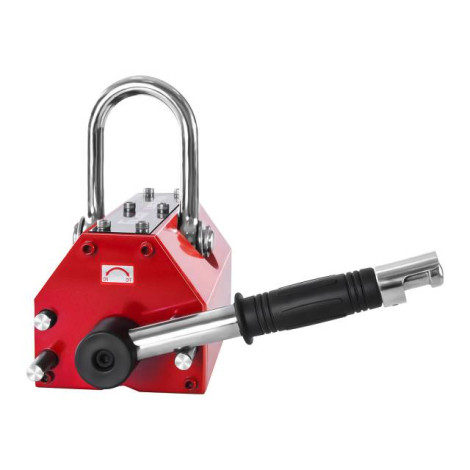

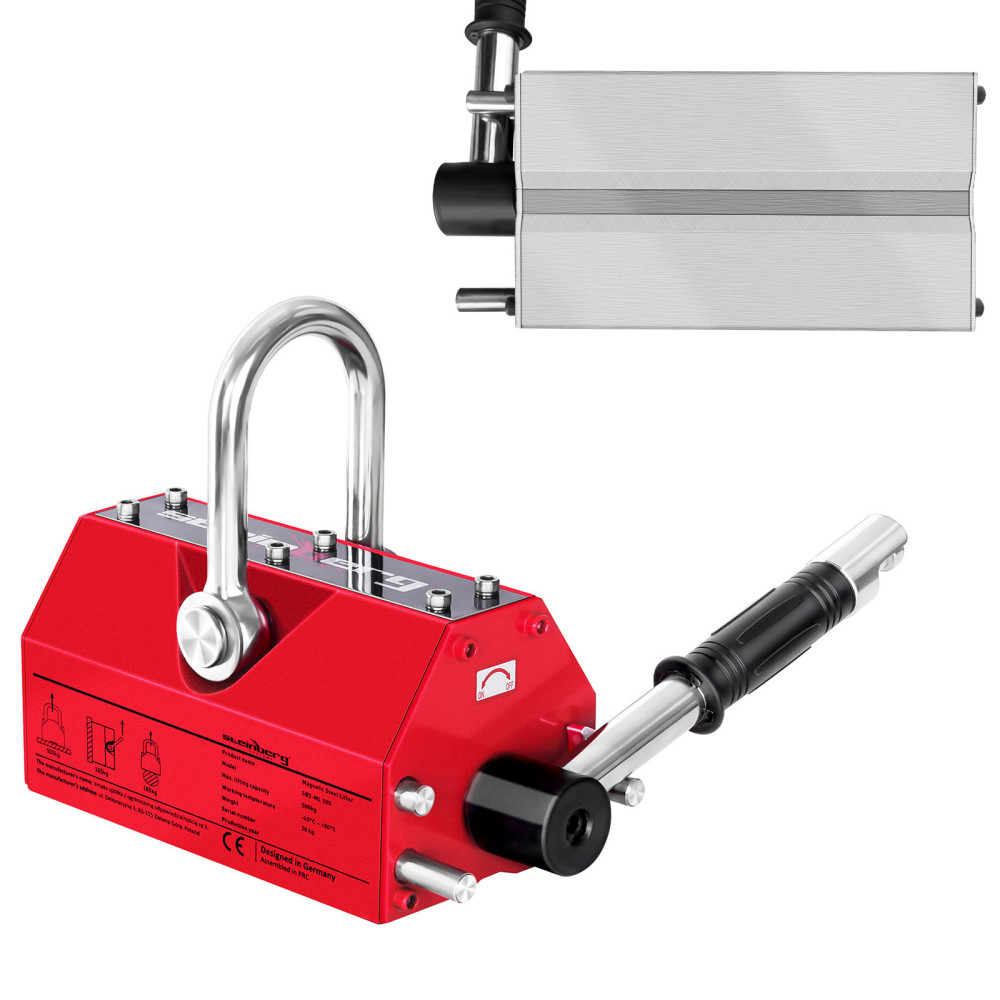

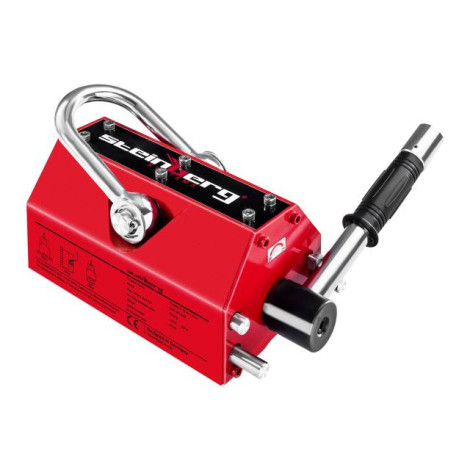

Magnetic lift SBS-Ml 500 Steinberg Systems Used to raise iron and steel objects. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.

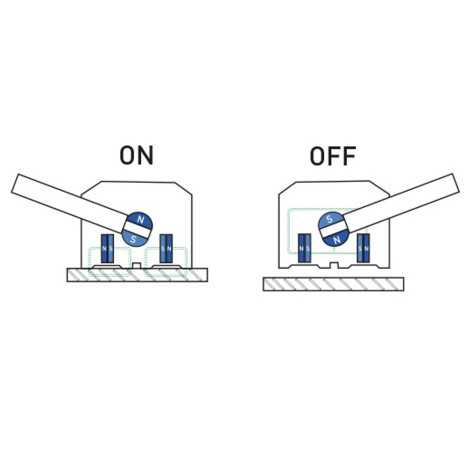

Magnetic gripper allows you to lift Sheet metal and profiled elements. Equipment uses Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-Ml 500 is characterized by the safety of operation. Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:
- Neodymium magnets
- Permissible load 500kg
- Disconnect 1500kg load
- Safe and simple operation
- Manual lever
- zero costs of use
Technical parameters:
  • - Model - SBS-Ml 500
  • - catalog number - 3203
  • - article - New
  • - Permissible load - 500 kg
  • - breaking load - 1500 kg
  • - Max. Load for lifting vertical and rounded surfaces - 100 kg
  • - Workplace range - from -40 to 80Deg C
  • - Color - Red
  • - shutdown mechanism - Mechanical lever
  • - Dimensions (DXSXW) - 27 x 12 x 11.5 cm
  • - weight - 20 kg
  • - Dimensions of shipment (DXSXW) - 32.5 x 22.5 x 22.5 cm
  • - shipping weight - 20.7 kg

Included:
- Magnetic lift SBS-Ml 500
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
1001831

Data sheet

Kod producenta
1001831
