Manufacturer's name

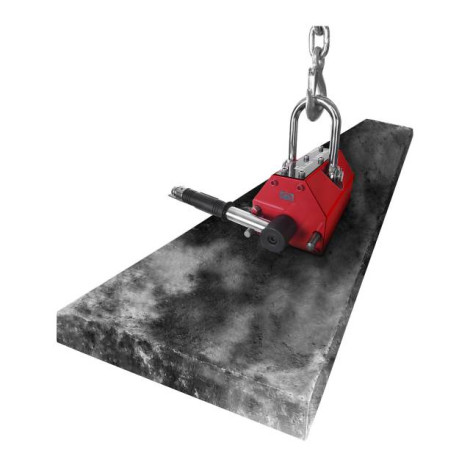

SBS-Ml 600 Magnetic lift SBS-Ml 600 Steinberg Systems Used to raise iron and steel objects. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.
Magnetic gripper allows you to lift
Sheet metal and profiled elements. Equipment uses

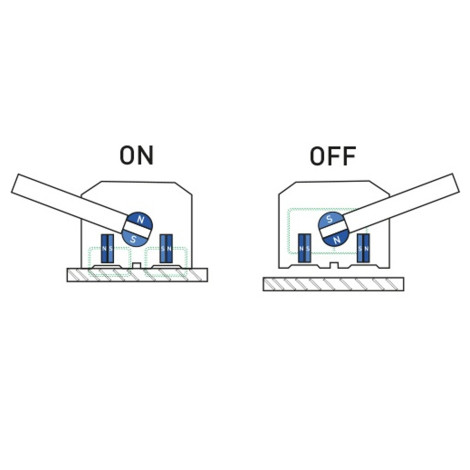

Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-Ml 600 is characterized by the safety of operation.
Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:- Neodymium magnets
- Permissible load 600kg
- 1800kg breaking load
- Safe and simple operation

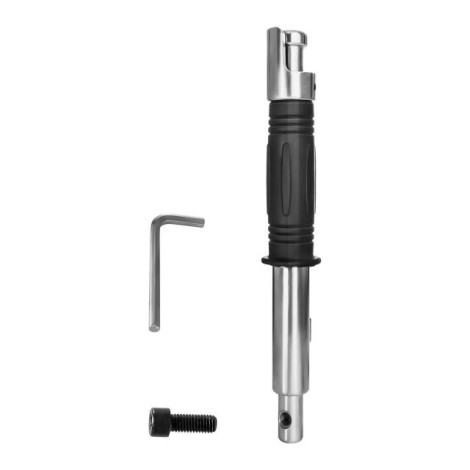

- Manual lever
- zero costs of use
Technical parameters: - - Model - SBS-Ml 600
- - catalog number - 3204
- - article - New
- - Permissible load - 600 kg
- - breaking load - 1800 kg
- - Max. Load for lifting vertical and rounded surfaces - 200 kg
- - Workplace range - from -40 to 80Deg C
- - Color - Red
- - shutdown mechanism - Mechanical lever
- - Dimensions (DXSXW) - 27 x 12 x 11.5 cm
- - weight - 19.5 kg
- - Dimensions of shipment (DXSXW) - 32 x 23 x 22 cm
- - shipping weight - 20.8 kg
Included:- Magnetic lift SBS-Ml 600
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
