Manufacturer's name

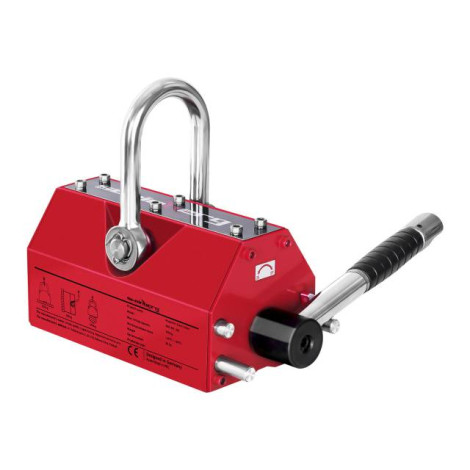

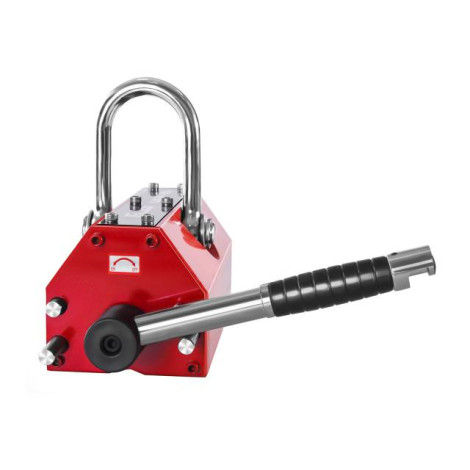

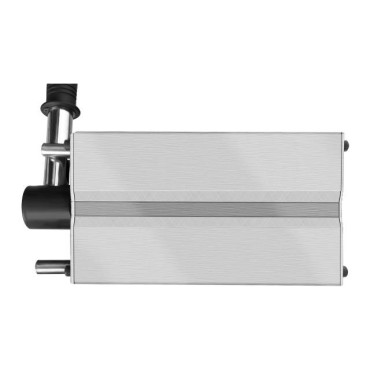

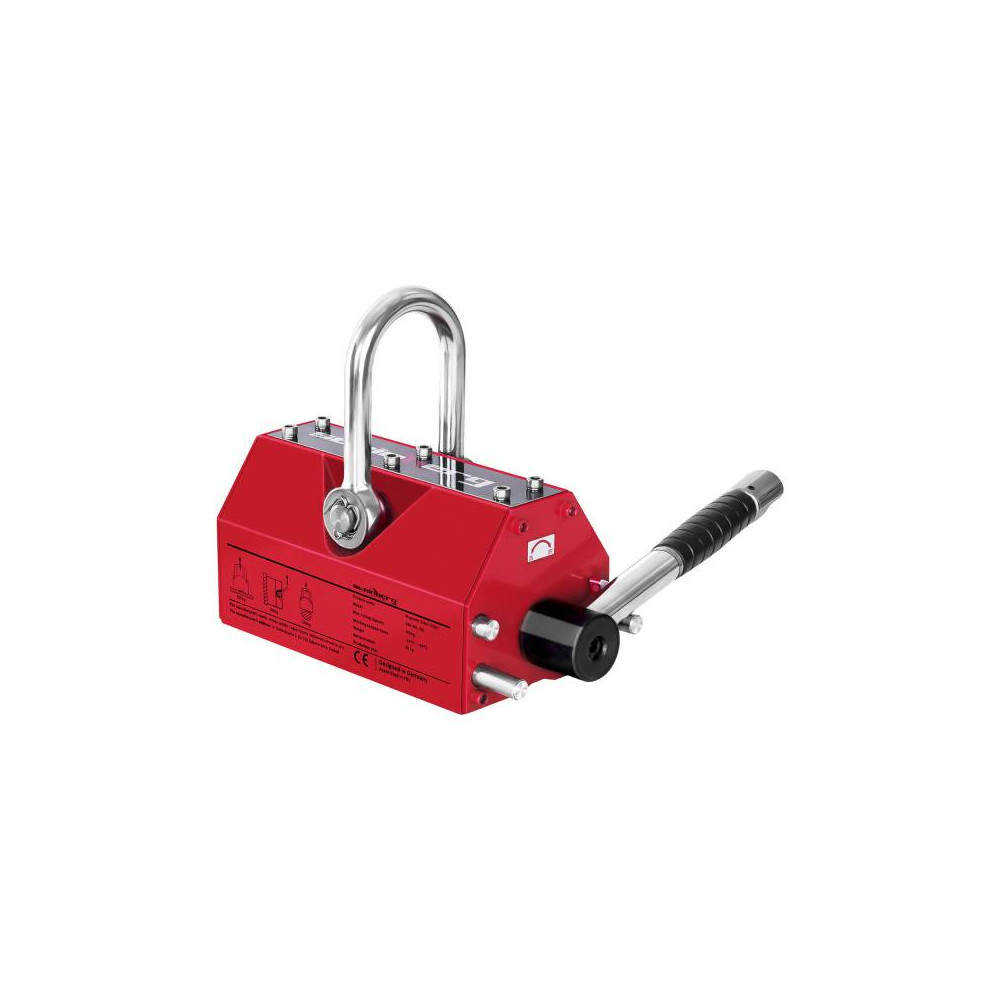

SBS-Ml 300 Magnetic lift SBS-Ml 300 Steinberg Systems Used to raise iron and steel objects. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.

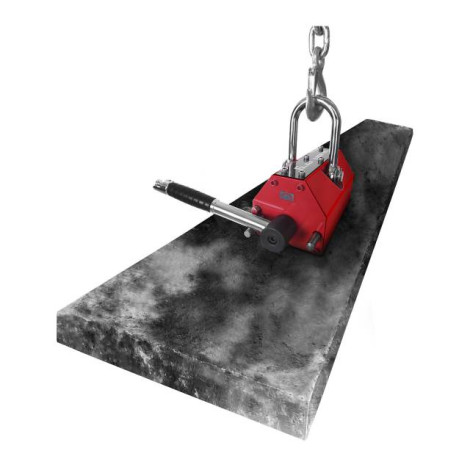

Magnetic gripper allows you to lift
Sheet metal and profiled elements. Equipment uses

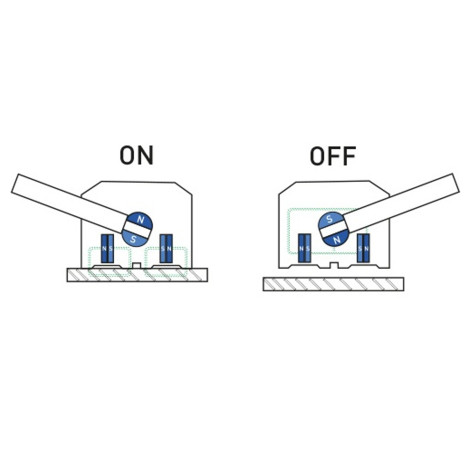

Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-Ml 300 is characterized by the safety of operation.
Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:- Neodymium magnets
- Permissible load 300kg
- Rolling load 900kg
- Safe and simple operation
- Manual lever
- zero costs of use
Technical parameters: - - Model - SBS-Ml 300
- - catalog number - 3202
- - article - New
- - Permissible load - 300 kg
- - breaking load - 900 kg
- - Max. Load for lifting vertical and rounded surfaces - 100 kg
- - Workplace range - from -40 to 80Deg C
- - Color - Red
- - shutdown mechanism - Mechanical lever
- - Dimensions (DXSXW) - 20.6 x 9.4 x 9.3 cm
- - weight - 9 kg
- - Dimensions of shipment (DXSXW) - 25.5 x 18 x 22 cm
- - shipping weight - 9.9 kg
Included:- Magnetic lift SBS-Ml 300
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
