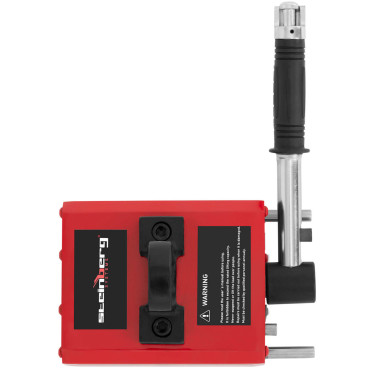

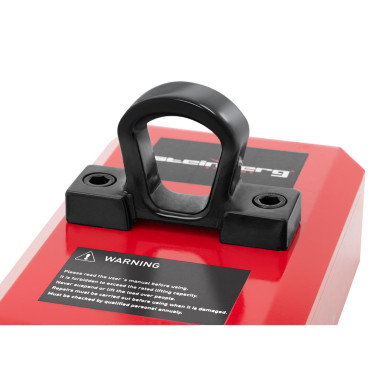

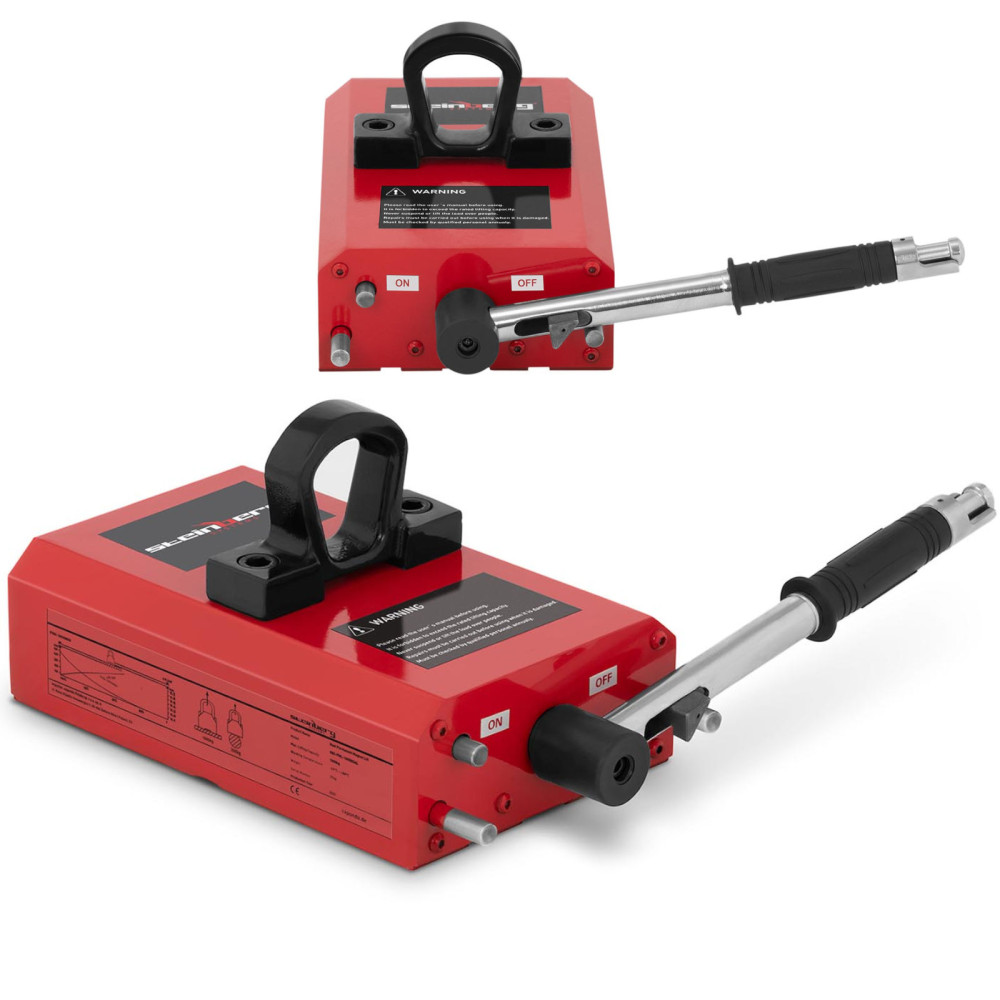

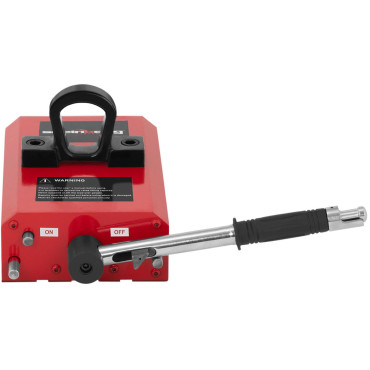

Professional lift Magnetic gripper for sheets and profiles 600 kg

Manufacturer's code: 10030592
Magnetic lift brand Steinberg Systems Used to carry loads made of iron and steel, for example, sheets, construction elements, weights or reinforcements. It works great during works in the metallurgical, electromechanical, fuel and energy industry, in shipyards, automotive workshops, on scrapies and construction sites and on loading and unloading goods.
A large lifting force is 600 kg. Such a load capacity has been ensured by using strong double magnet neodymowego. The device has a high breaking load (until 1800 kg). The grapple is suitable for sheet sheets from the thickness from 5 mm. It makes it more effective than the equipment with a single magnet. It has a wider range of application, 30-40% more damping strength, smaller residual magnetism and low weight. Easy to use lever Used to start and block hardware. After placing a magnet on the load, only move it to activate the magnetic field. The universal magnetic lift can carry any ferromagnetic material. Thanks to this, for example, for separating iron from other materials in the recycling industry. The equipment does not require any power source and can be easily transported from space to place.
Product features:

• - neodymium magnets,
• - lifting 600 kg / breaking load 1800 kg,
• - the safety mechanism prevents accidental release of the lever,
• - zero costs of use.

Technical parameters:

• - Model - SBS-Pml-600dual
• - catalog number - 10030592
• - article - New
• - load capacity - 600 kg
• - breaking load - 1800 kg

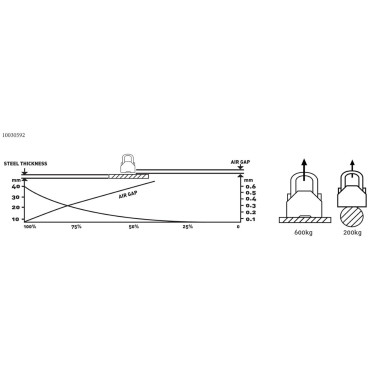

• - load capacity on an uneven surface - 200 kg
• - release mechanism - Lever
• - Temperature range - 0-80DEG C
• - User manual - So
• - Dimensions (DXSXW) - 27 x 16 x 18 cm
• - weight - 21 kg
• - Dimensions of shipment (DXSXW) - 35 x 22.5 x 24 cm
• - shipping weight - 23 kg

Included:

• - Magnetic gripper,
• - lever,
• - Operating instructions.
