Manual lift Magnetic gripper for sheets and profiles up to 2000kg 2t

Manufacturer's name SBS-Ml 2000

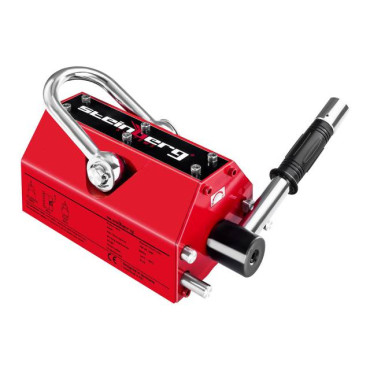

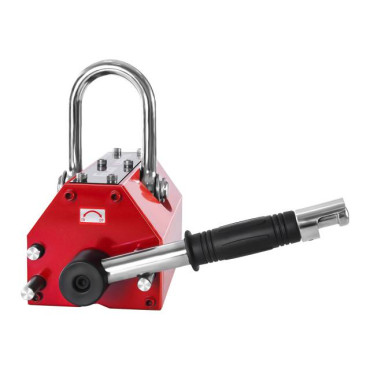

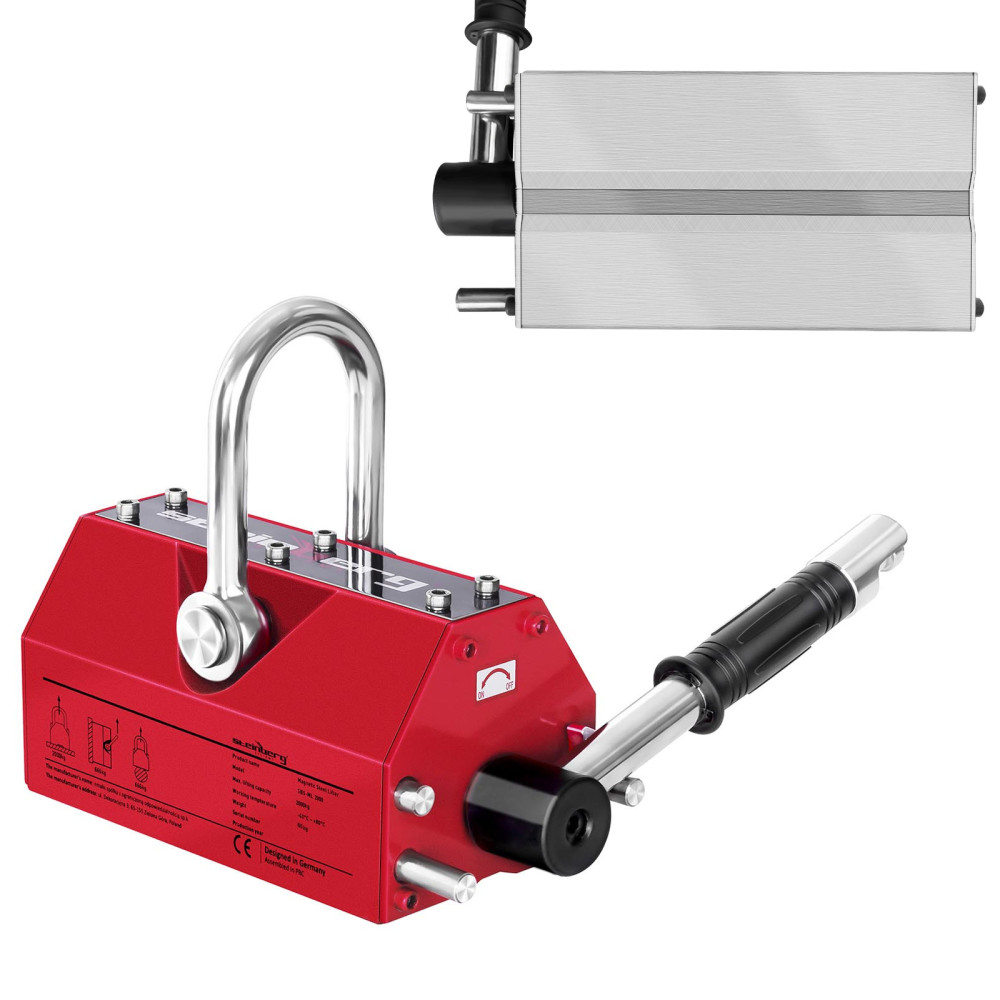

Magnetic lift SBS-Ml 2000 Steinberg Systems Used to raise iron and steel objects. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.

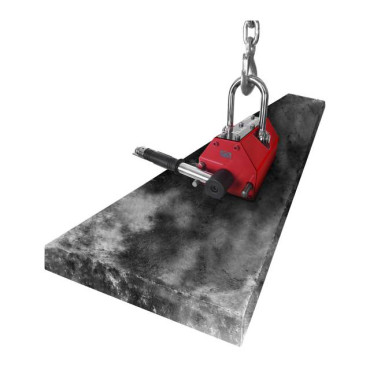

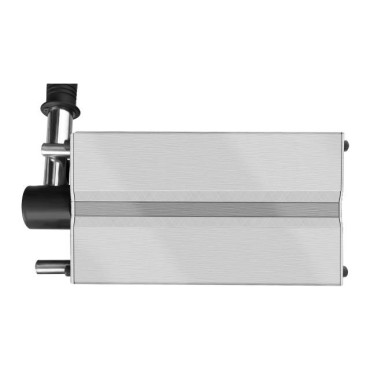

Magnetic gripper allows you to lift Sheet metal and profiled elements. Equipment uses Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-Ml 2000 is characterized by the safety of operation. Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:
- Neodymium magnets
- Permissible load 2000kg
- Discovering 6000kg
- Safe and simple operation

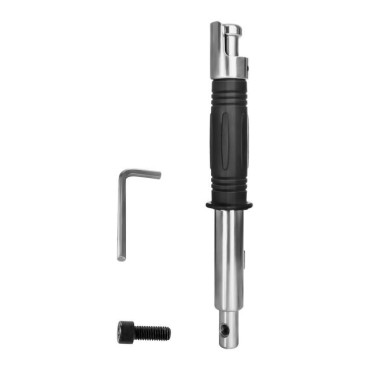

- Manual lever
- zero costs of use
Technical parameters:

• - Model - SBS-Ml 2000
• - catalog number - 3206
• - article - New
• - Permissible load - 2000 kg
• - breaking load - 6000 kg
• - Max. Load for lifting vertical and rounded surfaces - 666 kg
• - Workplace range - from -40 to 80Deg C
• - Color - Red
• - shutdown mechanism - Mechanical lever
• - Dimensions (DXSXW) - 41 x 16 x 16.7 cm
• - weight - 65 kg
• - Dimensions of shipment (DXSXW) - 53.5 x 26 x 30 cm
• - shipping weight - 75.5 kg

Included:
- Magnetic lift SBS-Ml 2000
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
