Manufacturer's name

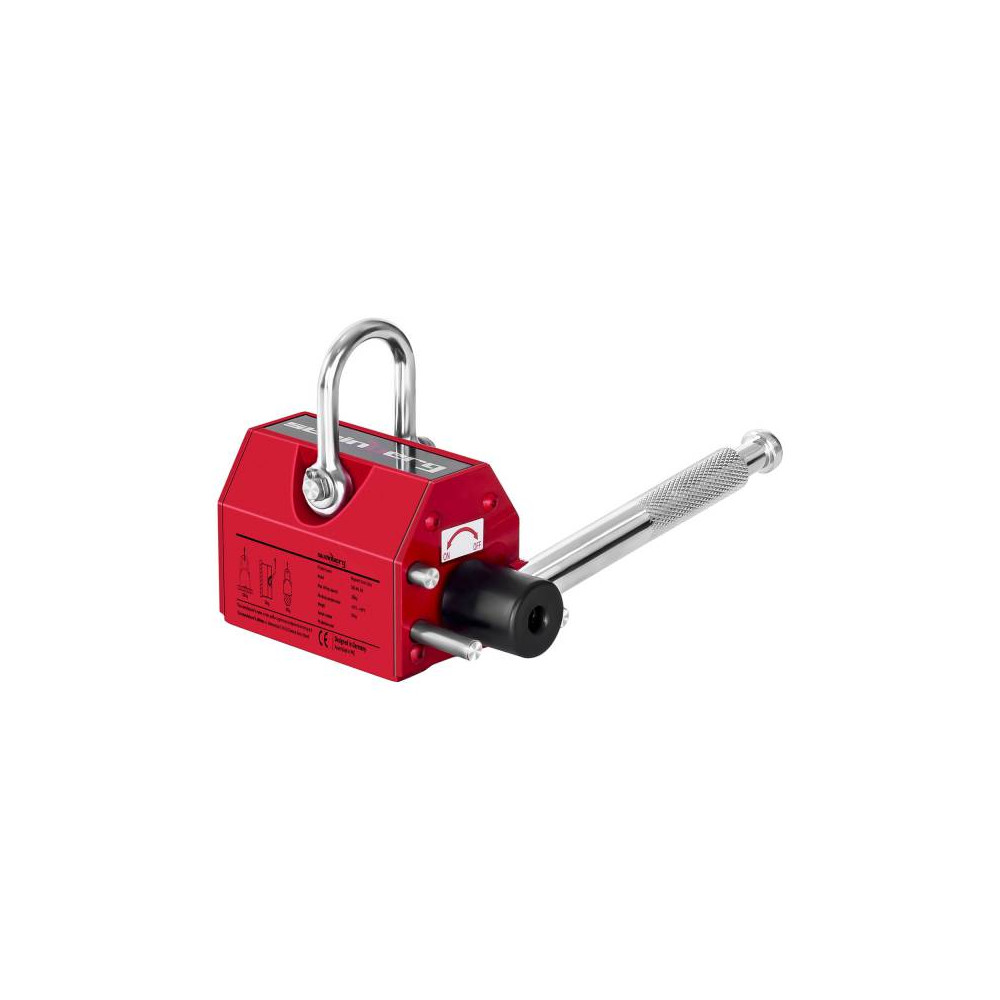

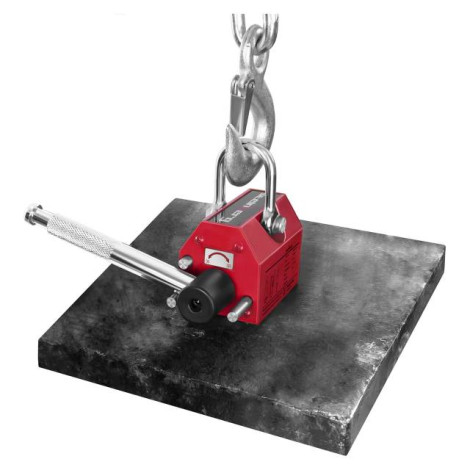

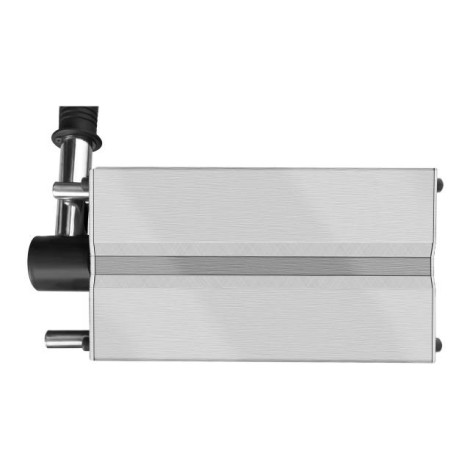

SBS-Ml 100 Magnetic lift SBS-Ml 100 Steinberg Systems Used to raise iron and steel objects. Ideally suited for the machine, metallurgical, shipbuilding industry as well as car workshops and construction companies.
Magnetic gripper allows you to lift
Sheet metal and profiled elements. Equipment uses
Neodymium magnets (sintered), making it very simple to use. In the middle of the lift, a fixed and movable magnet was placed, which actually set the magnetic field for the raised structure. Magnetic gripper SBS-Ml 100 is characterized by the safety of operation.
Needs no power sourcesThat does not generate costs. It is equipped with a sling for hanging equipment, eg on a crane.
Features and functions:- Neodymium magnets
- 100kg permissible load
- loading loading 300kg
- Safe and simple operation
- Manual lever
- zero costs of use
Technical parameters: - - Model - SBS-Ml 100
- - catalog number - 3201
- - article - New
- - Permissible load - 100 kg
- - breaking load - 300 kg
- - Max. Load for lifting vertical and rounded surfaces - 30 kg
- - Workplace range - from -40 to 80Deg C
- - Color - Red
- - shutdown mechanism - Mechanical lever
- - Dimensions (DXSXW) - 13 x 6 x 7 cm
- - weight - 2.9 kg
- - Dimensions of shipment (DXSXW) - 21 x 16 x 16.5 cm
- - shipping weight - 3.2 kg
Included:- Magnetic lift SBS-Ml 100
- EN statement
Our devices have a declaration of conformity necessary for sanepidu.
