Manufacturer number:

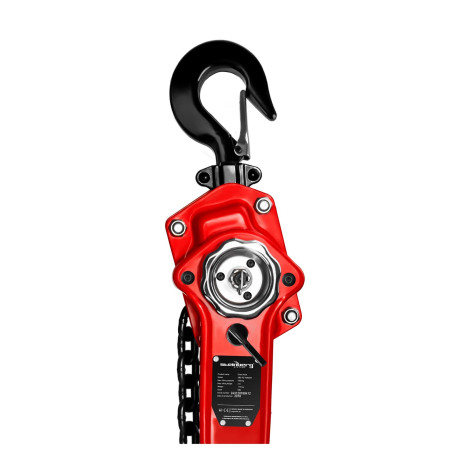

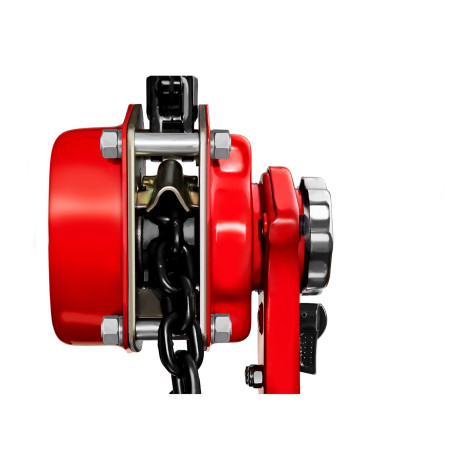

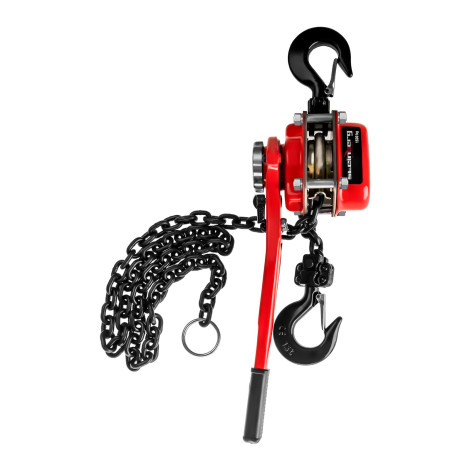

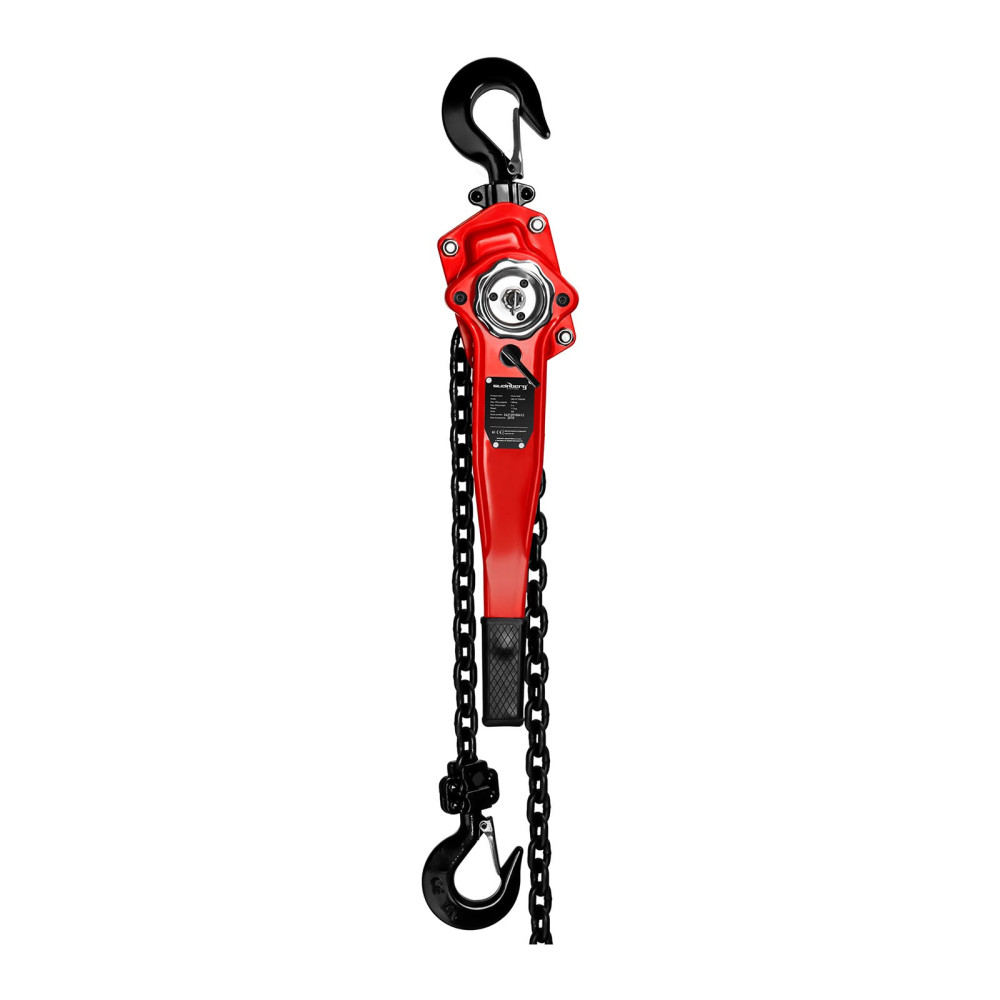

Steinberg Systems 10030378Chain winch German brand Steinberg Systems This is a versatile device that works perfectly in various production companies, mechanics plants, warehouses or construction sites. Its basic application is raising and lowering heavy objects.
A manual chain lift allows you to raise objects weighing 1500 kg even to a height of two meters. Due to durable chains (G80 type, 8 mm diameter) and make elements from high quality steel, work using the model SBS-FZ 1500 / 2M is very safe. This also affects the rubber end of the control bar and a lock that allows you to stop the load on the height indicated. In order to increase the user's convenience, the hoist has been
Equipped with two swivel hooks and a light gear Connected with a mechanism located inside the housing. It allows you to comfortable lifting and lowering the object.
Product features: - - Performance - the maximum lifting capacity of up to 1.5 t allows you to raise items to a height of 2 M,
- - Convenience - Control lever and lock that allows you to stop the winch,
- - Safety - Steel construction, high quality, two swivel hooks and lever with a non-slip handle.
Technical parameters: - - Model - SBS-FZ 1500 / 2M
- - catalog number - 10030378
- - article - New
- - Max. Lifting - 1500 kg
- - Material - Steel
- - Max. Lifting - 2 m
- - min. Distance between hooks - 380 mm
- - Required strength to raise the weight - 225 N
- - chain type - G80
- - Number of load-bearing chains - 1
- - Wed. Chain links - 8 mm
- - User manual - So
- - Dimensions (DXSXW) - 64.5 x 18 x 13.5 cm
- - weight - 11.8 kg
- - Dimensions of shipment (DXSXW) - 53.5 x 20 x 16.5 cm
- - shipping weight - 12.7 kg
Included:
